| Categories | Ultrasonic Sonochemistry |
|---|---|
| Brand Name: | Altrasonic |
| Model Number: | HS-S20-500 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 PCS per month |
| Delivery Time: | 15 days after receiving from the payment |
| Packaging Details: | Packed in wooden carton |
| Name: | Ultrasonic Sonochemistry |
| Frequency: | 20Khz |
| Power: | 500W |
| Weight: | 16Kg |
| Generator: | Digital Mode |
| Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying |
| Matetail of probe: | Titanium alloy |
| Max capacity: | More than 500ml/Min |
| Intensity of sound: | More than 10W/cm² |
| Origin: | China |

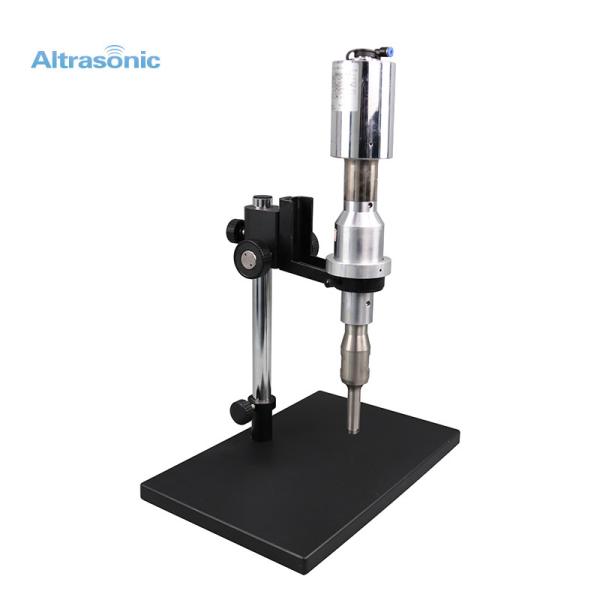

20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe
20kHz 500w Ultrasonic Liquid mixing device Homogenizer machine device
Description:
Ultrasonic homogenizer uses the cavitation and other physical
effects of ultrasonic waves in the liquid to achieve the
homogenization effect. The physical effect means that ultrasonic
waves can form effective agitation and flow in the liquid to
destroy the structure of the medium and pulverize the particles in
the liquid, mainly due to the collision between liquids, microphase
flow and shock waves.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | >10 W/cm² | >10 W/cm² | >10 W/cm² | >30 W/cm² | >40 W/cm² | >60 W/cm² |
| Max capacity | > 500ml/Min | > 2 L/Min | > 5L/Min | > 15L/Min | > 20L/Min | > 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasonic Homogenizeris the use of physical technology to produce a series of extreme
extreme conditions in the medium of chemical reaction. This energy
can not only stimulate or promote many chemical reactions, speed up
chemical reactions, but also change the direction of chemical
reactions and produce some effects. Ultrasonic homogenizer can be
applied to almost all chemical reactions, such as extraction and
separation, synthesis and degradation, biodiesel production,
treatment of microorganisms, degradation of toxic organic
pollutants, biodegradation treatment, biological cell crushing,
homogenization and agglomeration, powder Homogenization of
materials, emulsification of liquid materials, such as sufficient
stirring and homogenization of ink materials, so that the main
components of lithium batteries can be uniformly homogeneous into
the liquid medium, and so on.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search
frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is
increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial
applications.
Pictures:

|
