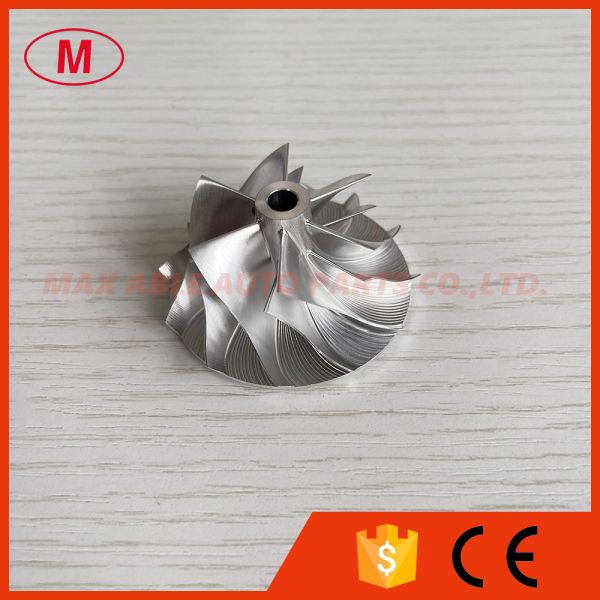

RHF4H 35.30/47.00mm 6+6 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for VIBR/VN3

1. MODEL:RHF4H forward

2. RHF4H 35.30/47.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VIBR/VN3
3.Size:

Nose diameter:9.36mm

inducer:35.30mm

exducer:47.00mm

Tapered tip exducer:50.35mm

Tip height:3.90mm

Superback:1.40mm

Overall height:24.20mm

Bore size:5.10mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

Splitter height:14.80mm

Sp height angle:-7.00

Blade height:20.30mm

6+6 BLADES

Forward rotation

It is for OE compressor housing .

Tapered tip angle:30 degree

4.High quality and competitive price.

5.Any questions please send email to me.we have other many sizes.

All the compressor wheel have been balanced.
