FT 330-29 466 Contitech Industrial Air Bags Triple Convoluted Springs Assembly For Paper Textile

FT 330-29 466 Contitech Industrial Air Bags Triple Convoluted Springs Assembly For Paper/Textile

Refer NO.

Specifications and Detailed Technical Parameters: 3B8027

• Nut/blind nut

Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 157.5 mm

The screw center distance of the bottom cover plate: 157.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPT

• Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 330mm

The Working Stroke: 117mm to 460mm

• Bumper block/bumper block

With bumper block

• Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

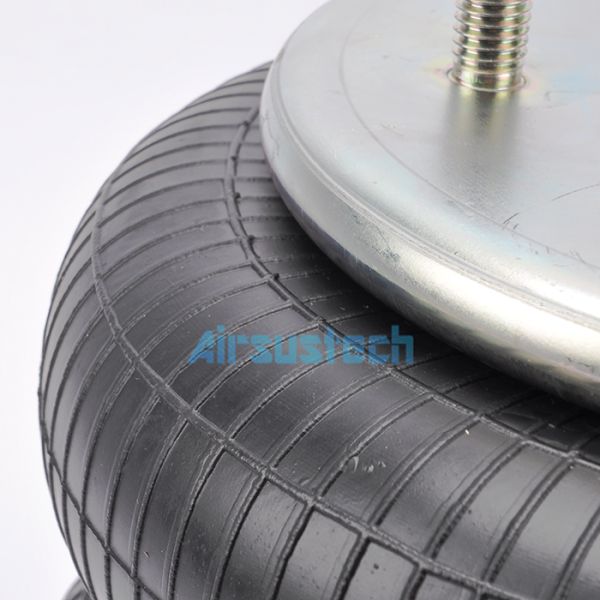

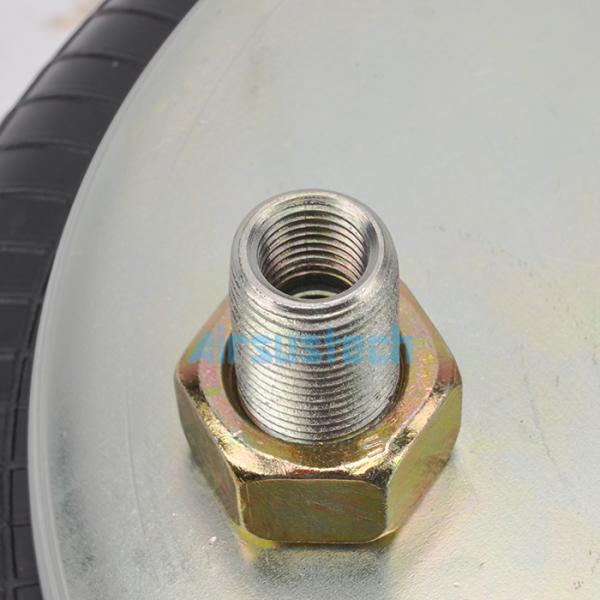

The related picture of 3B8027

The Application in papermaking/Textile industry

In papermaking, textile and other industries, paper or cloth in the winding process needs to bypass many transfer rollers at a high speed, so the transfer process requires constant tension, so as to avoid the paper or cloth loose, twisted or broken. In this case, the use of hollow roll combined with rubber air spring can provide constant tension, and has a strong ability to withstand impact load, protect the transmission device and transmission parts from damage.
