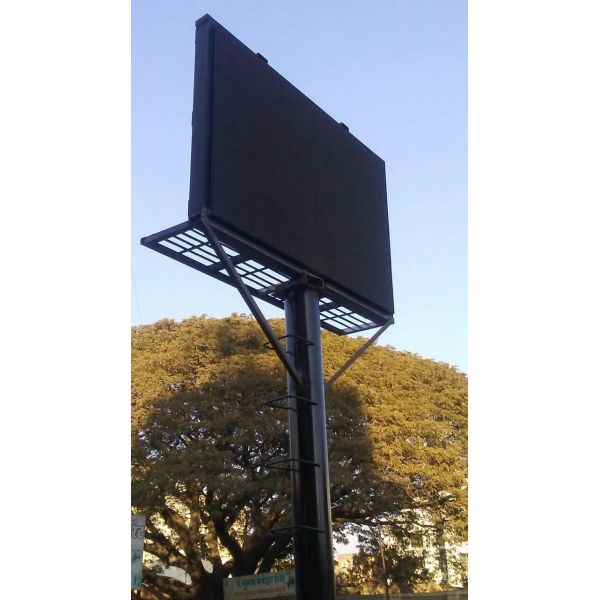

Column Mounted P10 HD LED Video Wall 960X960MM Iron Cabinet Outdoor LED Display

Categories Outdoor Full Color LED Display
Brand Name: SCXK
Model Number: SMD-P10
Certification: CB/CE/ROHS/FCC/ISO/UL
Place of Origin: CHINA
MOQ: 16 sqm
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5200 sqm month
Delivery Time: 7-16 working days
Packaging Details: wooden case,flight case,it is up to you.
Brightness: 8000
refresh rate: 3840hz
product name: outdoor waterproof p10 full color led screen
scan: 1/2
control: 4g,wifi,HDMI,usb
card brand: Novastar,linsn,HD,colorlight
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Column Mounted P10 HD LED Video Wall 960X960MM Iron Cabinet Outdoor LED Display

Product Description

1)Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.

2)Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.


3)Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.


♦ Technical specification


outdoor SMD P10
Resolution/mm10
Pixel configuration1R1G1B
Pixel density/pixels/m²10000/m²
Module resolution16x16
Module size/mm160x160
View distance4-250m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>8000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
Driving modeConstant driving current
Scanning mode(1/4)
Frame rate60Hz
Refresh frequency>3000Hz
Control modeComputer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃
Maximum power:/㎡<950W
Average power:/㎡<350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%

Our case


our service


1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
