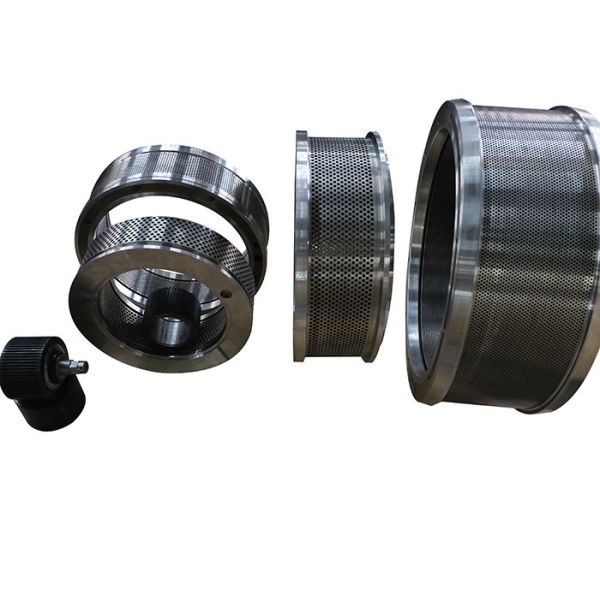

20CrMnTi 132kw Pellet Machine Die And Roller 180kg Pellet Press Die Set

Pellet Machine Pellet Die and Roller Customized Ring Die Manufacture

A good pellete die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of ring die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). % or more) and other aspects have a great impact.

The Ring Die raw material :

Alloy steel: 20CrMnTi. HRC:52-55

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13. HRC: 56-60

The raw material is first key in the quality of ring die ,X4Cr13(4Cr13) for exapmple :

its quality source must start from the steel ingot: the chemical composition of the 4Cr13 steel ring die (qualityFraction%) is: C content≤0.36~0.45, Cr content 12~14, Si content≤0.60, Mn content≤0.80, S Content ≤ 0.03, P content ≤ 0.035; in actual use, the Cr content is about 12%

Why us ?

1. Select quality forging stock, but general companies select casting stock
2. Use gun drill , the hole is completed by one time, nice appearance, high capacity
3. Use America vacuum oven and advanced treatment craft, ensure twice service life
4. Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product.

Generally Compression ratio :

Pellet die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..

Customized ring die accept :

Yulong Pellet machine ring die :XGJ850/560

For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
