Single Rubber Convoluted Air Spring W01-M58-6374 Firestone Air Bags For Reduce Shock

Single Rubber Convoluted Air Spring W01-M58-6374 Firestone Air Bags For Reduce Shock

OEM NO.

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B6374

• Nut/blind nut

Top plate screw (nut) teeth:2XM8×1.25

The screw center distance of the top cover plate: 89mm

Screw (nut) teeth of the bottom cover plate:2XM8×1.25

The screw center distance of the bottom cover plate: 89 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: G3/4

The screw center distance between the air hole and the nut: 38mm

• Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160 mm

• Bell rubber bellows

Rubber bellows diameter: 222 mm

Height: 110mm

• Bumper block/bumper block

No bumper block

• Belt loop/Belt loop

With belt loop: No belt loop

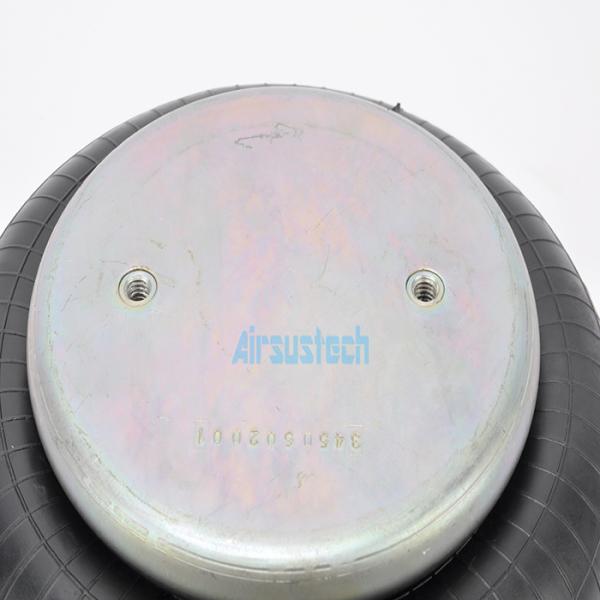

The related picture of 1B6374

Advantages:

Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.

Features: The 1B6374 can replace the W01-M58-6374. The air spring is designed to maximize the carrying capacity, ride quality and stability of each vehicle. Load support is provided by air pressure, which can be adjusted for each load.

High performance: The air spring is a powerful actuator that can operate in a linear or angular manner or be stacked to provide longer travel or greater angular rotation.

High driving flexibility: Air springs can be used as load bearing parts of air suspension systems in machines, cars and buses. As a result, the vehicle remains at a fixed height regardless of the load.

Low-cost: In most cases, the initial cost of Air Spring is about 50% lower than a more traditional pneumatic or hydraulic cylinder with the same force. The bigger the size, the more you can save.

Compact starting height: Compared with the traditional cylinder, the shape of the pneumatic actuator is smaller.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
