| Categories | Ingress Protection Test Equipment |
|---|---|
| Brand Name: | KINGPO |
| MOQ: | 1 |
| Certification: | calibration certificate |
| Place of Origin: | China |
| Price: | To be quoted |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 20 working days |
| Packaging Details: | safety wooden box |
| Model: | IPX7B |
| Outer size: | 960x960x1400mm |
| water tank inner size: | 900x900x1200mm |
| Max test depth: | 1.2m |
| chamber material: | Tempered glass |
| wall thickness: | 12mm |
| Company Info. |
| Dongguan Kingpo Technology Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.

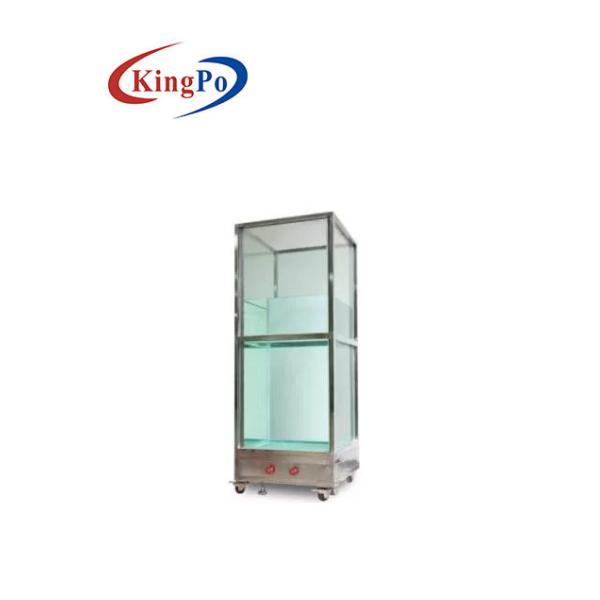

Application
It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment (water depth 1 meters). Through the test, check whether the product waterproof level meet the requirements, so that the product design, R&D and factory inspection use.
Features:
1. The 304 stainless steel frame is used to fix and support the tempered glass, increasing the rigidity of the test chamber.
2. Made of 5 pieces of 12mm thick tempered glass, the test situation is more clear and transparent, which is convenient for observation and test.
3. The test chamber allows a maximum water depth of 1.2 m, and the water level gauge is designed according to the height of the water tank, and the water level value is clear.
Parameters:
| Model | IPX7B |
| Outer size | 960x960x1400mm |
| Water tank inner size | 900x900x1200mm ( can be customized) |
| Maximum test depth | 1.2m |
| Material of chamber | Tempered glass, thickness 12mm |
| Water level display | Stainless steel ruler (accuracy 1mm), horizontal vision 15° |
| Water level adjustment method | Inlet / outlet valve, manually regulated |
|
