| Categories | gondola |
|---|---|
| Model Number: | ZLP630 / zlp800 |
| Certification: | ISO CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | FOB Tianjin 1700~2500 USD/SET |
| Payment Terms: | t/t l/c western union |
| Supply Ability: | 400sets/month |
| Delivery Time: | 7~10 days after receiving the deposit |
| Packaging Details: | Standard exporting package by plywood case,then steel pallet for container. |
| Size: | 3*2000/2500mm *690mm *1180mm |
| Rated Loading: | 630kg / 800kg |
| Working platform finished: | Hot galvanized steel / aluminum |
| Lifting height: | 100m |
| Hoist: | Ltd63 / LTD80 |
| Wire rope diameter: | 4*31sw-fc 8.3mm |
| Hoist Voltage: | 380v,415v,220v 50/60 Hz |
| Hoist motor: | 2*1.5kw 2*2.0kw |
| Warranty: | the whole suspended platform for one year |
| Certificate: | CE ISO |
High rise lifting gondola / ZLP630 STEEL Suspended rope platform / zlp800 suspended cradle
Suspended platform are designed and constructed in modular form,so it could be mounted in any size from 2m to 8m.
Welding of support structure is made of quality steel profiles
Connection of individual parts of structure is made with nuts and bolts in each unit.
Each platform is equipped with wheels for easy movement around construction sites.
Technical Parameters :
| Specifications | |||
| Type | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 630kg | 800kg | 1000kg |
| Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| Lifting height | 100m | 100m | 100m |
| Hoist | LTD63 | LTD80 | LTD80sdrive |
| Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.5kw*2 | 2kw*2 | 2.2kw*2 |
| Safety Lock | LS30 | LS30 | LS30 |
Electric Control Panel Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| Special Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |
Parts contains:
1. Platform(basket): hot galvanized steel / Aluminum

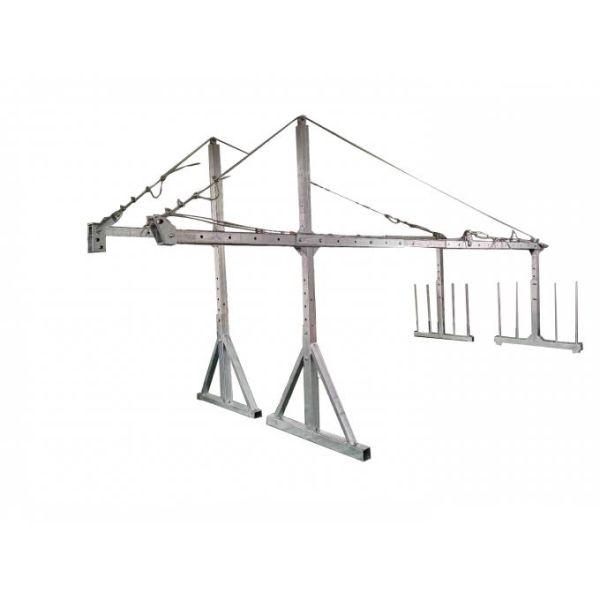

2. Suspension Mechanism: Hot galvanized steel
3. Electric hoists:LTD63
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement & Iron counterweight
9. Spare parts
Usage of Suspended platform
(1) Facade maintenance,paiting and cleaning of high building
(2) Window cleaning and installation
(3) Construction inspection and maintenance of big-size
tanks,chimneys ,dams, bridges
(4) Maintenance , cleaning ,painting of big ship
|
