Omh500 Agitator Motor For Schwing Concrete Pump Maintain Repair

Categories Hydraulic Piston Pump Parts
Brand Name: Elephant fluid power
Model Number: OMH500
Certifiion: ISO9001,CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000 Sets per month
Delivery Time: 30 days
Packaging Details: Carton or Wooden Box
Material: Cast iron
Appliion: Concrete Pump Truck Maintain Repair
Quality: 100% interchange with original
Standard: International standard
Delivery: 7-10 days
Waranty: 12 months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

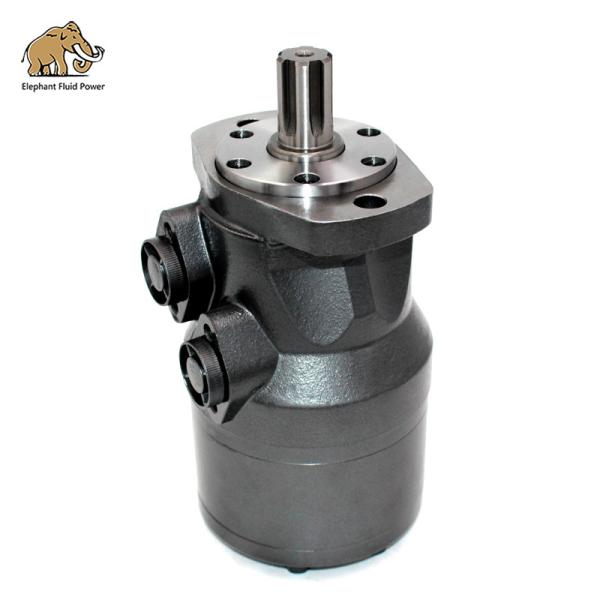

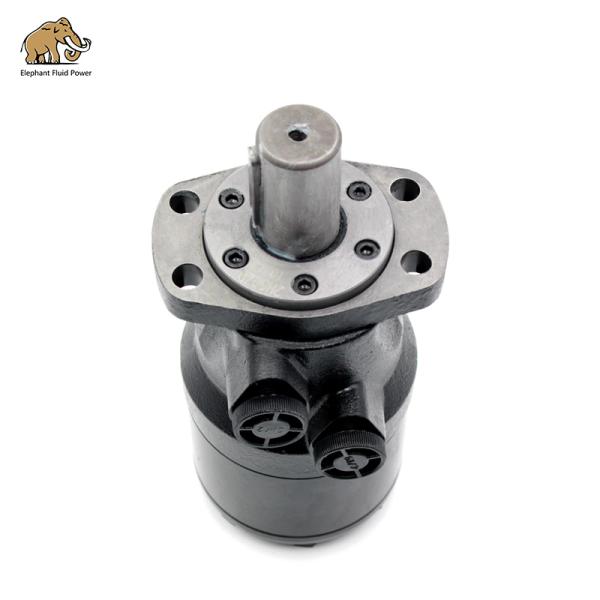

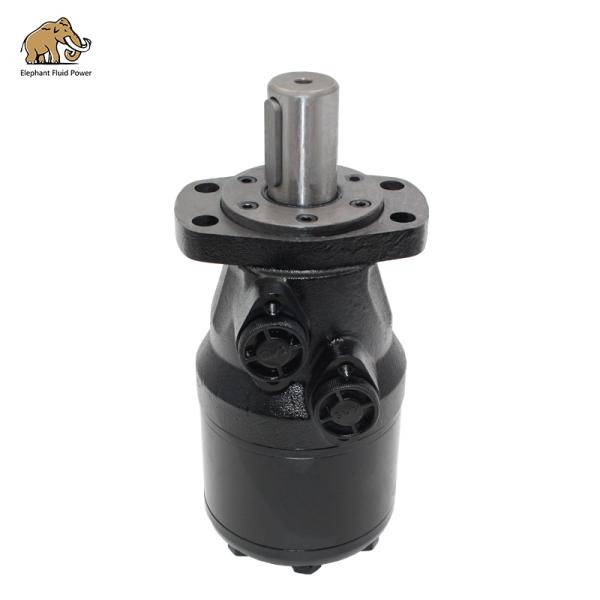

Omh500 Agitator Motor For Schwing Concrete Pump Maintain Repair

High Quality Hanjiu OMH500 Agitator Motor For Schwing Concrete Pump Maintain Repair


Elephant Fluid Power is the subsidary company of Hanjiu Hydraulic,we sell Hanjiu OMH 500 hydraulic motor for Schwing Concrete Pump Maintain Repair,we have same quality as Danfoss OMH500,good price,shortest prodcution,our brand has become a famous 4 brand among the world.


Characteristic features

1. OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

2. Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

3. Shaft seal can bear high pressure of back and the motor can be used in parallel or series.

4. Special design in the driver-linker and prolong operating life.

5. Special design for distribution system can meet the requirement of low noise of unit.

6. Compact volume and easy installation.


Specifiion

Type

OMH

200

OMH

250

OMH

315

OMH

400

OMH

500

Displacement

(cc/rev)

203.2255.9316.5406.4489.2

Max torque

(n.m)

cont510621740850830
int439348282220184

Max pressure

(mpa)

cont17.517.517.515.512.5
int2020201916

Max speed rate

(rpm)

cont366290236183155
int439348282220184

Max flow

(L/min)

cont7575757575
int9090909090

Weight(kg)


10.51111.512.313.0

Appliion

Low RPM Hydraulic Motor OMH Motors

1. Concrete Pump / Truck Mixers Spare Parts

2. Hydraulic Rotating

3. Hydraulic Wood Splitter

4. Engineering mining equipment


Elephant Fluid Power is loed in Lianmeng Street, Shijiazhuang City, Hebei, China. It is a professional manufacturer and seller of high-end hydraulic components. The company has strong strength and advanced equipment.

Our company has excellent testing equipment, including imported stator and rotor high-precision grinding machines, double-sided grinding machines from South Korea AM, machining centers produced by Taiwan Youjia and other companies, and CNC vertical lathes. The company is people-oriented, has gathered a group of senior technical personnel, has a professional and professional R & D team, and continues to carry out product design and development. The company currently produces more than 20,000 sets of hydraulic pumps per year.
Hydraulic piston pumps can be widely used in engineering machinery, agricultural machinery, road machinery, mining machinery, medical machinery, metallurgical machinery, ships, machine tools and many other fields.
After years of research and development, the products manufactured by the Elephant Fluid Power can becompatible with original parts and have exported to many countries and regions around the world, which are fully recognized by customers.
The company adheres to the principle of product quality pursuing perfection, finished product prices tending to the lowest, and service quality ensuring customer satisfaction. We will serve you wholeheartedly with the tenet of "using the best products and providing users with the best service"!
Bmh500 Omh500 Orbit Hydraulic Motor for Concrete Pump Putzmeister

Elephant Fluid Power has been in hydraulic line for more than 20 years,we are professional and we also work together with german technician,we have best quality in the world,we hope to develop together with our clients.


If you need hydraulic motors or other components,it will be your best choise to contact us.
