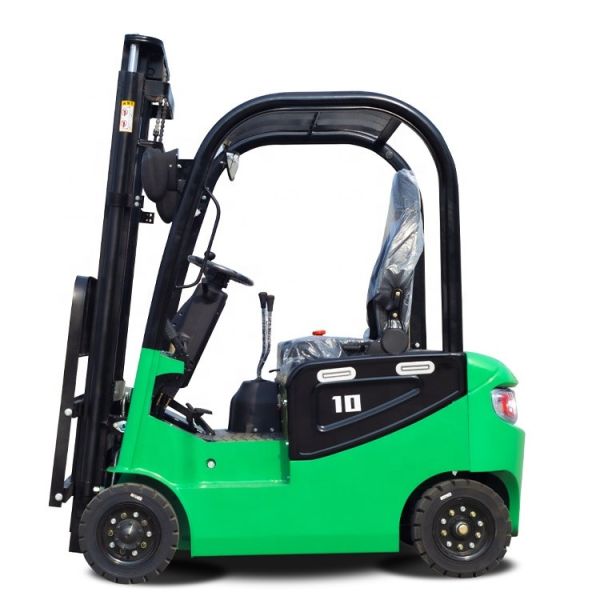

| Categories | Electric Forklift |
|---|---|
| Brand Name: | HORNQUIP |
| Model Number: | FB10 |
| Certification: | CE |
| Place of Origin: | China |
| Rated Load: | 1,000 kg |
| Dumping Height: | 3-6 meters |
| power mode: | lead-acid battery |
| Company Info. |
| Qingdao Hornquip Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Feature | UOM | ||
| Model | FB10 | ||
| driving mode | seated | ||
| rated capacity | Q | kg | 1000 |
| load center distance | C | mm | 500 |
| power mode | lead-acid battery | ||
| wheelbase | L1 | mm | 1200 |
| Tyre | |||
| tyre type | solid tyre | ||
| wheels number(front/rear) | 2/2 | ||
| front track | W3 | mm | 910 |
| rear track | W2 | mm | 865 |
| tyre(front) | 15X4 1/2-8 | ||
| tyre(rear) | 15X4 1/2-8 | ||
| Size | |||
| front overhang | L2 | mm | 308 |
| tilt of the mast,front/rear | α/β | ° | 5/10 |
| height,mast retraction | H1 | mm | 2017 |
| free lift height | H3 | mm | / |
| overall maximum lift height | H | mm | 3000 |
| height,mast extended | H2 | mm | 3957 |
| overhead guard height | H4 | mm | 1847 |
| lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 970/200 |
| fork size(LxWxT) | T*W*L4 | mm | 920*100*30 |
| truck body length(fork excluded) | L＇ | mm | 1870 |
| truck body width | W1 | mm | 1020 |
| turning radius | R | mm | 1900 |
| groubd clearance under mast | H5 | mm | 77 |
| Ground clearance at center of wheelbase(laden) | H6 | mm | 100 |
| width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | 3400 |
| width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | 3650 |
| Performance | |||
| travel speed,laden/unladen | km/h | 10/11 | |
| lifting speed,laden/unladen | mm/s | 220/230 | |
| lowering speed,laden/unladen | mm/s | 550 | |
| maximum negoniable gradient,laden/unladen | % | 15/20 | |
| Weight | |||
| service mass(with battery) | kg | 1570 | |
| battery voltage /nominal capacity | V/Ah | 60V/120Ah | |
| battery weight | kg | 180 | |
| Electrical configuration | |||
| drive motor power-60 minutes | kW | 5(PMSM) | |
| lift motor power-15 minutes | kW | 4.5(PMSM) | |
| drive motor controlling mode | MOSFET/PMSM | ||
| lifting motor controlling mode | MOSFET/PMSM | ||
| service brake/parking brake | Hydraulic/Mechanial | ||
|
