| Categories | Fuel Tank Truck |
|---|---|
| Brand Name: | howo |
| Model Number: | ZZ1257S4641W |
| Certification: | CCC,ISO |
| Place of Origin: | Jinan |
| MOQ: | 1 Unit |
| Price: | USD 40000-50000/Unit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Units Per Month |
| Delivery Time: | 30 Working Days |
| Packaging Details: | Nude,wax before shipping. |
| Name: | Howo 6x4 fuel tanker truck |
| Cab: | HW76 Cab,with one sleeper,with A/C |
| Engine: | WD615.47 371hp |
| Front axle: | HF9 9t |
| Drive axle: | HC16*2 16t*2 |
| Tanker: | 20000L |
| Company Info. |
| Jinan Heavy Truck Import & Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

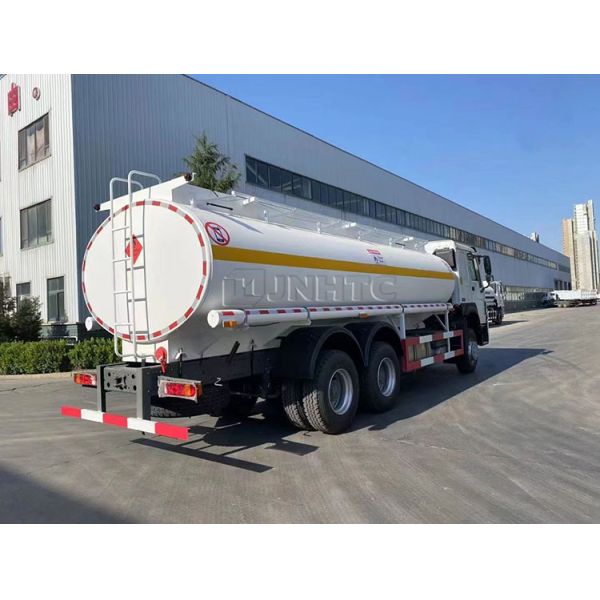

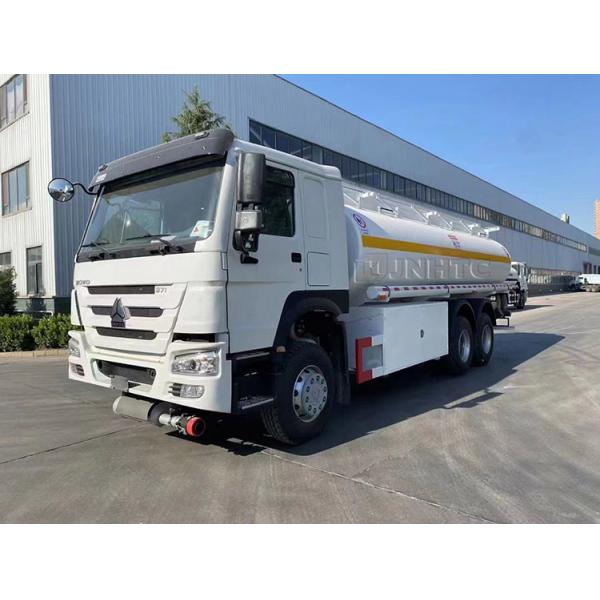

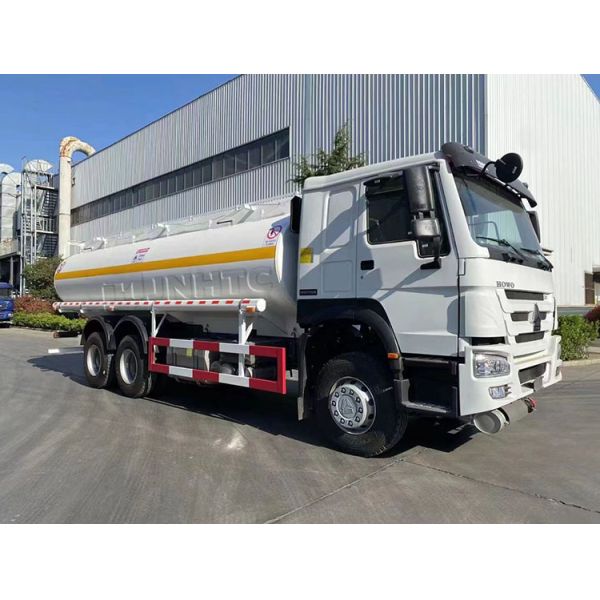

Sinotruk Howo 371hp 6x4 20000L Fuel Tanker Truck
Product Name | SINOTRUK HOWO 6X4 Fuel Tanker Truck |
Chassis Model | ZZ1267N4641W |
Driving Type | LHD (RHD is optional) |
Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper
system with three speeds, damped adjustable driver's seat, with
heating and ventilating system, exterior sun visor, safety belts,
adjustable steering wheel, air horn,air conditioner , with
transverse stabilizer, with 4-point support fully floating
suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power
assistance |
Front Axle | HF9,1x9000 KGS Steering with a doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub
reduction,with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling
flange |
Chassis | Frame: Uprofile parallel ladder frame with section of
300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 295/80R22.5, tubeless tyres with one spare tyre |
Fuel Tank | 300L |
Mixer Body | Tank Body: 20 Cubic Meters Compartments:2 With refueling machine |
Overall Dimension | 9000*2550*3360 mm |
|
