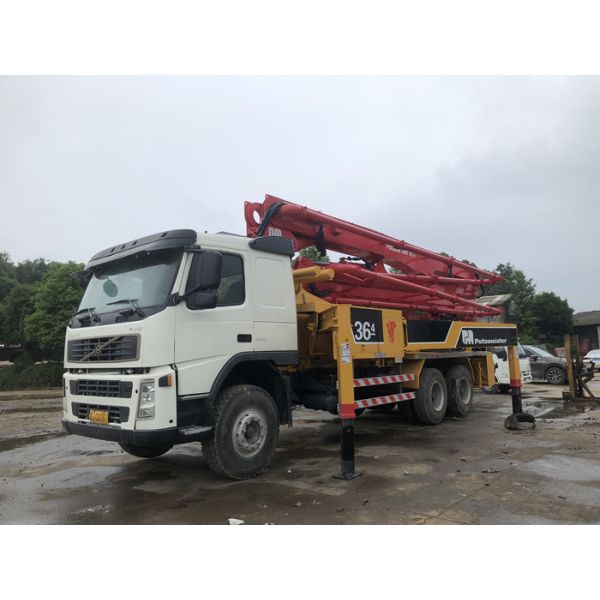

36m Concrete Pump Truck With Volvo Chassis

Contact Now

Add to Cart

Company Info.

ZHUZHOU BANGBO HUANYU IMPORT AND EXPORT CO.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Main Parameters

1. One Button Stabilization Technology

2. Boom Anti Vibration Technology

3. Anti Overswing Technology

4. Fault Self Diagnostic Technology

5. One Button Boom Extend/Retract

6. Boom Overload Protection Technology

36m Mobile Pump Truck Technical Specification
Items		Unit	Model of Whole Truck
Items		Unit	SG5267THB
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	90
	Pumping Capacity Index	Mpa.m3/h	360
	Theoretical Pumping Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1370
	Distributing Valve		S valve
	Max. Distributing Radius	m	32
	Max. Distributing Height	m	36
	Max. Distributing Depth	m	30
	Height of Distributing Boom When Stretched	mm	8450
	Distance between Front Landing Legs	mm	6507
	Distance between Rear Landing Legs	mm	6600
	Distance between Front and Rear Landing Legs	mm	7179
	Diameter of Conveying Pipe	mm	125
	Length of End Hose	m	4
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		4
	Rotary Angle of Each Boom Section	°	92/180/180/270
	Remote-control Distance	m	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	90
	Min. Turning Radius	mm	8800
	Brake Distance	m	7
	Approach Angle	°	16
	Departure Angle	°	11
	Chassis Model		Volvo
	Chassis Model		FM9 340
	Wheel Base between the First and the Second Axle	mm	4600
	Wheel Base between the Second and the Third Axle	mm	1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Max. Engine Power	kw	380HP (EURO IV)
	Max Engine Torque	n.m	1350 (1100-1600r/min)
	Max. Grade Ability	%	35
	Fuel Consumption Limit	L/100km	34
	Overall Dimension (L ×W× H)	mm	12154×2500×3970
	Full-load Total Weight	kg	25720

FAQ

Q:Why do you choose us?
A:we are the manufacturer,with 20 years experience.

Q:What is your Quality Control (QC)?
A:Third Control, ISO,CCC,CE Certificate ,European Certificate.

Q:How to visit your company?
A:Our factory is in Changsha city, Hunan Province.

Q:which countries did we export?
A: India, Bangladesh, Vietnam, Vietnam, and the Middle East, etc.

Q:Can you customize your products?
A:Yes, we will do the customization by requirement without affecting the quality of the products

Q:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.

Q:What's the payment method ?
A:We accept L/C, T/T and D/P payment.
