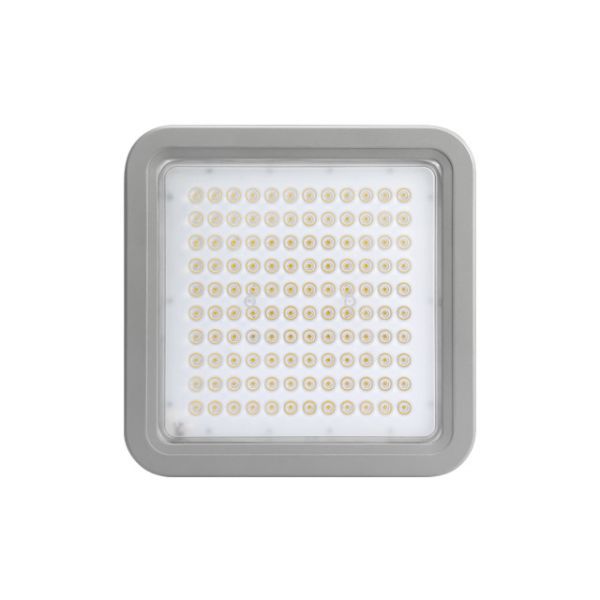

High Lumen 200w 140w Led High Mast Light Stadium

High Lumen 200w 140w Led High Mast Light Stadium

High Lumen 200w 140w Led High Mast Light Stadium
High Lumen 200w 140w Led High Mast Light Stadium
Categories LED Stadium Flood Light
Brand Name: Aina Lighting
Model Number: 300/380TG/FG
Certification: CE, ROHS
Place of Origin: Shanxi
MOQ: 50sets
Price: USD 104/pc-USD 157/pc
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 3000pcs/month
Delivery Time: 5-7 days
Packaging Details: Carton
Power: 80W/120W/140W/200W
Color Temperature(CCT): 3000/4000/5000/5700K/6500K
Input Voltage(v): AC100-240/277V
Lamp Body Material: Die-casting Aluminum
CRI (Ra>): 70/80(optional)
Warranty(year): 5 Years
Lamp Luminous Efficiency(lm/w): >130lm/W
Beam Angle: 30°/60°/80°/110°
Frequency: 50/60Hz
Item Type: Outdoor LED Flood Light
Led Light Source: High Power LED
IP Rating: IP65
Electri Safety Class: CLASS I
Power Factor: ＞0.95
Working Lifetime(hour): 100000H
Type: Sport Stadium Led Flood Light
Certificate: EMC, RoHS, ce, LVD
Contact Now
Company Info.
Aina Lighting Technologies (Shanghai) Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Lumen 200w 140w Led High Mast Light Stadium


Model No
AN300TFG
power
80W/120W
CCT
3000K-6500K
lumen Output(lm)
9600-10400,14400-15600,
Luminous Efficiency(lm/w)
120-130
CRI(Ra)
70
Inutput Voltage
AC100-240/277V
Frequency(Hz)
50/60
Power Factor
＞0.95
Power efficiency
90%-92%
Surge Protection
10KV
L80@55°
96.68% ,97.14%
Beam Angle(°)
30/60,110
Operation Temperature
-40℃-40℃
Humidity
0-90%
Lamp Size(mm)
300*300*261
Packing Size(mm)
700*350*340
Weight(kg)
5.3
Material
Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC
IP/IK
IP65/IK08
Warranty
5 years
Model No
AN 380TG
Power(w)
140W/200w
Color Temperature
3000K-6500K
Lumen Output(lm)
16800-18200,24000-26000
Luminous Efficiency(lm/w)
120-130
CRI(Ra)
70
Iutput Voltage(V)
100-240
Frequency(Hz)
50/60
Power Factor
＞0.95
Power Efficiency
88%-89% 88%-90% 88%-91%
Surge Protection
10KV
L80@55°
96.68%,97.14%
Beam Angle(°)
30/60/110
Operation Temperature
-40℃-40℃
Humidity
0-90%
Lamp Size(mm)
380*380*261
Packing Size(mm)
430*430*400
Weight(kg)
7.5
Material
Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC
IP/IK
IP65/IK08
Warranty
5years

Product Show



Feature


High lumen 140W 200W 5 years warranty high mast sports stadium flood light IP65
Optical Design, Anti-glare treatment.
High efficiency and energy saving

Distribution and applies a specially designed reflector that can be installed inside the fixture to realize different beam angles for achieving the various lighting distribution solutions of the luminaire.

AN300/380TFG LED High Mast Sports Stadium Flood Light

□ High Luminous Efficiency: up to 130lm/w;
□ Multiple options of beam angle to meet different application requirement: 30°, 60°, 80°, 110°;
□ External power supply(IP67), dimming function, and light control system can be added;
□ Low weight for easy mounting and maintenance,
120watt only 5.3kgs,200watt only 7.5kgs;
□ Adjustable U type bracket is easily for mounting.
Materials:

□ Housing: High-pressure die cast aluminum, first given a zinc chromate substrate, then finished in RAL7035 light grey polyester
powder coating for optimum protection against harsh environments
□ Front Glass(if any): Toughened glass, secured within an aluminum frame.
□ Bracket: Galvanized steel, with additional locking screws.
□ LENs(for some beam angles): Plastic.
□ LEDs: Samsung/Osram LED chips with LM80 in TM21 test report.
□ Driver: MOSO brand LED Driver with CE and TUV approval certificates.

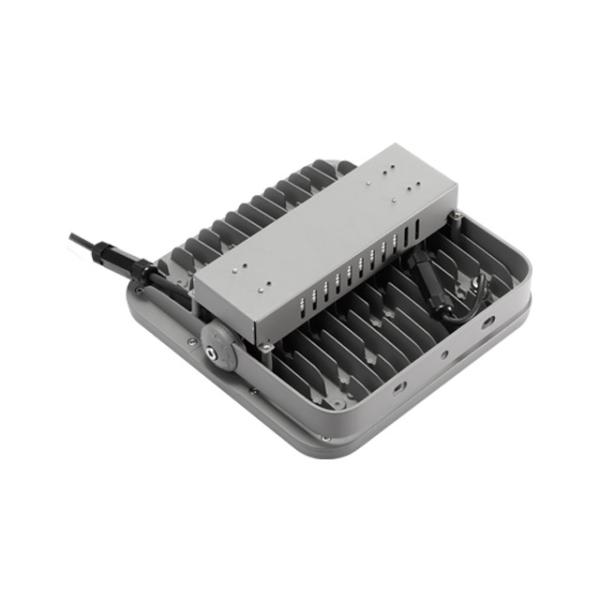

Advanced Modular Aluminum Heat Sink
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range
PC Optical Lenses
• PC Material with High UV and Impact Resistance
• Multi Beam Angle Options
• High Transparency and High Efficiency

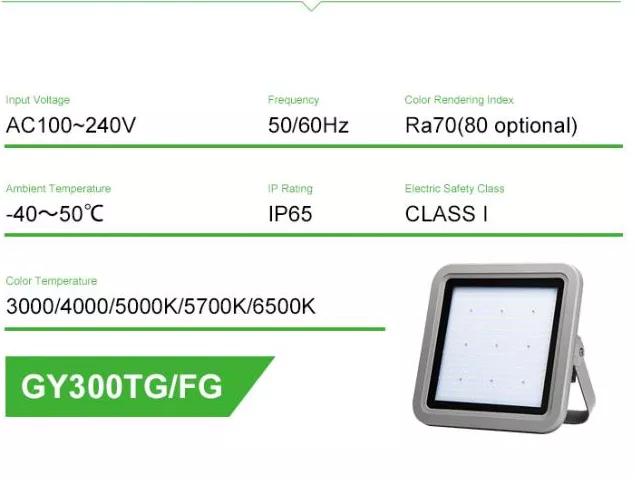

You can use our GY300/380FG LED flood light to replace your incandescent or fluorescent fixture and save up to 80% of your energy bill.
Once you install this light there will be free maintenance and 50000hrs lifespan.

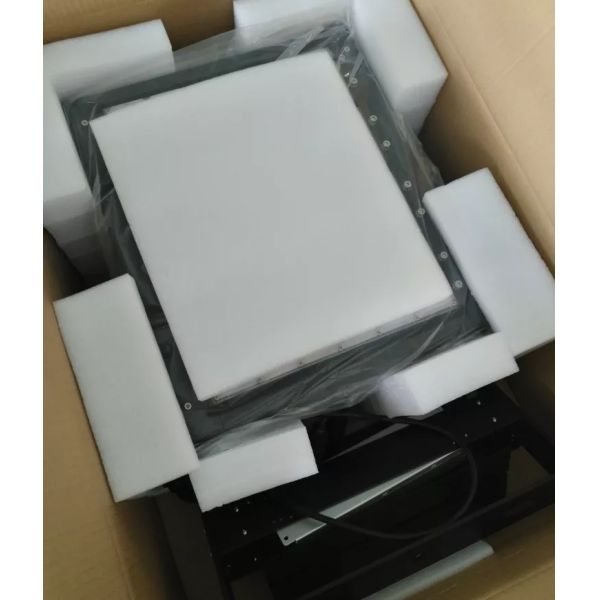

Packing
With years of export experience along with ex
cellent quality, advanced services and competitive prices, Gunagyu Lighting has won numerous customers' trust and support.

Shipment

Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
Company Introduction
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
After sales service

1. We will not refund without reason.
2. If some items are damaged during delivery due to some objective reasons, we will not refund in full. But we can accept a partial refund to compensate the damaged part.
3. If the product has quality problems, you can take pictures and videos for us. When we confirm, we will provide you with a satisfactory solution and return the damaged parts
4. If imitating a big brand product, please do not compare its quality with the original product. Because price determines quality.
FAQ
Q: How to find us?
A: WhatsApp / Viber: +86 15989493560 or WeChat: 15989493560

Q: Are you factory?
A: Yes, Our factory is Aina lighting.

Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check. The samples fee you paid will be return to you when there is formal orders step by step.

Q: How can I get your price?
A: We will send you quotation within 24 hours after getting your inquiry. If you need price urgent, you can find us any time by WhatsApp or WeChat or Viber

Q: What is your delivery time
A: For samples, normally will take around 5 days. For Normal order will be around 10-15 days

Q: What about the trade terms?
A: We accept EXW, FOB Shenzhen or Shanghai, DDU or DDP. You can choose the way which is the most convenient or cost effective for
you.

Q: Can you add our logo on the products?
A: Yes, we can offer service of adding customers’ logo.

Q: Why Choose us?
A: We have three factories in different places focusing one different type of lights. We can offer more lighting choices for you.
We have different sales office, can offer you more Awesome services.
