Double Convoluted Gas Suspension Air Spring 115mm Stroke Air Bellow For Industrial Equipment

115mm Stroke Air Bellow Double Convoluted Gas Suspension Air Spring For Industrial Equipment

Product Description

GUOMAT Number:2BM31062

Reference Number:M31026 M/31026

Medium:Compressed Air

Operation:Single acting

Technical Details

Rubber Bellow Diameter :175mm

Top Cover Plate Diameter:153.5mm

Diameter Between Bolt(Stud) On Top:127mm

Bottom Cover Plate Diameter:153.5mm

Diameter Between Bolt(Stud) On Bottom:127mm

The Woring Stroke:75mm~190mm

Maximum Height:190mm

Minimum Height:75mm

Compressed Height:115mm

Bolt(Stud) On Top Cover Plate:4 PCS X M10

Bolt(Stud) On Bottom Cover Plate:4 PCS X M10

Bolt(Stud):M10=25Nm

Air Inlet/Gas Hole:G1/2=25Nm

Operating Pressure:0~8 bar

Operating Temperature:-40℃~70℃

2BM31062 Technical Parameters

Vibration Isolation Applications - Dynamic Eigenvalues

Design Height H :155mm , Min 145mm

Pneumatic Applications - Static Eigenvalues

Load ［KN］

Characteristics of 2BM31062 Double Convoluted Air Spring

• Frictionless Operation
• Great Vibration Isolation Effect
• Ideal For Short Stroke,High Force Applications
• No Maintenance Or Lubrication Required
• Can be Easy Installation

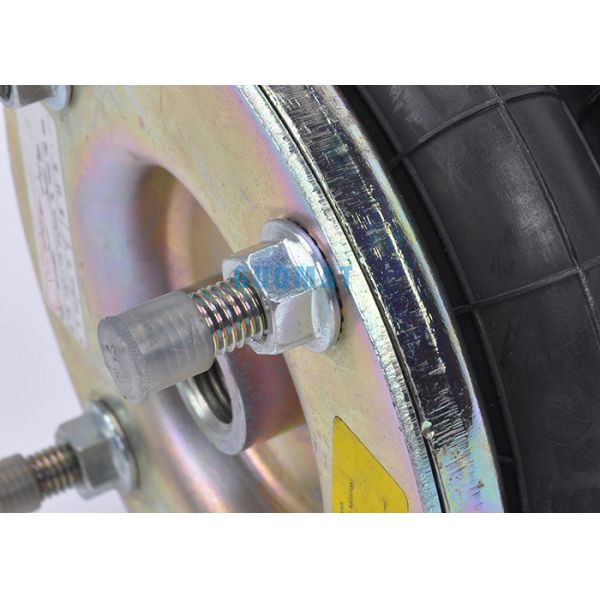

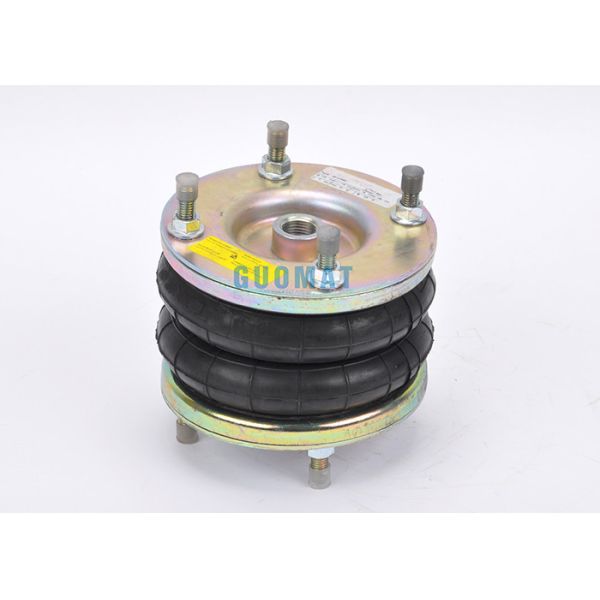

Product Image
