Plastic Bucket Industrial Blow Molding Machine Extrusion Fully Automatic

Plastic Bucket Industrial Blow Molding Machine Extrusion Fully Automatic

Plastic Bucket Industrial Blow Molding Machine Extrusion Fully Automatic
Plastic Bucket Industrial Blow Molding Machine Extrusion Fully Automatic
Categories Extrusion Blow Molding Machine
Place of Origin: JIANGSU, CHINA
Brand Name: TONGDA
Packaging Details: PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability: 800sets/year
Price: $89,999.00/Sets >=1 Sets
Certification: CE, ISO9001
MOQ: 1SET
Delivery Time: 28 working days
Payment Terms: T/T, L/C, D/P, West Union
Model Number: TDB-80F
Dimension(L*W*H): 5.42*2.45*3.9m
Hollow part volume: Up to 120L
Clamping Force (kN): 440KN
PLC Brand: MITSUBISHI
Screw L/D Ratio: 25
Screw diameter (mm): 90 mm
Output: 200 kg/h
Accumulator Capacity(L): 12.8 L
Contact Now
Company Info.
Suzhou Tongda Machinery Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plastic Bucket Industrial Blow Molding Machine Extrusion Fully Automatic

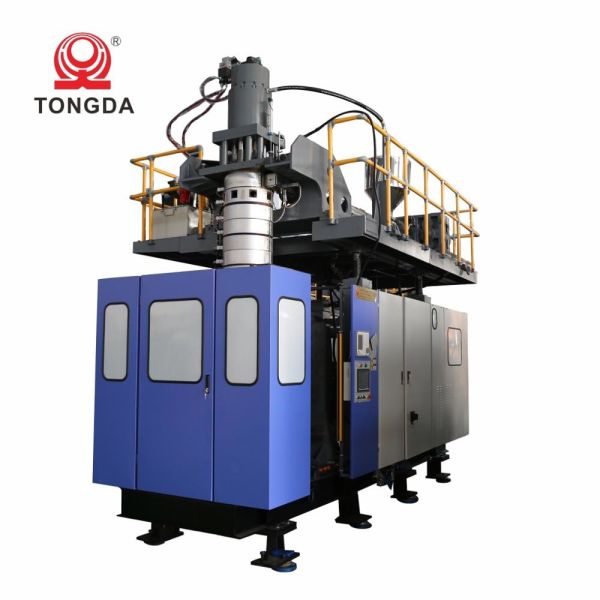

TONGDA TDB-80F Fully Automatic Extrusion Industrial Plastic Bucket Barrel Making Equipment Blow Molding Machine

Product Description


This TDB-80F machine is our most classic and most hot sale series machine, with wide application.
Suitable for size up to 120L HDPE/PP plastic containers production, and other products like big ice box, dustin bins, cooler outer body, stool board, table board, chair board, plastic tool box, etc.
We use accumulator type die head for this series machine. Servo motor for the plasticizing system will save a lot energy after the filling is finished, and the product is in shaping period.
Servo motors for the hydraulic system not only save energy, also with quick response.

Technical Parameters


MODEL
Units
TDB-80F
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
80
Output of HDPE
kg/h
180
Clamping force
kn
440
Screw diametre
mm
100
Screw heating power
kw
21
Blow pressure
mpa
0.6
Size of machine
m
5.42*2.45*3.9

Product Details

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.


Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable

Company Information


Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.



From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.


After-sales Service

Arrange engineer to customer's factory and supply the after-sales online service 24 hours

Why Choose Us


Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ


TONGDATONGDA sales consultant

  • Energy consumption calculation and investment income analysis can be provided.
  • Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.

Advantages of TONGDA tech teams

  • Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
  • Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
