2 Ports Fiber Optic Wall Plate Desk Mounted FTTH Face Plate Fire Retardant UL94V0

Categories Fiber Optic Termination Box
Brand Name: Takfly
Model Number: TKS-1806-02E
Certification: CE,RoHS,FCC
Place of Origin: China
MOQ: 10pcs
Price: USD 0.4 ~ USD 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000pcs/week
Delivery Time: 2-5 working days
Packaging Details: bag/box + carton
Material: ABS / ABS+PC
Adapter: 2 SC SX / 2 LC DX
Port: 1 / 2
Color: White
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 Ports Fiber Optic Wall Plate Desk Mounted FTTH Face Plate Fire Retardant UL94V0

2 Ports Fiber Optic Wall Plate FTTH Rosette, 2Port Optical Socket Desk Mounted FTTH Face Plate Fire Retardant UL94V0

Description:
Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internalspace. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.

Feature:

1. Small size and light weight for easy installation compact body.
2. Water-proof design.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Saving space: Double-layer design for easier installation and maintenances:
6. Lower layer for splicing .
7. Upper layer for cross-connecting and fiber distribution.
8. Fully stable adapter panel, no risk of movement.
9. Lock provided for extra security.
10. Fiber can get in from bottom or side

Application:
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
ItemTechnical data
Application3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter125μm ( G652D, G657A1, G657A2, G657B3 )
Tight cladding diameter250μm & 900μm
Mode of applicationSinglemode & Multimode
Tensile strength>50 N
End-use temperature-40~+85ºC
AdaptorSC & LC
Insertion loss≤0.2dB(1310nm & 1550nm)
output2


Configuration table:

ModelSize (mm)Max Capacity
SCLC
TKS-1806-02E102*80*25.524

Sample:
Free sample is available for quality evaluation.


Minimum of order: 10pcs

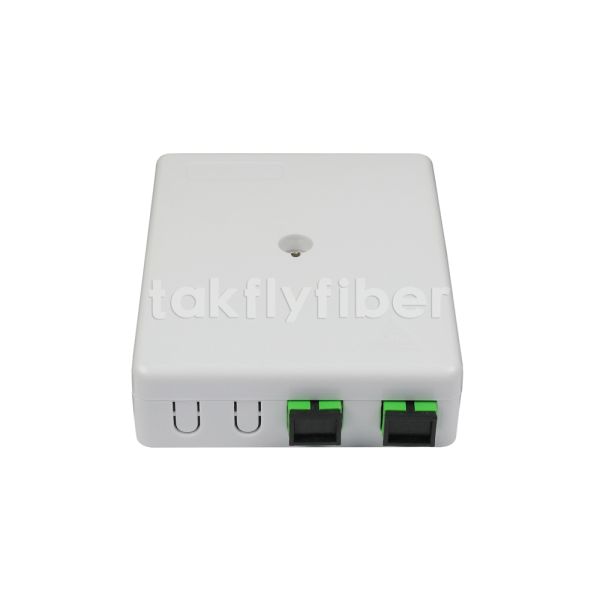

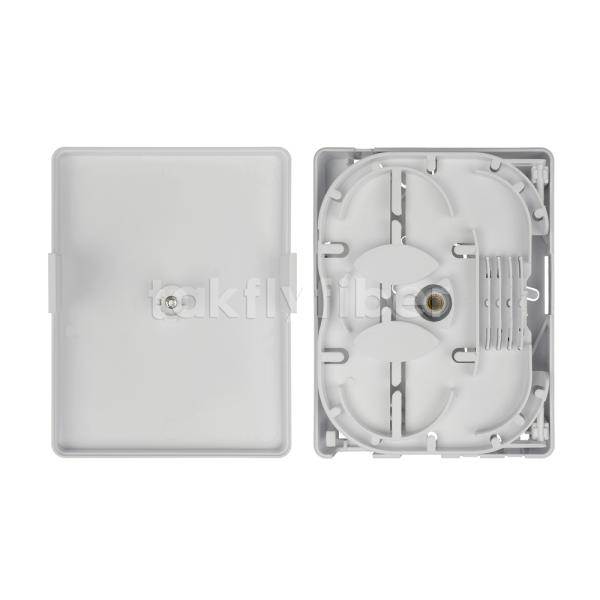

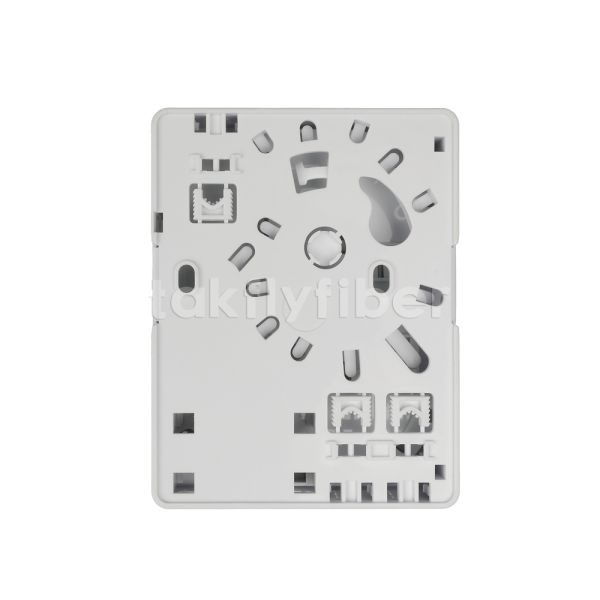

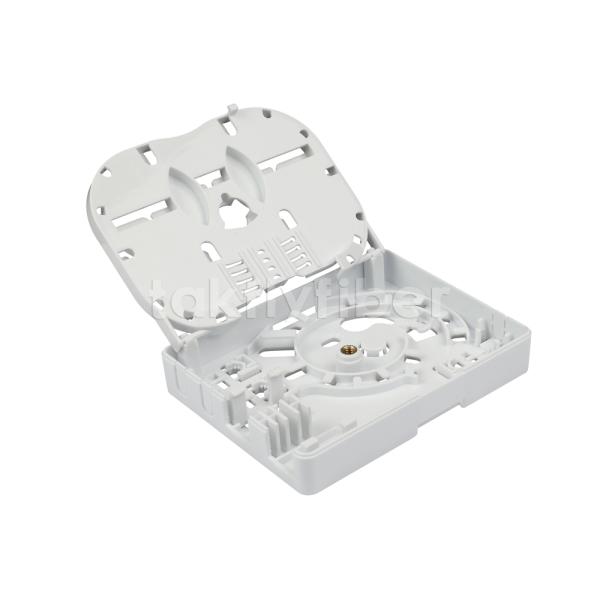

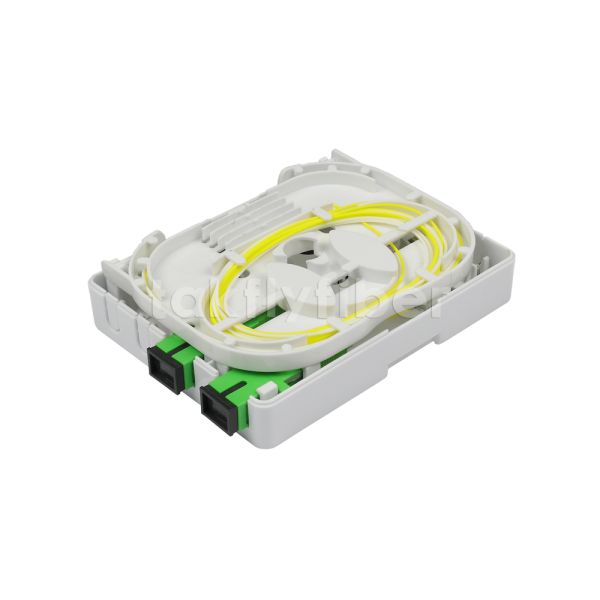

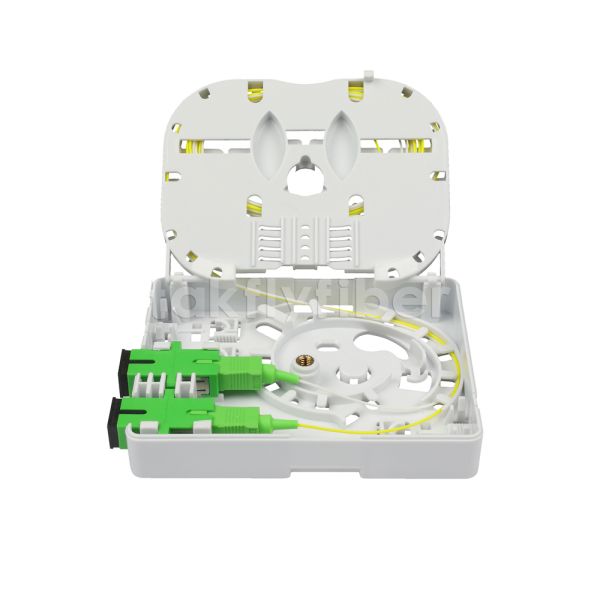

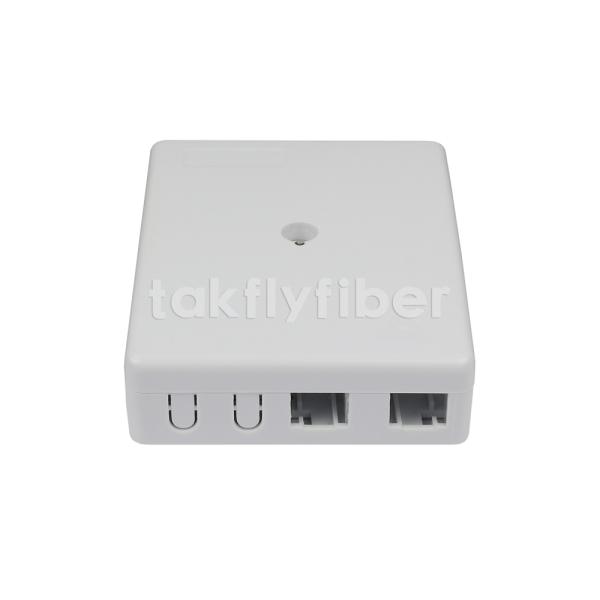

Pictures:
