| Categories | Silicone Coated Release Liner |
|---|---|
| Brand Name: | UPASS |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | TT/LC |
| Supply Ability: | 600 Tons/Month |
| Delivery Time: | Negotiable |
| Packaging Details: | Wooden Pallet |

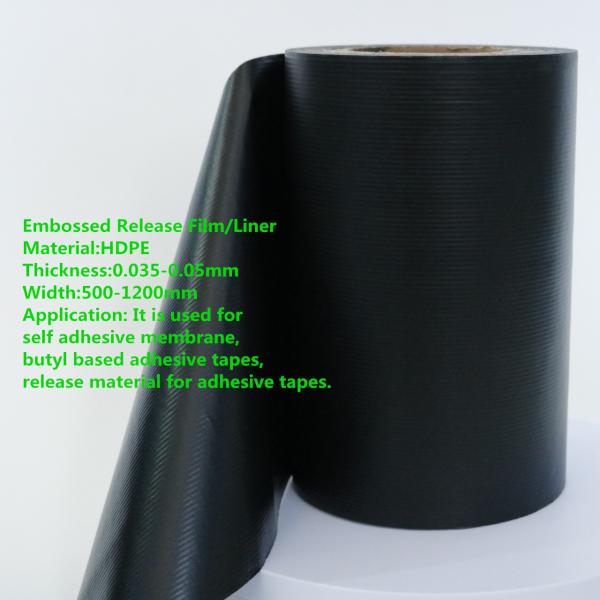

| Product Name: | HDPE Film Embossed Silicone Coated Release Liner |
| Material: | High Density Polyethylene (HDPE) |
| Thickness: | 0.03-0.4mm |
| Width: | 100-2000mm |
| Application: | Used for waterproofing membranes, adhesive tapes,etc. |
| Color: | Black, Grey, White, Blue, Green, etc. |
| Performance: | Embossed |
| Process: | co-extrusion blown |
| Company Info. |
| Upass Material Technology (Shanghai) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
It is made of HDPE (High density polyethylene) and by successive
procedure of co-extrusion
blown process, silicone oil coating that enables to possess release
effectiveness.
With adoption of special technique, PE release film is embossed
with regular corrugated
stripes at machine direction.
Parameter:
| Products Name | HDPE film | Spec. | 0.1mm*920mm | ||
| Detection Methed | Q/TPXP 1-2013 | Date | 2020.7.2 | ||
| NO. | Item | Factory Requirement | Detection Value | Detection | |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified | |
| 2 | Spec. | Width | 920±10mm | 922 | Qualified |
| Thickness | 0.1±0.005mm | 0.102 | Qualified | ||
| 3 | Max.F (N/50mm) | TD (CD) | ≥150 | 204 | Qualified |
| MD | ≥150 | 212 | Qualified | ||
| 4 | Elongation (%) | TD (CD) | ≥200 | 1155 | Qualified |
| MD | ≥200 | 968 | Qualified | ||
| 5 | Tensile Strength | TD (CD) | ≥18 | 21 | Qualified |
| MD | ≥22 | 25 | Qualified | ||
Classification:
According to the material:
1. PE Release Films (HDPE or LDPE);
2. PP Release Films (MOPP,BOPP,PP);
3. PET Release Films;
4. Paper Release Films (GLASSINE,PE coated)
According to the coating type:
1. UV curing type;
2. Thermal curing type.
According to the oil:
1. Solvent type;
2. Solvent less type;
3. None-Silicone type
According to the coating sides:
1. Single sided silicon coating;
2. Double sided silicon coating.
corrugated Type:
Square Type:
|
