| Categories | Low Voltage Power Cables |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Model Number: | Automotive Cable |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Place of Origin: | China |
| MOQ: | 20 KM |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Delivery Time: | 25 working days |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Conductor: | Annealed stranded copper |
| Insulation: | Cross-Linked Polyethylene |
| Shield: | Tin coated annealed copper |
| Sheath: | Polyvinyl Chloride |
| Standard Compliance: | JASO D608; HMC ES SPEC |
| Technical Parameters: | Operating temperature:–40°C to +120 °C |
| Company Info. |
| HANGZHOU ZION COMMUNICATION CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

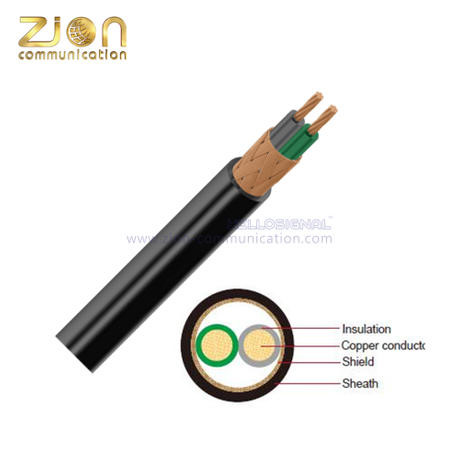

| AEX-BS Automotive Cable | ||||||||
| Product Description: | ||||||||
| Conductor | Annealed stranded copper | |||||||
| Insulation | Cross-Linked Polyethylene | |||||||
| Shield | Tin coated annealed copper | |||||||
| Sheath | Polyvinyl Chloride | |||||||
| Standard Compliance | JASO D608; HMC ES SPEC | |||||||
| Technical Parameters | Operating temperature:–40°C to +120 °C | |||||||
| Application: | ||||||||
| This XLPE insulated cable is used in low voltage signal circuits in automobiles. superior heat resistance with irradiated PE. Suitable for the consideration or the shielding characteristic. | ||||||||
 | ||||||||
| Zion's Hot Types of AEX-BS Automotive cable | ||||||||
| Conductor | Insulation | Cable | ||||||
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical resistance at 20°C max. | Thickness Wallnom. | Overall Diameter Min. | Overall Diameter max. | Weight approx. | |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
| 0.5f | 20/0.18 | 1.00 | 0.04 | 0.60 | 4.00 | 4.20 | 25.00 | |
| 0.85f | 34/0.18 | 1.20 | 0.02 | 0.60 | 7.00 | 7.20 | 62.00 | |
| 1.25f | 50/0.18 | 1.50 | 0.02 | 0.60 | 4.50 | 4.70 | 40.00 | |
| *Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
|
