PVC Insulation CAVS Automotive Cable JASO D 611-94

Categories	Low Voltage Power Cables
Brand Name:	Zion communication OR OEM
Model Number:	Automotive Cable
Certification:	CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin:	China
MOQ:	20 KM
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month
Delivery Time:	25 working days
Packaging Details:	100M, 200M, Roll, Carton
Conductor:	Cu-ETP1 or bare according to DIN EN 13602
Insulation:	PVC
Standard Compliance:	JASO D 611-94
Technical Parameters:	Operating temperature:–40 °C to +80 °C

Contact Now

Add to Cart

Company Info.

HANGZHOU ZION COMMUNICATION CO., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

CAVS Automotive Cable
Product Description:

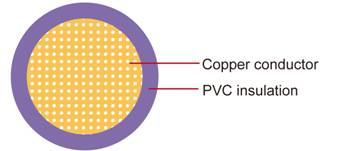

Conductor			Cu-ETP1 according to JIS C 3102
Insulation			PVC
Standard Compliance			JASO D 611-94
Technical Parameters			Operating temperature:–40°C to +80 °C
Application:
Automotive PVC insulated single-core low tension cable is used for automotive wiring.

Zion's Hot Types of CAVS Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.		Electrical resistance at 20°C max.	Thickness Wallnom.	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
1 x0.30	7/0.26	0.70		50.20	0.35	1.40	1.50	3.00
1 x0.50	7/0.32	0.90		32.70	0.35	1.60	1.70	5.00
1 x0.85	11/0.32	1.10		20.80	0.35	1.80	1.90	7.00
1 x1.25	16/0.32	1.40		14.30	0.35	2.10	2.20	10.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
