Sumitomo CX460 CX470 SH460 Excavator Swing Gearbox SH460HD-5

Categories Excavator Swing Gearbox
Brand Name: TGFQ
Model Number: SH460 CX460
Place of Origin: Guangzhou China
MOQ: 1
Price: 200.00-800.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Sumitomo Swing Reduction
Model: SH460 CX460
Part Number: KTC10150 / KTC10240R / KTC10240C / KTC0185
MOQ: 1 Piece
Applicable Industries: Machinery Repair Shops, Energy & Mining
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

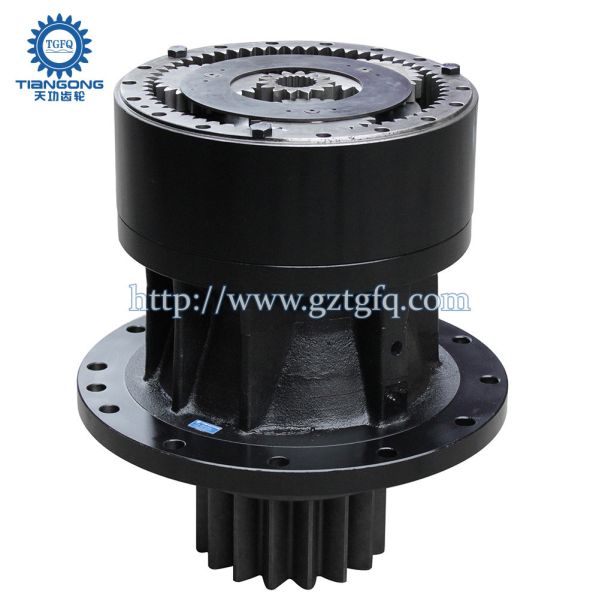

Sumitomo CX460 CX470 SH460 Excavator Swing Gearbox SH460HD-5

SUMITOMO Excavator Slewing Gearbox Reduction TGFQ SH280 Swing Gearbox

Quick Details

Model: SH460 CX460
Brand: TGFQ
Part Name: Swing Reduction
Part Number: KTC10150 / KTC10240R / KTC10240C / KTC0185
Process: Heat Treatment
Delivery Methods: By Air / By Express / By Sea

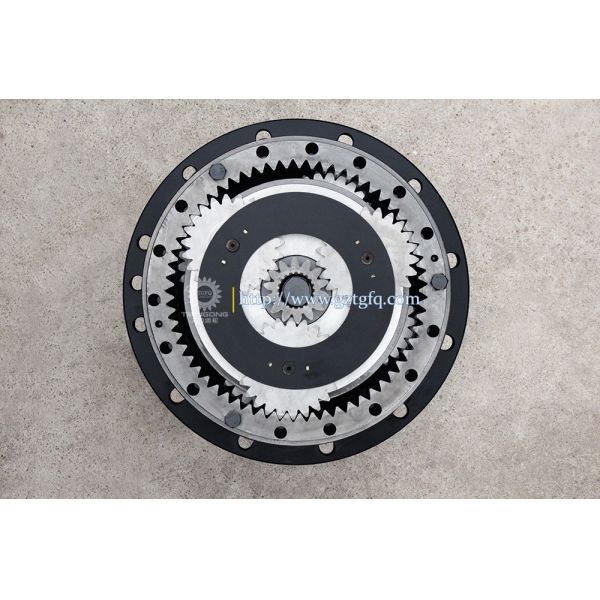

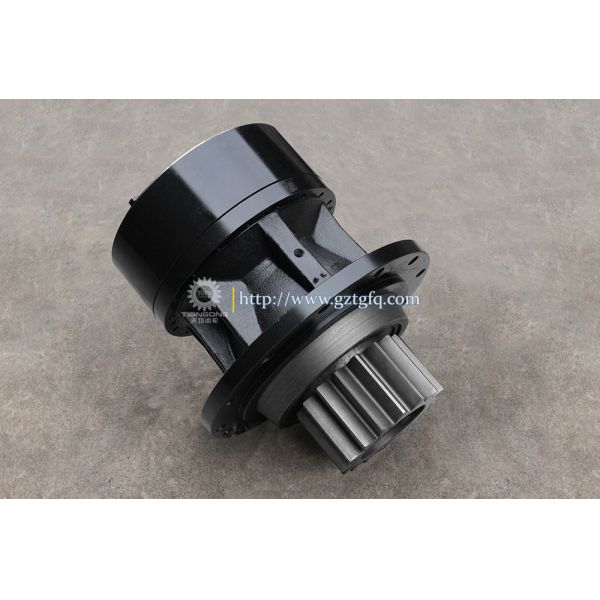

Product Photo:

Drawing:

Parts on group (CX470C) - CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-7/16):

Pos.Part NoQtyParts nameComments
1KTC0171[1]MOTOR, HYDRAULICSUM
1KTC0171R[1]REMAN-HYD MOTORRAC CX470C CRAWLER EXCAVATOR, TIER 4 (NA) (9/11-)
1KTC0171C[1]CORE-MOTOR HYDRAULICRAC Return Number
3KTC10150[1]GEAR REDUCTION UNITSUM Superseded by part number: KTC10240
3KTC10240R[1]REMAN-REDUCTION UNITRAC CX470C CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-), Reman for New PN KTC10150
3KTC10240C[1]CORE-REDUCTION UNITRAC Return Number
4KTC10070[1]SUN GEARSUM (NO 1)
5KTC10090[1]SHAFT, PLANETARY CARSUM CARRIER, PLANETARY, NO 1, Incl 6 - 10
6NSS[1]NOT SOLD SEPARATCON CARRIER, PINION, PLANETARY NO 1
7NSS[3]NOT SOLD SEPARATCON GEAR, NO 1
8NSS[3]NOT SOLD SEPARATCON PIN, PLANETARY NO 1
9KTC0156[3]PLATESUM WASHER, GEAR PLANETARY Superseded by part number: KTC10210, KTC0182
10NSS[1]NOT SOLD SEPARATCON WASHER, THRUST
11KTC10080[1]SUN GEARSUM (NO 2)
12KTC0166[1]RING GEARSUM
14KTC10210[1]PINION CARRIERSUM CARRIER, PLANETARY, NO 2, Incl 15 - 19
15NSS[4]NOT SOLD SEPARATCON CARRIER, PINION, PLANETARY NO 2
16NSS[4]NOT SOLD SEPARATCON GEAR, NO 2
17NSS[4]NOT SOLD SEPARATCON PIN, PLANETARY NO 2
18338W100Z040B[4]COTTER PINSUM
19KTC0155[4]PINSUM
20KTC0170[1]HOUSINGSUM
21KTC0150[1]BEARING,130mm ID x 210mm OD x 64mm WSUM
22150824A1[1]PLUGSUM
23158352A1[2]PLUGSUM
24KTC0158[1]RETAINING WIRESUM
25KTC0151[1]SPACERSUM
26KTC0159[1]RETAINING WIRESUM
27KTC0152[1]BEARING COVERSUM
28KTC0154[1]SPACERSUM
29KTC0190[1]BEARING,140mm ID x 300mm OD x 102mm WSUM
30KHP1406[1]Grease
31KTC0153[1]OIL SEALSUM
32KTC0184[1]SHAFT ASSY.SUM
33150237A1[18]BOLT,Hex SktSUM
34NSS[1]NOT SOLD SEPARATCON Name plate
35301-1413[2]DRIVE SCREW,Drive, #2 x 3/16"CAS Superseded by part number: 86542114
36KTC0149[1]GEARSUM
37195A160RN[1]WASHERSUM
38167071A1[1]RETAINERSUM
39627-20050[2]BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full ThdCAS Superseded by part number: 9843590
40153630A1[1]LUBE NIPPLESUM
41150317A1[1]HEADED PIN,24mm OD x 90mm LSUM
42166477A1[12]BOLT,Sems, M24 x 90mmSUM
43150915A1[1]ADAPTERSUM
44KRJ5902[1]HYDRAULIC HOSE,12.70 mm ID x 360.00 mmSUM
45KHP0578[1]PLUGSUM
46KHR2584[1]CLAMPSUM
47KHJ1215[1]BOLT,SpclSUM

Size Information:

Length(cm)
Width(cm)
Highly(cm)
Weight(KG)
65
65
80
450

Our advantages:

v Strong part number database.

If you can provide the right model and part number, we can supply the right product.

v Professional and experienced salesperson.

Our founder has been into this field for more than 22 years, with rich experiences.

v Strict and complete company rules.

We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.

v Good service attitude.

As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.




OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts with in the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
