6000-9000kg YTCT Hydraulic Excavator Magnet Excavator Scrap

Categories Hydraulic Excavator Magnet
Brand Name: YTCT
Model Number: YTCT-HM 700-1500
Certification: CE/ISO
Place of Origin: China
MOQ: 1
Price: USD 3000-3600 per Units
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Units per Month
Delivery Time: 5-8 Days
Packaging Details: Standard Wooden Box
Function: Loading, Unloading,and Handling Steel Scrap
Outer Diameter: From φ700mm to φ 1500mm
Power: Only Require 24-volt Excavator Battery
Lifting Ability: Lifting Projects Weighted From 1 ton to 6 ton
Warranty: 2 Year or 2000 Hours
Suitable Excavator Weight: From 6 tons to 38 tons of All Brand xcavators
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

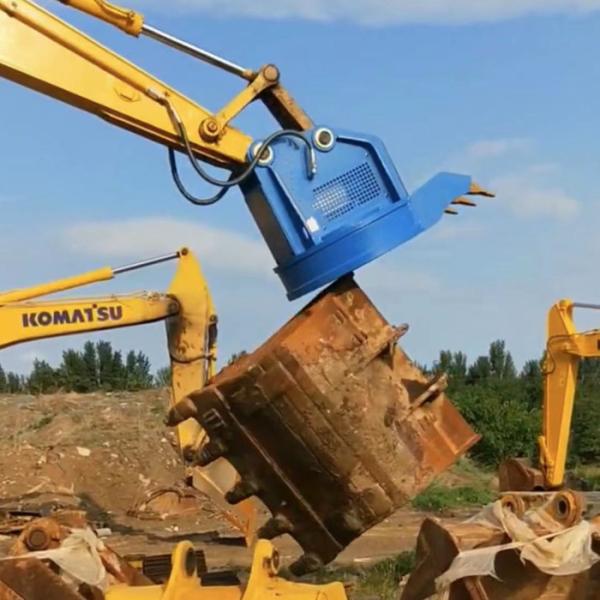

    6000-9000kg YTCT Hydraulic Excavator Magnet Excavator Scrap

    6-9 Ton Excavator Mounted Magnet Attachment For Heavy-Duty Scrap & Demolition For Sale

    Hydraulic Magnet Technical Parameter



    (without Teeth)


    (with Teeth)

    Outer DiametermmØ700Ø1000Ø1200Ø1200Ø1500
    Machine Weightkg14001600180018602200
    Suitable Excavatorton6--910--1516--2516--2526--35
    Generator PowerKW0.610101515
    Working FlowIpm50-10090-110100-140100-140130-170
    Working Pressurebar180190200200210
    Lifting AbilitySlab Sheet≤ 1 ton1 - 2 ton3 - 4 ton3 - 4 ton4 - 6 ton
    Other Type Scraps≤ 100 kg100 - 200 kg150 - 250 kg150 - 250 kg175 - 275 kg

    * The Parameter above may change with the technology improvement, will not notice additionally, please understand.

    * Lifting Ability Influenced by the Permeability of Scrap, the Data Range Would be Various Due to Different Working Condition

    Hydraulic Magent for Excavator Introduction
    The Magnet is composed of built-in electric generation, oil hosing, and an outer body.

    Hydraulic magnet generator: The built-in generator uses advanced control technology to quickly pick up material through rapid magnetization and pulse excitation and automatically demagnetizes through reverse voltage and sequential pulses to release material.

    Hydraulic Magnet Features

    • High-Speed lifting and release operations can finish tasks quickly and efficiently.
    • Before delivery, and related accessories are matched, the user scene, as long as according to the manual data, configuration cable, can install, save the installation
    • Hydraulic Drive, No need to install electric cable, easy install, saves time and labor.
    • Movable Special Steel-made the outer cover, not only protects the whole generator but also is easy to replace and maintain.
    • Cost Saving, No Need to install cable leads to save the cost.
    • Easy Installation, Directly connect the hydraulic breaker oil pump to the magnet, it would work
    • Easy Operate, price includes a foot pedal, convenient to control to attack or distract​
    • Semi-permanent design reduces maintenance costs.
    • Only Require 24-volt Excavator Battery, no need to install extra cable

    Scrap Magnet Application

    The equipment used for hoisting steel and other magnetic materials in

    • metallurgy
    • mining
    • machinery
    • transportation
    • and other industries
    • and used as an electromagnetic manipulator, clamping steel, and other magnetic materials.​

    Tips you need to know before installing hydraulic magnet on your excavator

    • First, confirm whether the components of the excavator suction cup are complete and clean before the installation process.
    • Second, there are hoisting screw holes on both sides of the suction cup of the excavator.
    • Third, During installation, only T-shaped screws need to be screwed in to complete the hoisting, and then the T-shaped blocks and screws are used to fix it on the workbench, and then connect the mechanical equipment.
    • DC power supply and ground wire, and then finely grind the upper plane of the suction cup of the excavator once so that the parallelism of the upper plane and the bottom surface can be kept consistent, and there will be no gap between the two planes during the specific construction process.
    • affecting work efficiency. When completing the above installation progress, it is necessary to carry out commissioning first, which is to overlap the two adjacent magnetic poles to obtain sufficient positioning suction, and then operate the construction normally. If there are no problems with the whole process, then press the controller button to easily power up and demagnetize.
    • But if there is any problem in the process, you need to turn off the power immediately, stop for inspection and maintenance, check the problem in time, and then do this until the problem is solved.
    • Do not continue to operate when there is a problem, it is easy to damage the excavator and hydraulic magnet.
