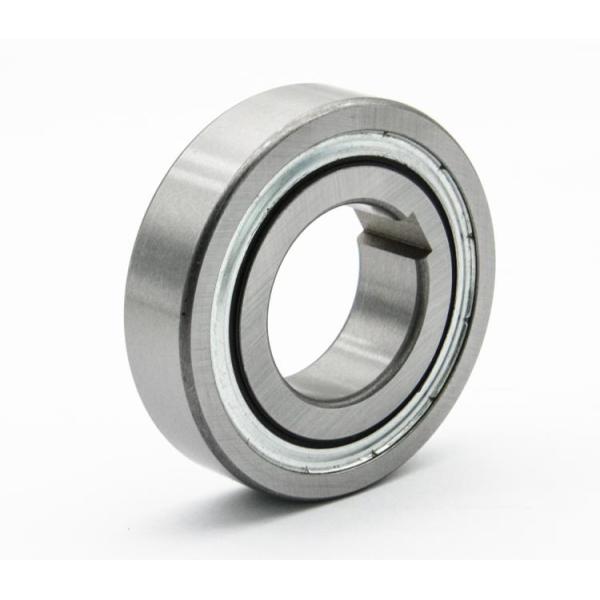

CKN...2RS Series CKN20-2RS 20*47*14MM Cam Type One Way Clutch Bearings

CKN...2RS Series CKN20-2RS 20*47*14MM Cam Type One Way Clutch Bearings

Feature

The CKN series is a freewheel incorporating a 62.. series bearing, self-centring, grease-lubricated and comes with

water protection This model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting

must be carried out with N6 keying tolerance.

The series is built with a C5 clearance that turns into a normal clearance after keying.

The races can be glued to the shaft and the seat. In this case, the clearance remains C5.

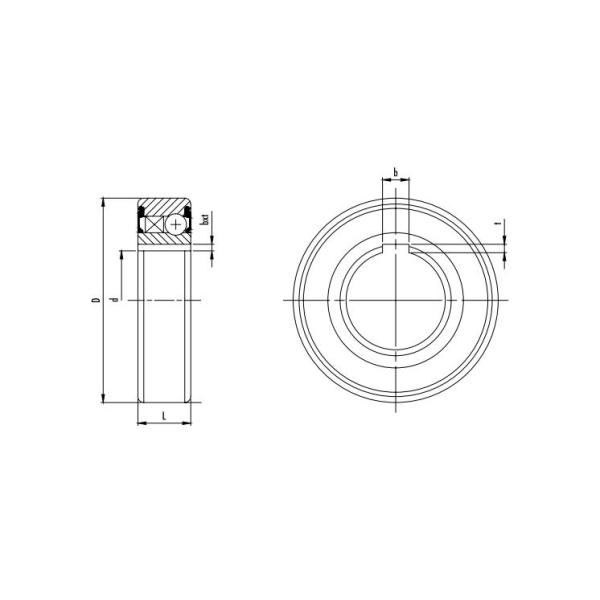

Dimensions and Capacities
