W01-358-7424 Air Suspension Spring 2B12-300 Air Spring Air Balloons For VOL-VO 3130504

Categories Goodyear Air Spring
Brand Name: GUOMAT
Model Number: W01-358-7424
Certification: ISO/TS16949:2009
Place of Origin: GuangDong, China
MOQ: 6PCS
Price: $59.9-69.9/pc
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Delivery Time: 2-8 work days
Packaging Details: Strong Carton Box Or As Customers Need
Spring Material: Natural Rubber
Warranty: 12 Months
Package: Strong Carton
Quality: 100% Tested
Air Inlet: 1/4NPT
The Working Stroke: 80mm~105mm
Plate Diameter: 231mm
Sample: Available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-7424 Air Suspension Spring 2B12-300 Air Spring Air Balloons For VOL-VO 3130504

Air Bag W01-358-7424/Air Suspension Spring 2B12-300/Air Spring Air Balloons For VOL-VO


Product Information

Cross OEM Original Equipment Manufacturer
Firestone
W01-358-7424
Contitech
FD 330-22 327
Goodyear
2B12-300
Triangle
6316/4327
Brake & Wheel
M3509
Dayton
3547424
Leland
Sc2024
Navistar
554785C1
Hendrickson
S13043
Ridewell
1003587424C
SAF Holland
Tc1442
Tuthill
6421
Watson&Chalin
As0009
Neway
90557014(AL-41&45)
R&S Truck & Body
1090215
Sauer
P10-755
VOL-VO
3130504

2B12-300 Goodyear Air Spring Technical Data

Blind Nut

Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC

Screw Center Distance of Top Cover Plate:157.5mm

Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm


Gas Hole/Air Hole/Air Inlet/Air Fitting

Gas Hole/Air Hole/Air Inlet:1/4NPT

Center Distance Between Air Inlet And Nut:73MM


Cover Plate

Top Cover Plate Diameter:231mm/9.00 inches

Bottom Cover Plate Diameter:231mm/9.00 inches


Rubber Bellows

Rubber Bellows MAX. Diameter:325mm/12.9 inches
Rubber Bellows Natural Diameter :298 mm/11.7 inches

The Working Stroke:MAX305mm to MIN 81mm

Maximum Height:305mm/12 inches

Minimum Height:81mm/4.12 inches

Compression Height:224mm/8.8 inches


Air spring are being used in industrial applications as pneumatic actuators that play important roles in some of the most innovative modern machine design. Because of the Air spring actuators durability, resiliency in abrasive environments and overall performance, these can serve as replacements in applications using traditional pneumatic and hydraulic cylinders.

Company Information

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.


Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump.


GUOMAT Other Related Products


FirestoneContitechGoodyearPhoenix
W01-M58-6165FS 120-9
W01-M58-6166FS 120-9
SP 1 B 07
W01-358-7731
W01-M58-6374FS 200-10SP 1B 12
FS 70-7SP 1 B 05
W01-358-7008FS 330-11 4741B12-300/313
W01-358-7009FS 330-11 4681B12-301/578913301
W01-358-6994/19FS 330-11 647
FS 40-6 1/8 M8SP1B04
W01-358-7564FS120-101B8-550
W01-358-6932FD 200-19 4522B9-246
W01-358-6935FD 200-19 4992B9-201
W01-358-6940FD 200-19 4502B9-230
W01-358-6941FD 200-19 4482B9-265/280
W01-358-6949FD200-19506
W01-358-7788FD 200-19 5102B9-245

Packing & Shipping

The goods can be shipped by Sea/Air/DHL/UPS/FEDEX/WMS or other methods.

Payment Terms:Paypal,bank'transfer,Western Union,T/T and L/C are avaiable.

There are different payment methods in different countries and regions.


(1)Your goods will be shipped to you in 2- 8 working days after payment received,the shipping model will be

DHL,TNT,FEDEX which is fast and safe,it takes about 5-10 days to arrive at most countries in the world.


(2)We hope it arrive on time but since this is an international delivery, it depends on the logistic company and local customers

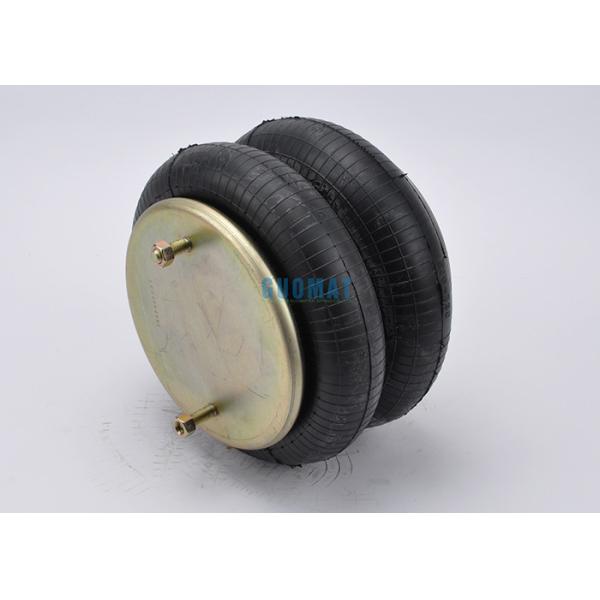

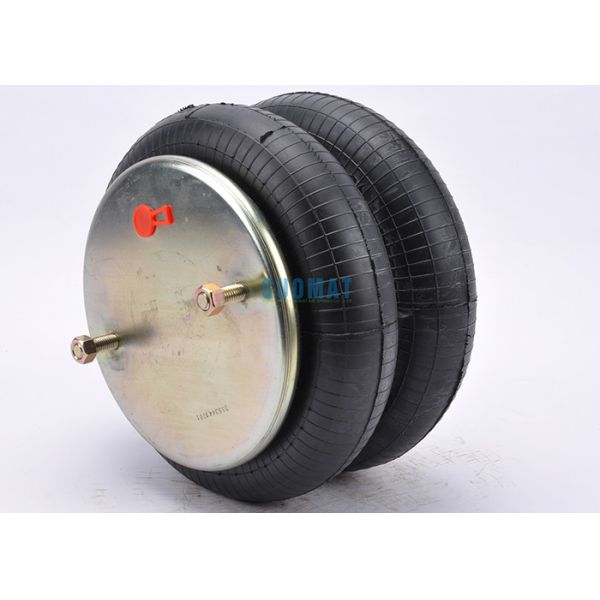

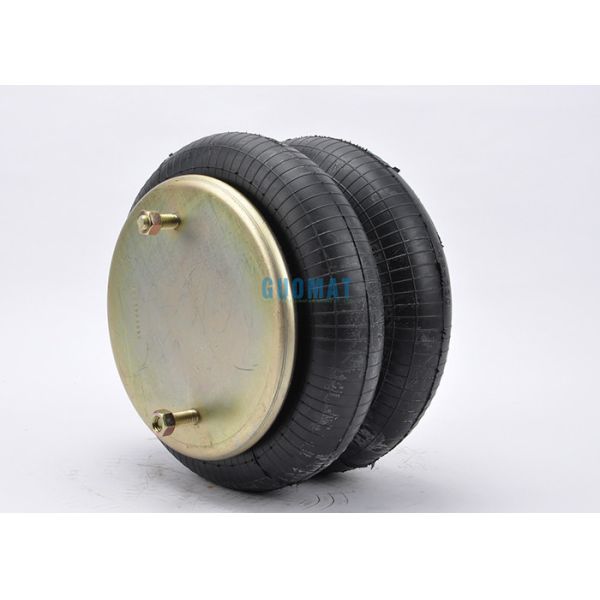

Product Image
