Name: Medical Treatment UVB LED Chips 300NM 305NM 308NM 310NM 315NM 1watt
Brand: LEARNEW OPTO
Price: 1.25 USD

Categories

UV LED Chips

Brand Name:

LEARNEW OPTO

Model Number:

LN-SMD3535UVB-P1

Certification:

CE/RoHs/SGS

Place of Origin:

CHINA

MOQ:

5000

Price:

USD$1.25-USD$1.75/PCS

Payment Terms:

T/T, Paypal，Alipay, , T/T

Supply Ability:

500,000PCS per month

Delivery Time:

1-3 working days for samples, 1-4Weeks for quantity Order

Packaging Details:

Anti-static Blister packing

Power:

Narrow Wavelength:

306-310nm(290-300nm, 300-306nm, 310-315nm are also available)

Input Current:

100(Max=150mA)

Input Voltage:

5-7V

Substrates:

ALN Coppering

LENS:

Quartz glass lens

View Angle:

120DEG

Chips Brand:

Imported Level-A LG/PW Chips

Medical Treatment UVB LED Chips 300NM 305NM 308NM 310NM 315NM 1watt

Medical treatment UVB 300NM 305NM 308NM 310NM 315NM 1watt LED Chips from Learnew LED manufacturer

Specification of SMD LED Chips

models	Power	Peak Wavelength	Input Current	Radiant Power	Whole Size
LN-SMD3535UVB-P1(290-300NM)	1W	290-300NM	100mA(Max=150mA)	14-18mW	3.5*3.5mm
LN-SMD3535UVB-P1(300-305NM)	1W	300-305NM	100mA(Max=150mA)	14-18mW	3.5*3.5mm
LN-SMD3535UVB-P1(305-310NM)	1W	305-310NM	100mA(Max=150mA)	14-18mW	3.5*3.5mm
LN-SMD3535UVB-P1(310-315NM)	1W	310-315NM	100mA(Max=150mA)	14-18mW	3.5*3.5mm

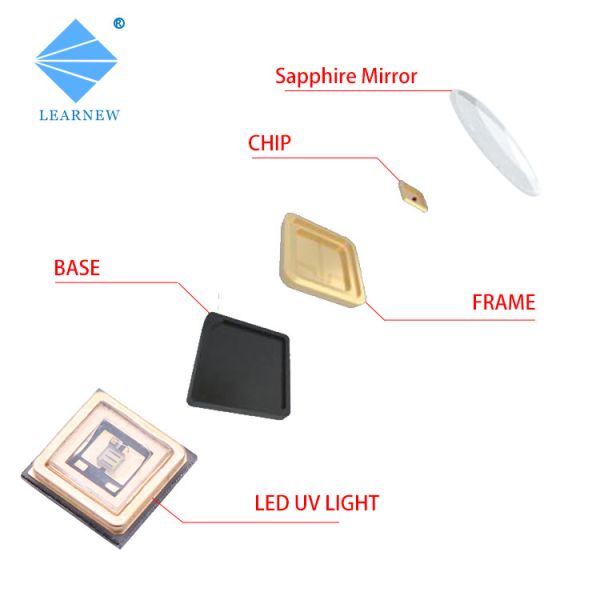

Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.

What's UVB and its application?

The wavelength of 290 ~ 320nm, also known as medium wave erythema effect ultraviolet. Medium penetrating power, its shorter wavelength part will be absorbed by transparent glass, most of the medium-wave ultraviolet rays contained in sunlight are absorbed by the ozone layer, and only less than 2% can reach the earth's surface, which is especially strong in summer and afternoon. UVB ultraviolet rays have an erythematous effect on the human body, which can promote the metabolism of minerals and the formation of vitamin D in the body, but long-term or excessive exposure will tan the skin and cause redness and peeling.

Appilcation:

Marijuana refinement & Animal calcium supplement
Medical treatment
Plant growth hormone supplement....

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is
about 3-30working days. For samples, the delivery could be as fast
as same day
