| Categories | Fuel Dispensing Hose |
|---|---|
| Brand Name: | PASSION |
| Model Number: | 3/4", 1" |
| Certification: | ISO 9001-2008, CE |
| Place of Origin: | Zhejiang China |
| MOQ: | 1000m |
| Price: | 4.0USD/m. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000m/month |
| Delivery Time: | within 25 days after we have received your advanced payment |
| Packaging Details: | Well packed by good and thick braided strap |
| Tube: | Conductive synthetic rubber resistant to gasoline |
| Reinforcement: | Braided fibers |
| Cover: | synthetic rubber resistant to gasoline |
| Temperature: | -55℃ to +60℃ |
| Color: | Black or other colors |
| Application: | For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc. |
| Standard length: | 60meters |
| Sizes: | 5/8", 3/4", 1" |
| Working Pressure: | 16bar |
| Bursting pressure: | 48bar |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

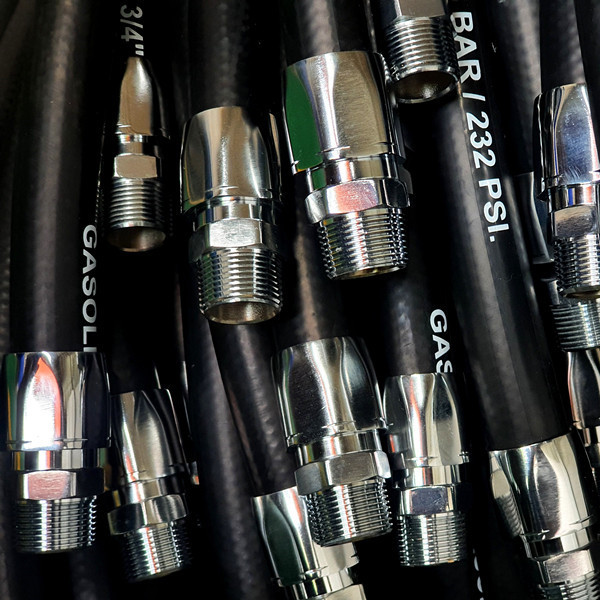

Low-Temperature Flexible Fuel Dispensing Rubber Gasoline Pump Hose
Product Introduction:
Low-Temperature uel hose is especially designed for extremely cold
climates ranging from -65 °F to 140 °F (-54 °C to 60 °C) when
typical fuel hoses become too stiff and fail to operate.
Black tube uses low-temperature synthetic rubber which is highly
resistant to oil especially at extremely cold environment.
Its " Coductive " inner tube is to dissipate static electricity
generating by friction between the hose wall and the media.
Reinforcement features braided fibers construction for excellent
resistance to kink.
Smooth black cover exposing to the environment, has good resistance
to ozone, sunlight, oils and other adverse factors encountered in
nominal working conditions.
Low-Temperature fuel hose has many applications as diverse as
gasoline, diesel, oils, kerosene and other fluids or gases.
Construction:
Tube: Antistatic, Black, low-temp synthetic rubber
Reinforcement: Two Layers of Braided synthetic yarn
Cover: Black, low-temp synthetic rubber
Temperature Resistant: -54ºC to +60ºC
Color: Black or other colors.
Application: A premium fuel pump hose for use in extremely cold
environments.
Remains flexible where temperatures of -65˚F (-54˚C) are
encountered.
Length: 60meters/roll.
Specification:
| Inner Diameter | Outer Diameter | Max Working Pressure | Min Burst Pressure | |||
| inch | mm | mm | bar | psi | bar | psi |
| 5/8 | 16 | 26 | 16 | 232 | 48 | 696 |
| 3/4'' | 19 | 30 | 16 | 232 | 48 | 696 |
| 1'' | 25 | 36 | 16 | 232 | 48 | 696 |
Benefits:
1). Electrically Conductive Gasoline Resistant Inner Tube Designed
to Dissipate Static Build Up.
2). A Fiber Reinforcement for Maximum Pressure and Flexibility.
3). Still can work when temperature goes down to as low as -54ºC.
4). Lightweight.



|
