Ceramic Tile Adhesive Mortar Manufacturing Machine Dry Mortar Mix Machine
Descriptions of MG Construction Material Tile Adhesive Mortar Manufacturing Machine:

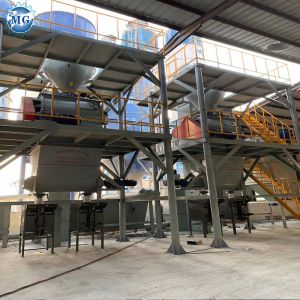

MG series Tile Adhesive Mortar Manufacturing Machine is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system , packaging system, and dedusting system, etc.
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
Features of MG Tile Adhesive Mortar Manufacturing Machine:
1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The Tile Adhesive Mortar Manufacturing Machine line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000㎡.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.
| Model | Out put | Occupied area | Equipment height | Manpower | Batching and packaging |
| Simple type | 3-4t/h | 20m2 | 3-4m | 2-3 Person | Manual batching
Automatic packaging |
| Semi-automatic type | 6-8t/h | 50-60m2 | 6-8m | 3-4 Person | Manual batching
Automatic packaging |
| Full automatic type | 8-30t/h | 60-100m2 | 8-13m | 3-4 Person | Automatic batching
Automatic packaging |
Technical Parameters of MG Tile Adhesive Mortar Manufacturing Machine:
Tile Adhesive Mortar Manufacturing Machine |
| Screw Converyor | CE Mortar: 3kw |
| Twin Shaft Mixer
(Equip Fly Cutting System for Fiber) | Mixer Mortar: 18.5kw Fly-cutter Mortar: 4kw Capacity: 2m³ |
| Finish Product Hopper | Capacity; 1m³ |
| Screw Conveyoe | CE Mortar: 3kw |
| Storage Silo | Capacity: 2m³ |
| Packing Machine | Automatic Valve Type |
| Air Compressor | CE Mortar: 4kw |
| Control Cabinet | 1 Set |
Application of MG Tile Adhesive Mortar Manufacturing Machine:
The Tile Adhesive Mortar Manufacturing Machine can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
Name: Silo
Brand: MG
Original: Zhengzhou, China
Our bolted cement silo is also born for export market, not only has excellent quality,reliable sealing structure.but also easy for
transportation, easy for assembling, easy for disassembling, save shipping space, reduced transportation cost.
Name: Bucket Elevator
Brand: MG
Original: Zhengzhou, China
Function: mainly used for lifting the precisely-arranged material to the top of the bin to be mixed is characterized by good sealability, it has characters of low noise, minimal residual material, and easy cleaning.
Name: Weighting System
Brand: MG
Original: China
MG full automatic tile adhesive production line equip automatic weighing hopper, it can realize automatic feeding and automatic
dosing of the raw material, controlled by the PLC control cabinet.
Name: Twin Shaft Mixer
Brand: MG
Original: Zhengzhou, China
MG New type of double shaft paddle mixer introduce German technology, can mixer material with high efficiency and uniformally, it
can mix one batch material within 3-5 minutes, it also equip fly cut system for fiber breaking.
Name: Finish Product Hopper
Brand: MG
Original: Zhengzhou, China
It used to storage finish product and fix under the mixer, and also it equip ribbons to realize second mixing, make sure the mixing of product more uniformally and product not block when packing
Name: Packing Machine
Brand: MG
Original: Zhengzhou, China
MG Valve port packing machine can pack dry powder material from 15-50kg per bag adjustable, It can pack one 25kg bag within 6
seconds, the accuracy is very good, it can be 99.8%
Name: Dust Collector
Brand: MG
Original: China
MG Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize
automatic dust remove.
Name: Air Compressor
Brand: MG
Original: China
Use special fabric filter dust,well dust collect.
Fans,Cloth cylinder and filter assembly as one,can shorten the wind mesh simplify workmanship process,reduce the investment of dust collector equipment.
Name: Control Cabinet
Brand: MG
Original: China
It use automatic PLC control system and touch screen system to realize automatic control
Customers Visit Our Company
Zhengzhou MG Industrial Co., Ltd, the Leader of Full Automatic Dry Mortar Mixing Equipment!Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
The main products of the company include dry mortar plant, thermal insulation mortar production line, sand dryer, power blending machine, impulse dust collector, automatic packing machine, and others.
According to the actual situation of each customer (investment costs, plant conditions, material characteristics, product formula, etc.), the company can tailor a reasonable practical and efficient equipment solution for customers.
MG products have been widely used in more than 1000 building materials enterprises in China, and exported to more than 70 countries, such as Canada, Russia, Korea, Malaysia, the United Arab Emirates, Argentina, Chile, Ecuador, Morocco, South Africa, Nigeria, etc.
MG will be willing to work with you to seek common development and create brilliance.
Zhengzhou MG Industrial Co.,Ltd
Zhengzhou MG industrial Co., Ltd. - The leader of premixed dry
mortar equipment!
Zhengzhou MG industrial Co., Ltd. established in 2000, is located
in China construction machinery city- Zhengzhou, the capital of
Henan province. Our company was verified by ISO9001 quality control
system, awarded as Henan first-class science and technology
enterprise by government. We were Henan observe quality and
credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D,
production, sales and construction, providing most efficient
turnkey solutions to our clients in green building energy-saving
insulation and green wall (building) materials manufacturing
equipment, production technology and construction program.
Our advantages:
1.Leading position in this industry--With decades years development
and creation, we enjoy a high reputation and outstanding position
in this trade since 2000.
2. Excellent quality guranteed—Our machine exported to over 90
countries and regions because of the good quality.
3. Rich sucessful experience in complete production line-- with
successful installation production experience of thousands of sets
of equipment, provide you with a wide selection of investment and
construction program.
4. Comprehensive and professional services—provide our clients with
turn-key services from supplying raw materials, formula, equipment,
installation, to heart-felted after-sale services, escort your
success in one stop station!
Adhering to the spirit of "MG manufacturing, with Manificant
quality and service" , MG is willing to work with all colleagues
from all over the world, and share success and seek common
development to create brilliant achievement.
Our main Products:
A. Mixing equipment:
Horizontal Ribbon Mixer
Biaxial Agravic Mixer
Vitrified Microsphere (glass beads )
Drum Mixer
Dry Mortar Production Line
Thermal Insulation Mortar Production Line, etc.
B. Drying equipment:
Rotary Sand Dryer
Three Cylinder Rotary Sand Dryer
C. New type perlite expansion equipment :
High-output perlite expansion furnace
Efficient vermiculite expansion furnace
D. Production line associated equipment:
Dust Collector, Automatic Packaging Machines, Disc feeder,
Vibrating Screen, Raymond Mill, Belt Conveyor, etc.
Our products are popular in more than twenty provinces, and the
machine exported to more than twenty countries in West Asia, South
America, Africa, Eastern Europe with good market.
Tile Adhesive / Tile Glue Mixing Dry Mortar Production Line PLC Control
