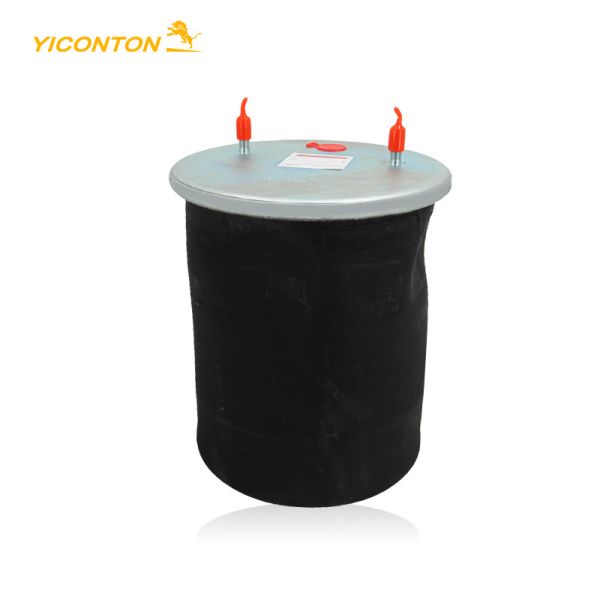

W01-M58-8619 1DK21-1 Firestone Trailer Air Bags 05.429.41.24.1 industrial

BPW Trailer Rubber Air Spring 05.429.41.24.1 Firestone W01-M58-8619 1DK21-1 Trcuk Spring

Details

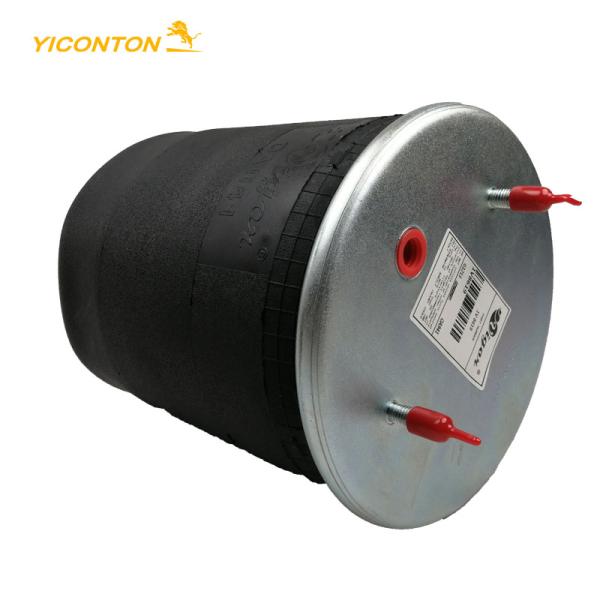

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

Distance Between Stud and Central axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Stud and Central axis : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø259 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 610mm

Rubber Bellows MIN Height : 285mm

Design height 360mm

Working stroke 325mm

❺ Bumper block / Buffer block

Bumper Block height :41mm

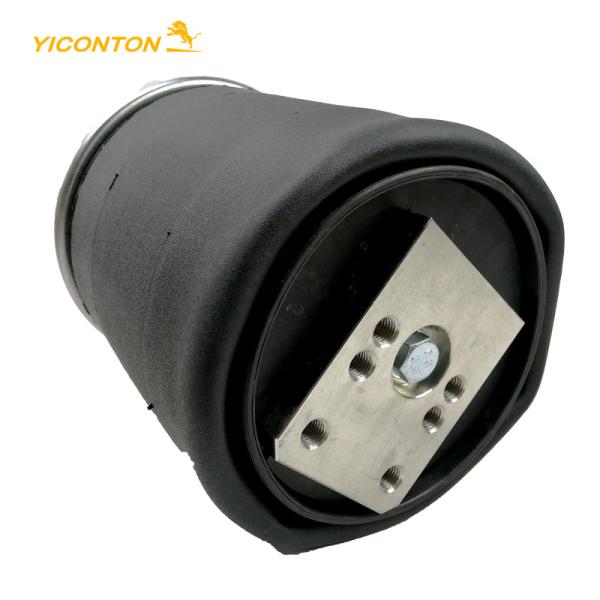

❻ Bottom Piston

Bottom Piston Diameter : Ø205mm

Bottom Piston Height :193 mm

❼ Piston Bolt

Piston Bolt Tooth : M16 X2.0

6 pieces of Bolt

Middle inside between center Bolt : 70 mm

Inside the most close Bolt :20 mm

Inside and the beside Bolt: 60 mm

More OEM No.
