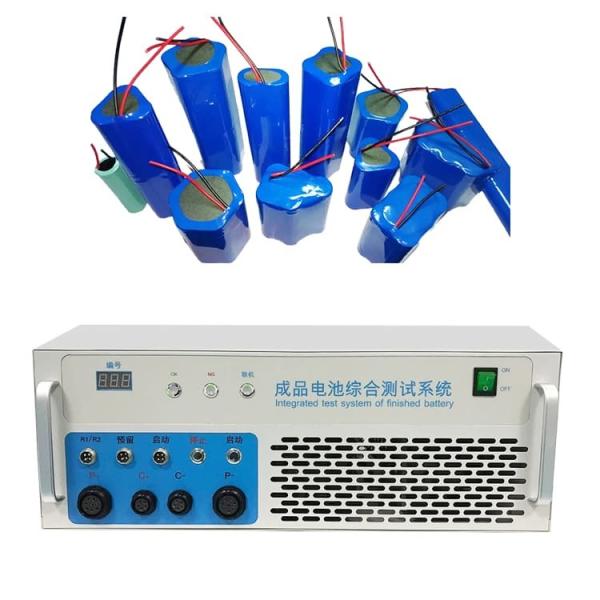

Embedded Lithium Ion Battery Testing Machine 18650 Finished Battery Finnal Tester

Embedded Lithium Ion Battery Testing Machine 18650 Finished Battery Finnal Tester

Product Description

Haituo series products are a new generation of power battery testing equipment
developed, designed and manufactured by Shenzhen Haituo Mechnical&Equipment Co.,Limited. . Device voltage sampling, current sampling using 24-bit ADC,
current sampling using high-precision Hall sensor, current control using 16-bit
DAC, CPU sampling 32-bit ARM processor, providing voltage 0.1mV, current
0.1mA resolution and control capabilities (basic The accuracy is 0.2%, and the
basic current rise rate is 10A/uS). The current discharge uses MOSFET as a
power discharge device, the appearance is novel, the production process is
scientific and rigorous, and it is more cost-effective than similar products.
Widely used in automotive electronics, aerospace, marine, solar energy
storage, bicycle, communication power supply and other power battery
production and scientific research experiments.

Product Features

1. Continuous output power 10KW.
2. Power battery test maximum test power 18KW
3. Power battery pack short circuit test current 5000A.
4. The highest test voltage is 100V
5. The equipment is suitable for charging and discharging the same mouth,
6. Software programmable control.
7. Friendly human-computer interaction interface.
8. Computer keyboard and mouse input control.
9. Power-on self-test function.
10. Battery unit monomer consistency assessment test.
11. Battery pack internal resistance test.
12. Battery pack load start capability test (3000uF capacitive load). Can be
customized according to customer requirements
13. Battery pack load capacity test.
14. Battery pack over current test.
15. Battery pack short circuit test.
16. Battery component capacity test.
17. Electronic load constant current discharge equipment.
18. Save record test data
19. Battery component capacitance test data curve output
20. Equipment and computer communication using optical isolation.
21. Device input voltage AC220V/50Hz.
22. The input power of the device is less than 100W.
23.The device input housing is well grounded.

Product Specification

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
