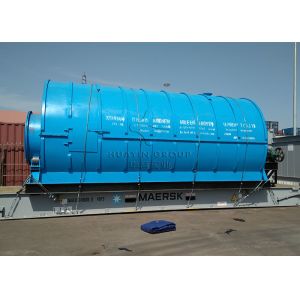

Huayin 5 Ton Waste Plastic To Oil Machine Pyrolysis

Categories Waste Plastic to Fuel Machine
Brand Name: Huayin
Model Number: HY-5Ton
Certification: CE ISO
Place of Origin: Xinxiang city, Henan,China
MOQ: 1 set
Price: USD38000-55000 per set
Payment Terms: L/C, T/T
Supply Ability: 220 sets per year
Delivery Time: 15-25 work days
Packaging Details: plastic flims for pyrolysis reactor , wooden boxes for small parts
Product name: Huayin 5 Ton Waste Plastic Pyrolysis Plant Plastic To Fuel Pyrolysis Machine
labour: 3-4 workers
Input raw material:: waste plastic ,PP PE PS,ABS, pmma
Output product: Fuel oil , Carbon black ,gas
Heating fuel: Wood /Coal /Gas /Oil
Function: machine transform plastic to fuel
Rotating speed: 0.4 turn/minute
Opeartor: 3-4 workers
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Huayin 5 Ton Waste Plastic To Oil Machine Pyrolysis

Huayin 5 Ton Waste Plastic Pyrolysis Plant Plastic To Fuel Pyrolysis Machine


Product description


1. The waste plastic pyrolysis plant function is converting waste plastic into fuel oil, carbon black, and syngas.

2. Capacity from 1 ton-15ton capacity per batch. Support customization.

3. Fast installation design & Bulk type design &Container design

4. Environmental friendly, no black smoke and waste water discharged out.

5. Large condensing area ensures a high oil yield.

6. Low operating cost.

7. High Automation. Auto feeding systems and discharging carbon black devices make this recycling machinery much easier to operate.

8. Certification: CE, ISO, SGS, BV.

9. Material of reactor: Q345R/Q245R/310S+Boiler plate/Stainless steel, thickness 16mm/18mm.


Specification

ItemContent
Raw materialsWaste plastic, PP ,PE, PS, ABS,PMMA,etc.
OutputFuel oil , carbon black,syngas
ModelReactor sizeCapacity
HY1500*30001 T/batch
HY2200*55005 T/batch
HY2200*75007 T/batch
HY2600*66008 T/batch
HY2800*60009 T/batch
HY2800*660010 T/batch
HY2800*800015 T/batch
RemarksSupport customization
Reactor material and thickness

Q345R/Q245R/310S (Boiler plate/stainless steel)

16mm/18mm

Land area300-400㎡ (L30-40m*W10m)
Number of workers3-4
Oil density and calorific value0.89g/cm³&44.30KJ/KG
Processing time and power10-24 hours. Averagely 15KW/h
CertificationCE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents



Our advantage


Our advantage
Reactor materialAdopt Q245R/Q235R high pressure and temperature resistance steel plate to ensure longer service life. For some special raw materials, we use a special steel plate.
High efficiency dischargingAdopt screw conveyor discharging device, discharge carbon black in sealed condition, no pollution, and save labor and time.
Integrated condensing deviceAll of the condensing parts have been installed together before delivery from the factory, saving installation time and ensuring welding quality
Auto feeding systemAuto feeder machine to feed raw material automatically, save labor and time.
Energy saving

The inner reactor body and outside insulation cover have good airtightness, avoiding heating loss and saving fuel.

The combustible gas (that cannot be further cooled down into fuel oil )will be recycled into the furnace for heating the reactor, maximizing resource utilization.

ValvesAll of the valves use stainless steel.
Non-pollutionAdopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided.
Safety devicesAlarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly.

FAQ


1. What is the price of one complete set of waste pyrolysis plants?

The price of the pyrolysis plant depends on the configuration, and capacity, please contact us to get the latest quotation.


2. What payment methods do you accept?

A: We can accept T/T, L/C, Western Union.


3. Does waste pyrolysis plants pollute the environment?

With a powerful de-dusting system, the smoke will be desulfurization and purified before being discharged out. SGS emission reported provided.


4. How many countries have your machines been exported to?

HUAYIN equipment has been exported to over 80 countries including Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti, Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland, England, Thailand, Greece, Mexico, Benin, Indonesia, India, Singapore, Russia, etc.


5. How long will it take to get the machine?

The delivery time is 15 -25 working days.
