| Categories | Titanium Flange |
|---|---|
| Brand Name: | LIHUA |
| Model Number: | LH-WN |
| Certification: | ISO9001, TUV etc. |
| Place of Origin: | Baoji, China |
| MOQ: | 5 Pieces |
| Price: | US dollar $25/pc--US dollar $85/pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 pcs per month |
| Delivery Time: | 3-15 Working days |
| Packaging Details: | Wrapped by foam contained in plywood box for export |
| Product name: | ASTM Titanium flange |
| Standard: | ASTM/ASME B16.5 |
| Material: | Gr1, Gr2, Gr5, Gr7, Gr12 |
| Application: | Chemical industry |
| Sealing surface: | RF, FF, TG, RJ etc. |
| Size: | NPS 1/2 - NPS 24(DN 10 - 2000) |
| Pressure: | 150#-2500# |
| Surface: | Polished |
| Technique: | Forged and CNC Machined |
| Inspection: | Ultrasonic Testing & Material Test Report EN10204.3.1 |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

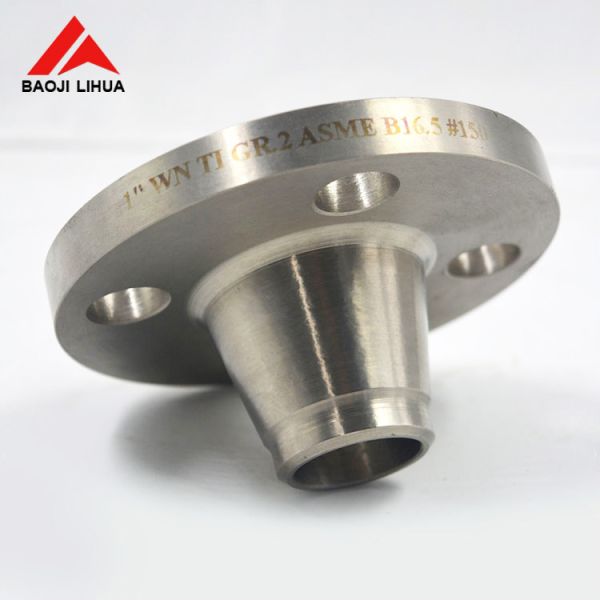

Gr2 Titanium Weld Neck Flange
Product name: Gr2 Titanium weld neck flange
Type: WNRF
Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.
size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .
Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Technique: Forged and CNC Machined.
Advantages: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength.
Drawing
Other flange type:
| Products | Size | |
| Titanium Threaded Flanges | Titanium Reducing Flanges | 1/8’’ - 36’’ Raised Face or Flat Face |
| Titanium Blind Flanges | Titanium Plate Flanges | |
| Titanium Slip-On Flanges | Titanium Forged Flanges | |
| Titanium Lap Joint Flanges | Titanium Socket Weld Flanges | |
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Applications
Production Process
Our Factory
Stock
Quality Inspection
Packaging
|
