NU332-E-M1 160x340x68 mm Cylindrical Roller Bearing NU332 Single row

Categories Cylindrical Roller Bearing
Brand Name: NSK/KOYO
Model Number: NU332-E-M1
Certification: ISO9001:2008
Place of Origin: Japan
MOQ: 1 pcs
Price: negotiation
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Delivery Time: 3 working days after received your payment
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Structure: Cylindrical
Number of Row: Single Row
Size: 160x340x68 mm
Cage: Brass;steel
Clearance: C3;C4
Mass: 32.5 kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NU332-E-M1 160x340x68 mm Cylindrical Roller Bearing NU332 Single row

NU332-E-M1 160x340x68 mm Size of Bearing Cylindrical Roller Bearing NU332 competitive price Single row ​

Cylindrical Roller Bearings are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings. As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface. Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.


Bearing NoCylindrical Roller Bearing NU332
Brand

GQZ NSK NACHI

Bearing size160*340*68mm
Net weight30.6KG
MaterialChrome Steel,Stainless Steel,Carbon Steel,Full Ceramic
CageStainless steel,Steel,Carbon Steel,Iron,Nylon,PTFE,PEEK
Seals typeOpen,zz,rs
LubricationGrease,Oil,Dry
Basic static load capacity Cor(N)26-238000 Cor(N)
Basic dynamic load capacity Cr(N)96-256000 Cr(N)
Limiting Speed3000-120000 rpm(Grease);3600-150000 rpm(Oil)
Precision ratingABEC-1 ABEC-3 ABEC-5 ABEC-7
Vibration level codesV1,V2,V3,V4
Internal clearance codesC0,C2,C3,C4,C5
CertificateSGS,CE,ROSH,ISO9001:2000,BV
Noise levelZ1,Z2,Z3,Z4
FeatureLow noise,Less vibration,High precision,Long life,
low friction bearings
Packaging

Plastic tube/bag+Box+Carton+ Wooden box,

According to your requirements.

ShippingBy Express,By Air,By Sea
Delivery time

sample 3 days,10-20 days upon your order.

ServiceOEM or ODM
MOQ1PCS
PortShen zhen,Shanghai,qingdao or according to your requirements
Main Market

North America,Europe,Australasian countries and regions,

South Africa, Thailand, singapore,Southeast Asia

Application

digging machines, truck, train, vibrating screen, metallurgy, electrical machinery, petrochemical, construction machinery, cement, mining and other industries

Main bearingdeep groove ball bearings, spherical roller bearings, Angular contact ball bearing, pillow block bearing, ceramic Bearing, wheel bearing, cylindrical roller bearing, Insulating bearing, taper roller bearing


Parameter:

Dimensions(mm)Basic load rating KN
DesignationsdDBCrCorMass (KG)
NU228140250423915108.32
NU3281403006268283022.5
NU23281403001021050143037
NU2301502704544660010.5
NU3301503206578196527.5
NU23301503201081190163045
NU2321602904850168015
NU33216034068880108032.5
NU23321603401141320186053
NU2341703105261681519
NU33417036072809104038.5
NU23341703601201230180063.2
NU2361803205262785019.5
NU33618038075913118043.5
NU23361803801261400204073
NU2381903405569396523.5
NU338190400781140150050
NU23381904001321830250084.9
NU24020036058865106028.5
NU34020042080990132056.8
NU23402004201382050285096.8
NU24422040065765108038.5
NU344220460881210163074.6
NU234422046014517902700150
NU24824044072952137051.5

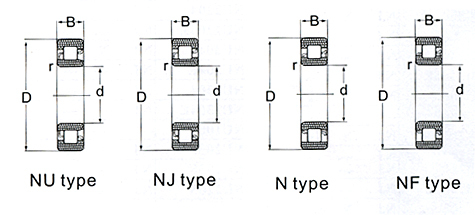

Drawing:
