| Categories | Cylindrical Roller Bearing |
|---|---|
| Brand Name: | OEM OR GQZ |
| Model Number: | 314385 |
| Certification: | ISO9001:2008 |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | T/T or western Union or PayPal |
| Supply Ability: | 3,000pcs per month |
| Delivery Time: | 3 working days after received your payment |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Structure: | Cylindrical |
| Type: | Roller |
| Material: | Chrome steel |
| Application: | Vibration machinary,CNC machine and so on |
| Size: | 200x280x170mm |
| Number of Row: | FOUR |
| Company Info. |
| Wuxi Guangqiang Bearing Trade Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

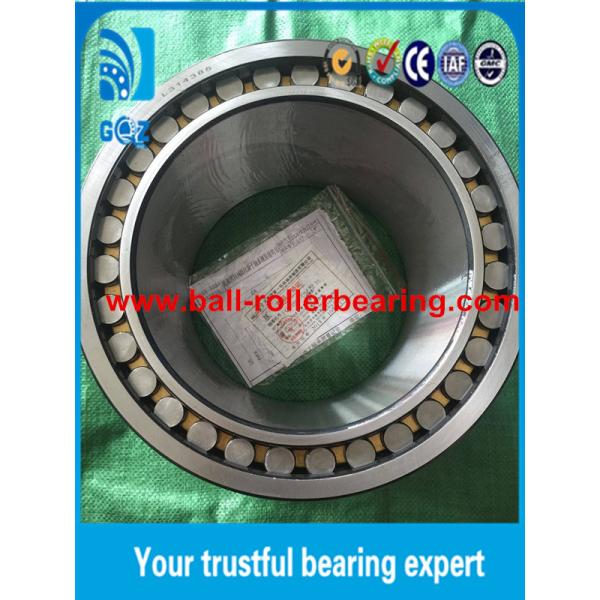

Four rows cylindrical roller bearing 200x280x170mm 314385 Cylindrical roller bearing, low coefficient of friction
1) Cylindrical roller bearing
2) Four row roller bearings
3) OEM/ODM available
4) Model : 314385
5) Factory directly sale
Specification Cylindrical roller bearing 314385:
Cylindrical roller bearing is a separable bearing,easy to assembly and dismantle,Tight fit can be use for both inner and outer rings.The corrected contact line between the rollers and raceway can reduce stress concentration.
Drawing Cylindrical roller bearing 314385:

Parameter: Cylindrical roller bearing 314385:
| d | D | B | KG | TYPE |
| 190 | 270 | 200 | 37.5 | 314199 |
| 190 | 270 | 200 | 37.5 | 190RV2701 |
| 190 | 270 | 200 | 37.5 | 4R3821 |
| 190 | 270 | 200 | 37.5 | 508657 |
| 190 | 270 | 200 | 37.5 | 314199B |
| 190 | 280 | 200 | 42.3 | 314049A |
| 190 | 280 | 200 | 42.3 | 510199 |
| 190 | 280 | 200 | 42.3 | 4R3823 |
| 190 | 280 | 200 | 42.3 | 190RV2801 |
| 200 | 250 | 200 | 23.8 | 200RV2521 |
| 200 | 270 | 170 | 28.5 | 314553 |
| 200 | 270 | 170 | 28.5 | 4R4039 |
| 200 | 270 | 170 | 28.5 | 522742 |
| 200 | 270 | 170 | 28.5 | 314553 |
| 200 | 280 | 170 | 32.5 | 314385 |
| 200 | 280 | 170 | 32.5 | 507344 |
| 200 | 280 | 170 | 32.5 | 40FC28170 |
| 200 | 280 | 188 | 36.2 | 40FC28188 |
| 200 | 280 | 190 | 36.5 | 40FC28190A |
| 200 | 280 | 190 | 36.5 | 200RV2803 |
| 200 | 280 | 200 | 39.3 | 313893 |
| 200 | 280 | 200 | 39.3 | 508726 |
| 200 | 280 | 200 | 39.3 | 4R4037 |
| 200 | 280 | 200 | 39.3 | 200RV2802 |
| 200 | 280 | 200 | 39.3 | 313893-1 |
| 200 | 280 | 200 | 39.4 | 200RV2801 |
| 200 | 280 | 200 | 39.4 | 40FC28200 |
| 200 | 290 | 192 | 42.8 | 313811 |
| 200 | 290 | 192 | 42.8 | 200RV2901 |
| 200 | 290 | 192 | 42.8 | 4R4041 |
| 200 | 290 | 192 | 42.8 | 512580 |
| 200 | 290 | 192 | 42.8 | 313811 |
| 200 | 310 | 200 | 59.5 | 524373 |
| 200 | 310 | 130 | 64.3 | 313639/VJ202 |
| 200 | 310 | 130 | 64.3 | 503901.N12BA |
| 200 | 310 | 130 | 64.3 | 200RV3102 |
| 200 | 320 | 216 | 67.2 | 200RV3231 |
| 200 | 320 | 216 | 67.2 | 4R4028 |
| 210 | 290 | 192 | 41.2 | 313646 |
| 210 | 290 | 192 | 41.2 | 507628 |
| 210 | 290 | 192 | 41.2 | 4R4206 |
| 210 | 290 | 192 | 41.2 | 210RV2901 |
| 210 | 290 | 192 | 41.2 | 42FC29192 |
| 210 | 300 | 210 | 47.9 | 42FC30120 |
| 220 | 300 | 160 | 32.8 | 4R4419 |
| 220 | 290 | 192 | 33.8 | 4R4413 |
| 220 | 300 | 200 | 41.2 | 567623 |
| 220 | 300 | 200 | 41.2 | BC2B322341/HB1VL202 |
| 220 | 310 | 192 | 46.3 | 313839 |
| 220 | 310 | 192 | 46.3 | 507333 |
| 220 | 310 | 192 | 46.3 | 4R4426 |
| 220 | 310 | 192 | 46.3 | 313837A |
| 220 | 310 | 192 | 46.3 | 313837-1 |
| 220 | 310 | 192 | 46.3 | 220RV3101 |
| 220 | 310 | 204 | 49.8 | 4R4425 |
| 220 | 310 | 215 | 51.5 | 4R4420 |
| 220 | 310 | 225 | 54.5 | 313894B |
| 220 | 310 | 225 | 54.5 | 514461 |
| 220 | 310 | 225 | 54.5 | 44FC31225A |
| 220 | 310 | 225 | 54.9 | 506869 |
| 220 | 310 | 225 | 54.9 | 4R4416 |
| 220 | 310 | 225 | 54.9 | 220RV3102 |
| 220 | 310 | 225 | 54.9 | 44FC31225A |
| 220 | 310 | 265 | 63.5 | 4R4430 |
| 220 | 320 | 160 | 46.5 | 4R4428 |
| 220 | 320 | 210 | 61.2 | 509216 |
| 220 | 320 | 210 | 61.2 | 220RV3203 |
| 220 | 320 | 210 | 61.2 | 44FC32210 |
| 220 | 320 | 210 | 56.1 | 44FC32210-1 |
| 220 | 320 | 210 | 56.1 | 220RV3203 |
| 220 | 320 | 210 | 56.1 | 4R4429 |
| 220 | 330 | 230 | 68.5 | 541452 |
| 220 | 330 | 230 | 68.5 | 314889/VJ202 |
| 220 | 340 | 180 | 60.3 | 44FC34180A |
| 220 | 340 | 290 | 96.3 | 525147 |
| 230 | 330 | 206 | 58.6 | 4R4614 |
| 230 | 330 | 206 | 58 | 313824 |
| 230 | 330 | 206 | 58 | 508727 |
| 230 | 330 | 206 | 58 | 230RV3301 |
| 230 | 330 | 206 | 58 | 313824 |
| 230 | 340 | 260 | 81 | 4R4611 |
| 230 | 340 | 260 | 81 | 230RV3401 |
| 230 | 340 | 260 | 81 | 46FC34260 |
| 230 | 365 | 250 | 100 | 313581A |
| 230 | 365 | 250 | 100 | 529113 |
| 230 | 365 | 250 | 100 | 230RV3601 |
| 230 | 365 | 250 | 100 | 313581AW |
| 240 | 330 | 180 | 49.5 | 635194 |
| 240 | 330 | 180 | 49.5 | 504547 |
| 240 | 330 | 220 | 56.4 | 48FC33220 |
| 240 | 330 | 220 | 58 | 313921 |
| 240 | 330 | 220 | 58 | 508368 |
| 240 | 330 | 220 | 58 | 4R4811 |
| 240 | 330 | 220 | 58 | 240RV3301 |
| 240 | 330 | 220 | 58 | 312943/1YD |
| 240 | 340 | 220 | 71 | 513703 |
| 240 | 340 | 220 | 71 | 4R4806 |
| 240 | 340 | 220 | 71 | 240RV3403 |
| 240 | 340 | 220 | 71 | 48FC34220 |
| 240 | 360 | 218 | 77.4 | 48FC36218 |


|
