Swing Motor Seal Repair Kit K9001903 For DX180LC DX225LC DX480LC Doosan Spare Parts

Categories Swing Motor Seal Kit
Brand Name: SUNCAR
Model Number: K9001903 DOOSAN DX180LC, DX190W, DX210W, DX225LC, DX225LL, DX225NLC, DX235NLC, DX480LC, DX520LC / DX520LCA, TXC225LC-2
CertifiC.A.Tion: ISO9001
Place of Origin: CHINA(MAINLAND)
MOQ: Trial order acceptable
Price: Negotiation
Payment Terms: Western Union, L/C, T/T, , D/A, D/P
Supply Ability: 1500 pcs per month
Delivery Time: 3-5 days after payment received(public holiday excluded)
Packaging Details: PP bag inside, carton box outside
Product name: Swing Motor Seal Repair Kit
Part No.: K9001903
Warranty: Unavailable
Shipping Mode: By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Sample: Available
Feature: High sealing performance, wear resistance, heat resistance
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

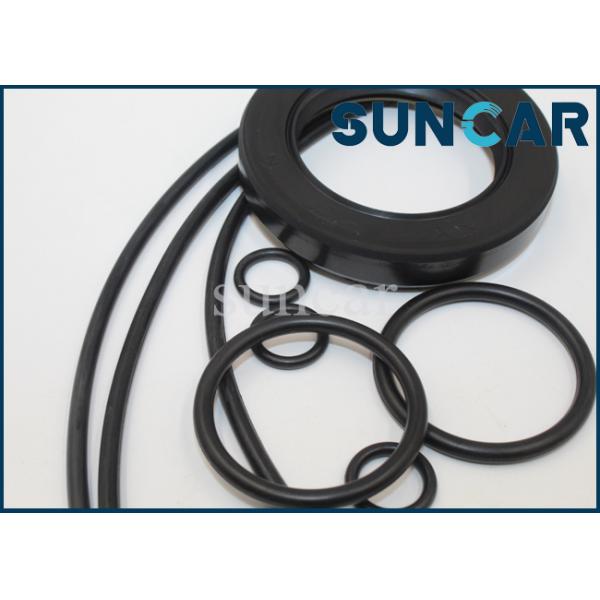

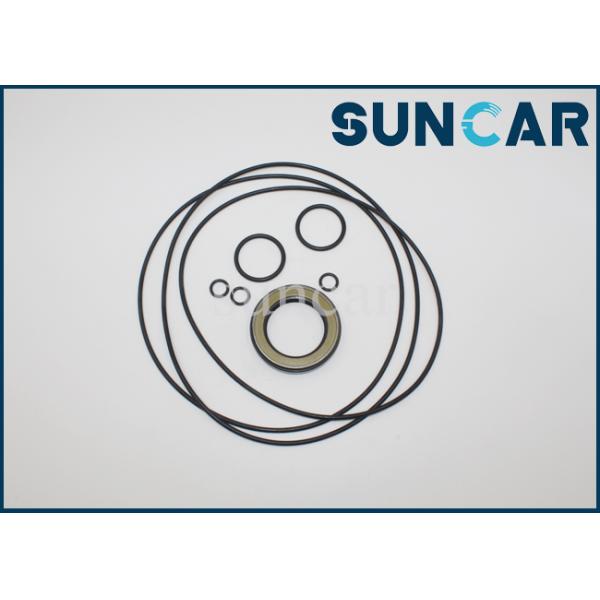

Swing Motor Seal Repair Kit K9001903 For DX180LC DX225LC DX480LC Doosan Spare Parts

Swing Motor Seal Repair Kit K9001903 For DX180LC DX225LC DX480LC Doosan Spare Parts


Product NameSwing Motor Seal Repair Kit
Part NumberK9001903
Model Number

DOOSAN DX180LC, DX190W, DX210W, DX225LC, DX225LL,

DX225NLC, DX235NLC, DX480LC, DX520LC / DX520LCA,

TXC225LC-2

MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of OriginChina(Mainland)
Brand nameSUNCAR
PackingPP bag inside, carton box outside
Shipping ModeBy air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment TermsWestern Union, Paypal, T/T, Transfer
CertifiC.A.TionISO9001
WarrantyUnavailable
CustomizedOEM & ODM are welcomed
C.A.Tegory GroupSwing Motor Seal Kit, Hydraulic Service Kit
ConditionNew, genuine new
SampleAvailable
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

FeatureHigh sealing performance, wear resistance, heat resistance

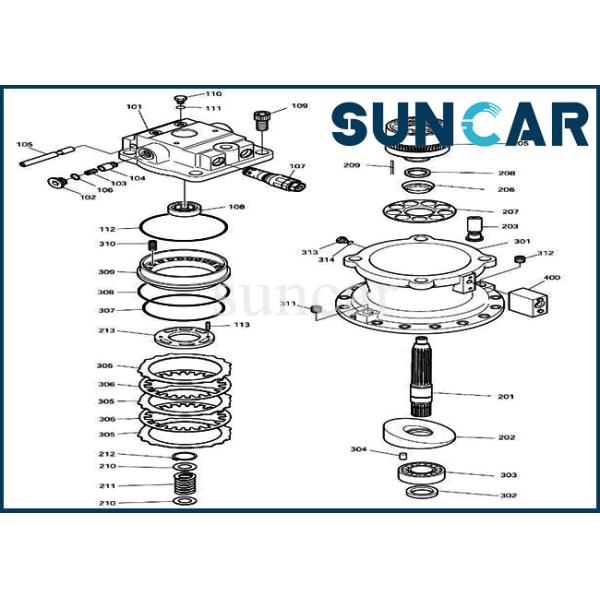

Related Parts:

Pos.Part NoQtyParts Name
*.K9008336[1]SEAL KIT;SWING MOTOR
*.K9001903[1]SEAL KIT;SWING MOTOR
-.K1000697A[1]SWING MOTOR
-.170303-00048[1]
101*NA00351[1]CASING;VALVE
1022.121-00009[2]PLUG
103K9001840[2]SPRING
104K9001841[2]PLUNGER
1051.420-00016[1]VALVE;SWING REACTIONLESS
105K9006899[1]VALVE;SWING REACTIONLESS
106S8000341[2]O-RING
1071.420-00111[2]VALVE;RELIEF
107K9008333A[2]VALVE,RELIEF
108S6005050[1]BEARING;BALL
109S2227561[4]BOLT;SOCKET
1102181-1950D1[2]PLUG
111S8000111[2]O-RING
112K9001842[1]O-RING
113S5741162[2]PIN;SPRING
201K9001843[1]SHAFT;DRIVE
202K9001844[1]PLATE;SWASH
203K9001845[1]PISTON & SHOE ASSEMBLY
205K9001846[1]BLOCK;CYLINDER
2061.148-00015[1]BALL;THRUST
2071.412-00092[1]PLATE;RETAINER
2081.114-00009[1]COLLAR
2091.109-00134[5]ROLLER
2101.114-00286[2]WASHER
2111.131-00048[1]SPRING
212S6510620[1]RING;SNAP
213K9001847[1]PLATE;TIMING
301K9001848[1]CASING
301K9001848A[1]CASING
302180-00219[1]SEAL;OIL
302K9006399[1]SEAL;OIL
303S6005090[1]BEARING;BALL
3041.123-00053[1]PIN,PARALLEL
305352-00014[3]PLATE,SEPARATION
306412-00013[2]PLATE,FRICTION
307180-00220[1]O-RING
308180-00221[1]O-RING
309452-00020[1]PISTON;BRAKE
310129-00062[18]SPRING;BRAKE
3112181-1116D4[1]PLUG
311181-00346[1]PLUG
3122181-1116D2[1]PLUG
3132181-1950D1[1]PLUG
314S8000111[1]O-RING
400420-00110[1]VALVE;BRAKE

Basic Requirements For Sealing Materials:

  • The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
  • Have certain mechanical properties, such as tensile strength, elongation, etc.;
  • Appropriate elasticity and hardness, small compression set;
  • High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
  • It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
  • Good oxygen resistance and aging resistance, durable;
  • Abrasion resistance, no corrosion to metal;
  • Easy to shape and process, low price.

Some Policies Regarding Product Ordering:

  • Payment Policy:

We accept PayPal, TT, Western Union.

  • Shipping Policy:

Usually ships within 3 business days of receiving the order.

  • Refund policy:

We allow product replacement, and returned items must be in brand new condition, unused, including original parts and labels. Shipping or any other related charges will be paid by the buyer. We do not accept returns if the item is installed or damaged for some reason.

  • Responsibility:

We are only responsible for the parts we sell. If there is any problem with the parts, we can accept returns, refunds or replacements, please understand that we do not compensate you for labor, trailers, repairs, rental costs or any other related costs.


Product Show:
