Pulse Air Cooled 7000mm/S Portable Laser Marking Machine For Food Packaging

Pulse Air-cooled 0-7000mm/s Portable Laser Marking Machine For Food Packaging Electronic Components

(Model:PEDB-400A)

★ Product Introduction:

Portable laser marking machine PEDB-400A is an advanced technology, stable performance marking machine. IPG fiber technology imported from Germany, more comprehensive function, more durable. Portable laser marking machine body compact compact, suitable for carrying, no matter any scene can be used, a wide range of use, to meet the various needs of customers.

★ Product Features:

1. Portable laser marking machine marking effect is clear, marking patterns will not be easily erased, suitable for all kinds of packaging marking.

2. Portable laser marking machine has high electrical and optical conversion efficiency and marking depth of up to 1mm.

3. Portable laser marking machine has high marking efficiency, which is 3~12 times that of the traditional first generation lamp pump marking machine and the second generation semiconductor marking machine.

4. Portable laser marking machine has a long service life, up to 10 years, no consumables in the process of marking, less power consumption, high cost performance.

5. Air cooling device provides better cooling effect, and the machine is more stable.

★ Application:

Portable laser marking machine can be used for electronic components, instruments and meters, hardware tools, auto parts, machinery parts, daily necessities, jewelry, food and beverage packaging.

★ Technical Parameters:

Model No	PEDB-400A	PEDB-400B	PEDB-400C	PEDB-400D
Type	Portable	Desktop	Colorful	Standby
Computer	Not includes PC			Includes PC

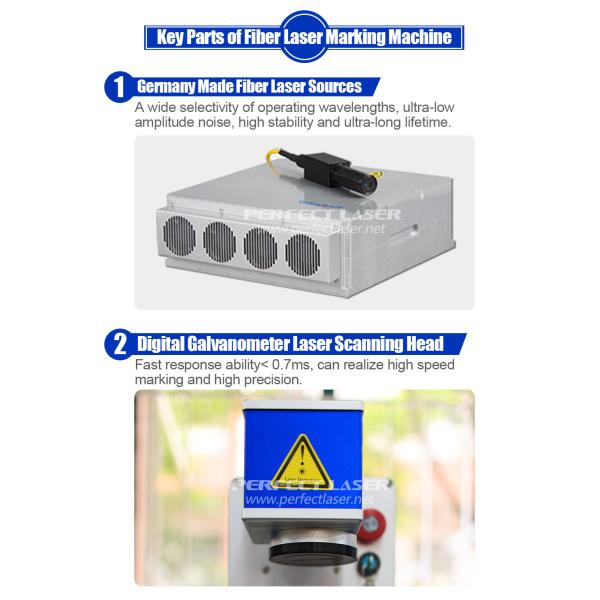

Laser Source
IPG Series	Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation	Pulsed
Polarization	random
Nominal average output power	20W - 50W For PEDB-400A /400B /400C 20W - 100W For PEDB-400D
Central emission wavelength	1064 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width(FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Net Dimensions	702050cm	803872cm	702050cm	14362101cm
Net Weight	44 kgs	53 kgs	44 kgs	130 kgs
Gross Weight	60 kgs	70 kgs	60 kgs	200 kgs
Laser system
Scanning Speed	0-10000mm/s
Marking Speed	0-7000mm/s

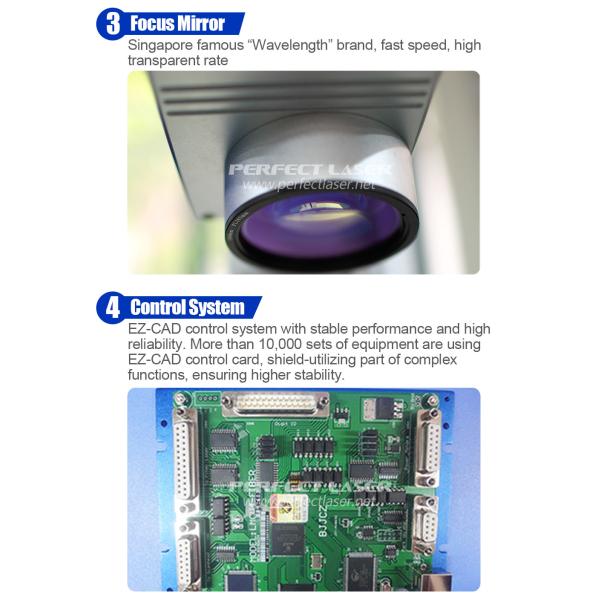

Marking size	110mm×110mm (F-theta 160)
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled

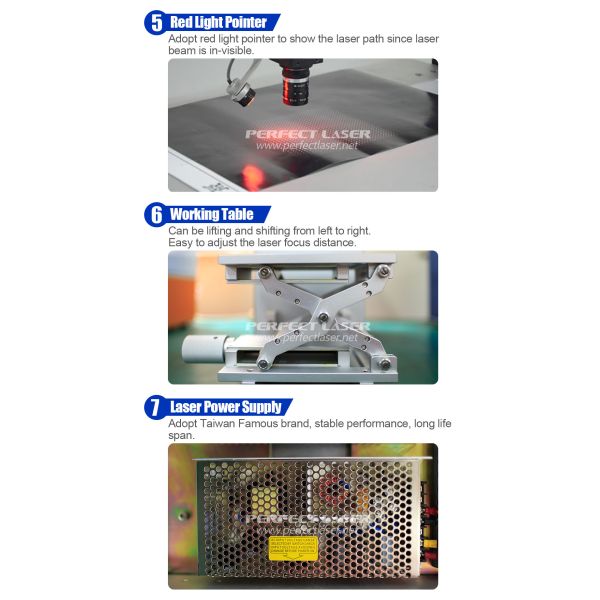

Red point laser	650nm, visible red light for marking guide
Continuous working time	≥16h
Humidity	45～85% (no condensation)
Operating temperature	0~40℃
Control units	Laser Mark (English Version)

★ Packaging & Delivery:

1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.

★Competitive Advantages:

1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
