| Categories | SMPM RF Connector |
|---|---|
| Brand Name: | ELT (Elite) |
| Model Number: | SSMP-KWF506-35 |
| Certification: | CE ROHS |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1,000,000pcs per month |
| Delivery Time: | Within 3 weeks |
| Packaging Details: | Standard Export Carton |
| Product name: | SSMP Connector |
| Gender: | Female |
| Material: | Brass |
| Plating: | Gold Plated/ Nickel Plated |
| Impedance: | 50Ω |
| Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* |
| Insulation Resistance: | ≥2000MΩ |
| Company Info. |
| Xi'an Elite Electronic Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Xi'an Elite Electronic designed the SSMP connector product line to further improve package density of RF/Microwave systems.
The SSMP interface is about 30% smaller than its predecessor, the
SMP connector.
Now an industry standard, the SSMP interface has enabled design
engineers to increase performance and complexity of their
designs while simultaneously improvingupon their form factor.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts | Brass/Kovar Gold plated Stainless steel Passivation | ||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
Related Products:
1.
| SSMP Female Cable Connector for 1#Semi-Rigid/Flex Flange Mount Type |
2.
|
3.
|
4.
| SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type |
5.
| SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type |
6.
| SSMP Male RF Connector for Cable CXN3506/MF108A Full Detent Connector |
7.

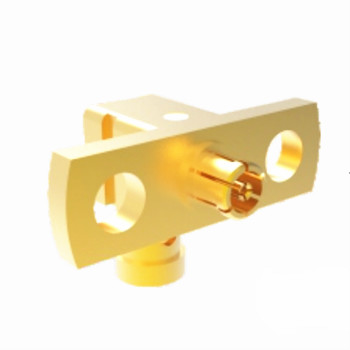

| SSMP Female Right Angle(RA) for CXN3506/MF108A with Active Flange Mounting Type |
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us
with your details.
|
