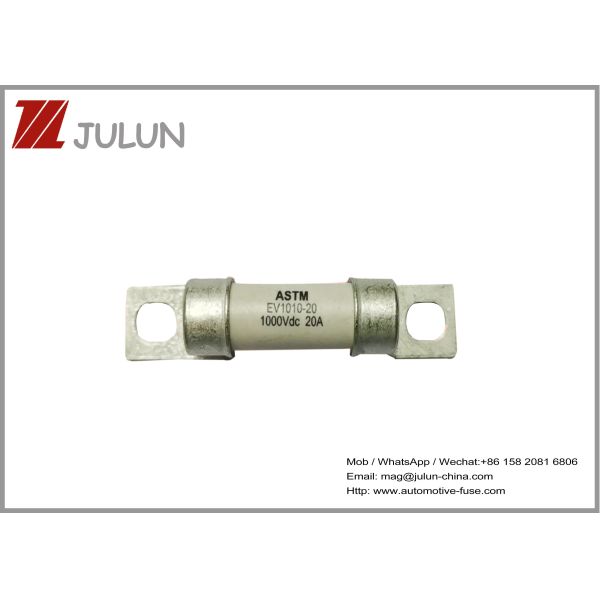

HEV Ceramic Automotive Fuses , Bolt Down 1000V Fast Acting Fuse

AUTOMOTIVE FUSE 1000Vdc For EV Or HEV Application Compact Bolt Down And Thru-Hole Terminals

1.Description

Ø General purpose fuse for EV/HEV

Ø Compact bolt down and thru-hole terminals

Ø 1000Vdc ideal for EV or HEV application

Ø Excellent DC performance

Ø Design refer to JASO D622:2006

1.Specifications :(‘YY’ means Assembly code )

*Temperature Rise :<=50K with 70% of rated current

** Typical pre-arcing I²t measured at 10In

3.Dimension (mm)

(1) Assembly Code ‘AP’/Ordering code ”EV1010-xxAP” 螺栓安装方式’AP’/订货编码”EV1010-xxAP”

(2) Assembly Code ‘BPL’/Ordering code ”EV1010-xxBPL” 螺栓安装方式’BPL’/订货编码”EV1010-xxBPL”

(3) Assembly Code ‘EP’/Ordering code ”EV1010-xxEP” 螺栓安装方式’EP’/订货编码”EV1010-xxEP”

(5) Assembly Code ‘FP’/Ordering code ”EV1010-xxFP”; PCB 引脚通孔焊接方式‘FP’/订货编码”EV1010-xxFP”

AUTOMOTIVE FUSE 1000Vdc For EV Or HEV Application Compact Bolt Down And Thru-Hole Terminals

JULUN is a professional supplier of safety and reliability solutions for electrical equipment. The innovative solutions designed by JULUN fully meet the professional needs of users in energy, transportation, electronics, chemical, pharmaceutical and processing industries to optimize their production processes.

JULUN's professional skills include:

· High performance materials and their solutions in high temperature environments

· Safety protection plan for new energy vehicles, motorcycles and solar photovoltaic

· Electrical solutions for generators and motors

· Power safety and reliability
