Double Convoluted Industrial Air Spring Firestone W01-M58-7532 Bead Rings Metric

Firestone W01-M58-7532 Bead Rings Metric Double Convoluted Industrial Air Spring

Cross Reference

Firestone: Style 29
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Firestone: Order No.:W01-M58-7532; W01 M58 7532; W01M587532; WO1-M58-7532; WO1 M58 7532; WO1M587532; w1-m58-7532; w01 m58 7532; 520217H-2,w01m587532

Rubber bellows only
Firestone:Order No.: W01-358-7902; 520217H-2,W01 358 7902; W013587902; WO1-358-7902; WO1 358 7902; WO13587902; w013587902; w01-358-7902; w01 358 7902

Specifications and Detailed Technical Parameters:AIRSUSTECH 520217H-2

Stainless Steel Bead Rings

When using bead rings, the customer will have to fabricate his own mounting plates. Stainless steel plates with the surface finishes described above should be used. styles that have stainless bead rings available.
Typical examples where bead rings are often used would be as follows:
1. Where parts are stacked to increase stroke.
2. Where parts are being used as a boot or flexible connector.
3. When used as an isolator with an auxiliary reservoir.
4. When air, or other media, must move in or out of the unit at an extremely fast rate.
5. When used with an internal shaft, to either guide the part or the pull rather than push a load.

Applications

Robotic coupling

Conveyor end stop

Mountain/Trail Bike

SHOCK ABSORBER TEST SYSTEM

SCREENING MACHINE COVER CLAMP

PIPE CRAWLER

DELICATE ELECTRONIC EQUIPMENT

VIBRATING SCREEN

SHEET WELDING CLAMP

SWASH PLATE MOTOR

PERFECT BOUND MAGAZINE CUTTER

WAVE POWER MODULE

CHECK VALVE LAPPING

SELF ALIGNING DEVICE

AIR BLAST GENERATOR

SOLAR TRACKER

Warning

Do not allow the threaded end of the bolt to extend beyond the bottom surface of the bead ring, damage to the rubber bellows will result and could cause premature failure.

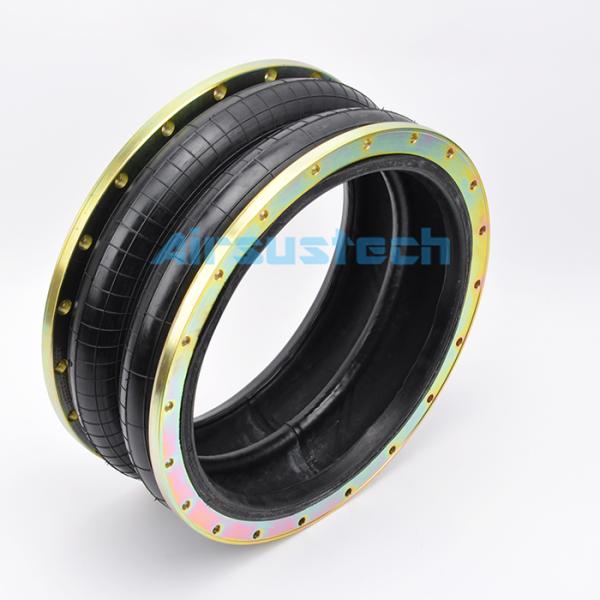

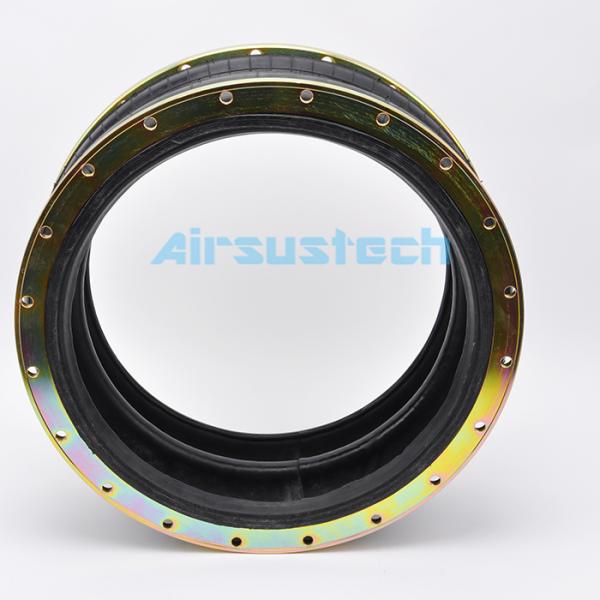

The related picture of 2H520217
