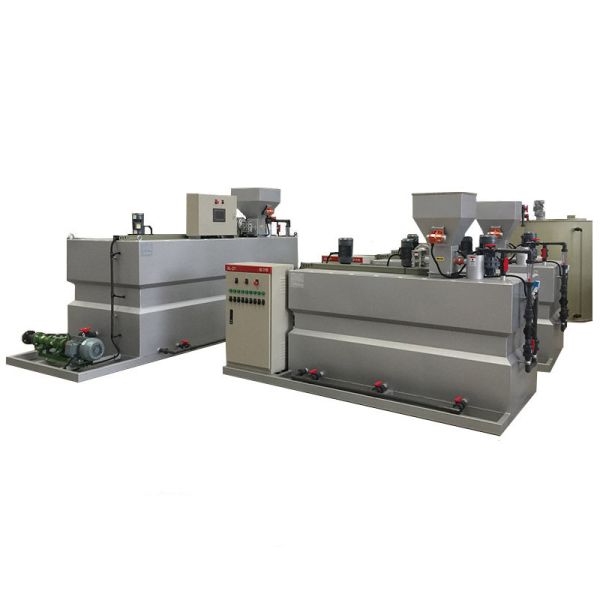

Three Chamber Integrated Automatic Dosing System PH Regulating Slow Release Agent

Three chamber integrated automatic dosing system PH regulating slow release agent dosing device

The dosing device is mainly used for the treatment of boiler feed water, circulating water, hydrazine and phosphate in power plants, as well as in petroleum, chemical, environmental protection, water supply systems and other industries. The user only needs to place the combined dosing device in the dosing room, connect the water inlet and outlet and connect the power supply to start and put it into operation. This factory integrated device can greatly reduce the workload of design and on-site construction, and provide a reliable guarantee for the quality, safety and on-site operation of the entire system.

Product Classification

The dosing device is a complete set of devices that inject chemical solution into various systems according to the process flow. The devices can be divided into three categories according to the use occasions.
1. Oilfield dosing device. It is mainly used to inject flocculants, scale inhibitors, corrosion inhibitors, demulsifiers and other pharmaceutical solutions into the wellhead and other systems on the platform during oil exploitation.
2. Boiler dosing device. It can be used to add ammonia and hydrazine to boiler feed water, add ammonia and hydrazine to condensate, add ammonia and hydrazine to boiler shutdown protection, and add phosphate to steam boilers, mainly for power plants and power stations.
3. Water treatment dosing device. In the process of water treatment, chemicals are added to tap water, waste water and sewage. It is mainly used for water supply and drainage treatment, environmental protection and other processes. Such as waterworks, hotels, restaurants, swimming pools, sewage treatment plants, etc.

Product composition

The dosing device takes the metering pump as the main dosing equipment, and assembles the dissolving tank, agitator, liquid level gauge, safety valve, check valve, pressure gauge, filter, buffer, pipeline, valve, base, ladder, automatic monitoring system, electric control system, etc. on a public platform according to the process requirements to form a module, namely the so-called skid mounted combined unit (hereinafter referred to as "skid").

Working principle

The quantitative agent is put into the mixing solution tank for mixing and dissolution through the device as required. After dissolution, it is sent to the dosing point through the metering pump. The dosage can be adjusted freely to meet the requirements of different dosage sites.

Product features

1. Highly integrated integrated equipment;
2. Fully automatic control function;
3. The equipment is small in size, simple in operation and convenient in installation. Only water and power are needed on site;
4. The liquid medicine mixer is made of stainless steel, and the dissolution effect is 100%;
5. Safe and reliable operation and stable performance;
6. It has good corrosion resistance and is made of engineering plastics and stainless steel in contact with the medium;
7. It is not only suitable for powder, fiber, materials that are difficult to dissolve, easy to agglomerate, and materials with high feeding requirements, but also suitable for the configuration and feeding of liquid materials;
8. High efficiency stainless steel special deceleration mixer to prevent macromolecular chain from breaking;

Parameters
