Carburized Barrel 4140 Material Plunger Srp Pump Oil Rod Pump

Carburized Barrel 4140 Material Plunger Sucker Rod Pump

Carburized pump barrel sucker rod pump description:

Rod pumps also are called insert pumps because they are run (inserted) in the production tubing.

Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes. Our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance,API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.

API sucker rod pump model is as follows,

API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

API pump parts technical table:

For small quantity, the packing style is packed by packing frame and plywood case outside.

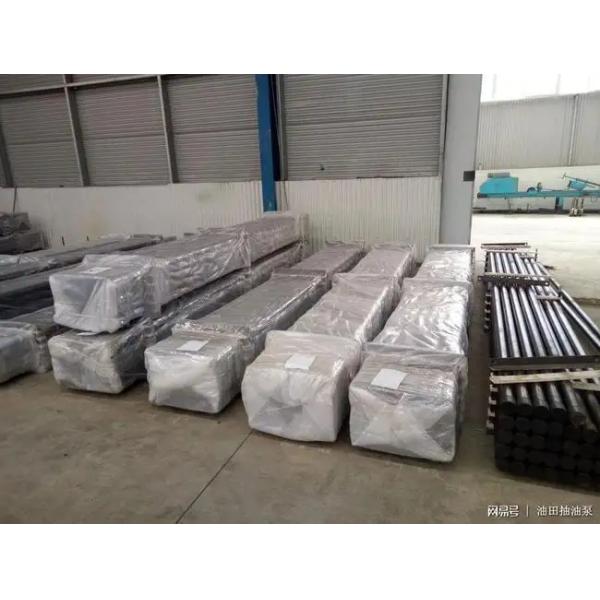

Delivery packing photo:

Puyang Zhongshi Group Co., Ltd., restructured from SINOPEC in 1997 has 20 years experience on manufacturing petroleum machinery products . The company registered capital is 10 million U.S. dollars, with annual export 30 million U.S. Dollars.

We have competitive price of our main products like: subsurface sucker rod pump, pumping unit, cementing tools, wellhead (Christmas Tree), etc, with certificates of API11AX,API11E,API6A,API5CT,ISO14001 and ISO9001 approved. We have 9 factories, 580 employees, including more than 160 technicians and engineers.

With 20 years manufacturing experience and more than 10 years exporting experience, our main clients include all oilfields in China such as: Zhongyuan, Daqing, Shengli, Changqing, Nanyang, Karamay, etc and we have exported to more than 30 countries abroad such as: Indonesia, Thailand, Myanmar, Russia, Kazakhstan, Venezuela, Peru, Columbia, Canada, America, Sudan, Egypt, Iran, Australia etc.

We would like to cooperate with friends from all over the world with high quality products and service to achieve mutual development .
