Stationary Sucker Rod Pump Heavy Wall Barrel Cup Anchor

Stationary Heavy Wall Barrel Cup Anchor Sucker Rod Pump

Stationary heavy wall barrel cup Anchor sucker rod pump description:

Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.

Pumps for sucker-rod lifted wells should be selected on the basis of numerous variables that are provided by the well, the operating conditions, and the life of the pump.

The main variables to consider are as follows:

• Well depth
• Bottomhole temperature
• Fluid viscosity
• Amount and size of particulates in the produced fluids
• Produced-fluids corrosivity
• Required production rate vs. pump capacity
• Fluid-specific gravity
• Casing/tubing size
• Well-completion type
• Gas/liquid ratio (GLR)
• Pump-intake pressure vs. fluid bubblepoint
• Spare/surplus pumps and components
• New purchase and repair costs

API parameters of pump parts:

.Features:

1. The operation is easier and quicker.
2. Extra small clearance between the plunger and the inside wall of the barrel.

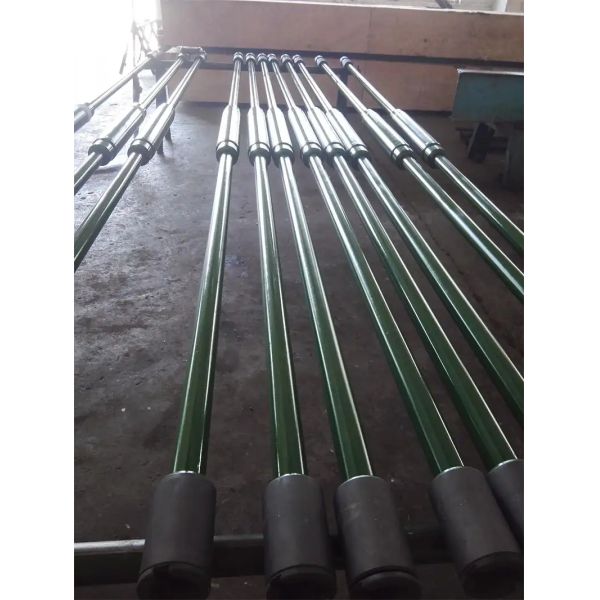

Photo for pump before packing:

Puyang Zhongshi Group Co., Ltd., restructured from SINOPEC in 1997 has 20 years experience on manufacturing petroleum machinery products . The company registered capital is 10 million U.S. dollars, with annual export 30 million U.S. Dollars.

We have competitive price of our main products like: subsurface sucker rod pump, pumping unit, cementing tools, wellhead (Christmas Tree), etc, with certificates of API11AX,API11E,API6A,API5CT,ISO14001 and ISO9001 approved. We have 9 factories, 580 employees, including more than 160 technicians and engineers.

With 20 years manufacturing experience and more than 10 years exporting experience, our main clients include all oilfields in China such as: Zhongyuan, Daqing, Shengli, Changqing, Nanyang, Karamay, etc and we have exported to more than 30 countries abroad such as: Indonesia, Thailand, Myanmar, Russia, Kazakhstan, Venezuela, Peru, Columbia, Canada, America, Sudan, Egypt, Iran, Australia etc.

We would like to cooperate with friends from all over the world with high quality products and service to achieve mutual development .
