Fj12032mab Compact Axial Fan With Metal Blades 120mm

Categories Electrical Switchgear Components
Brand Name: QIUPU
Model Number: Axial Flow Fan
Certification: TUV,UL,CE,CCC,RoHS
Place of Origin: WENZHOU,ZHEJIANG
MOQ: To be negotiated
Price: To be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000PCS/Month
Delivery Time: 7 Days
Packaging Details: CARTONS
Customized support: OEM, ODM, OBM
Electric Current Type: AC
Mounting: Free way
Voltage: 120V, 220V, 380V
sales Service Provided: Video technical support
Blade Material: Plastic
Withstand Voltage: AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Protection Grade: Impedance protection /IP44
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

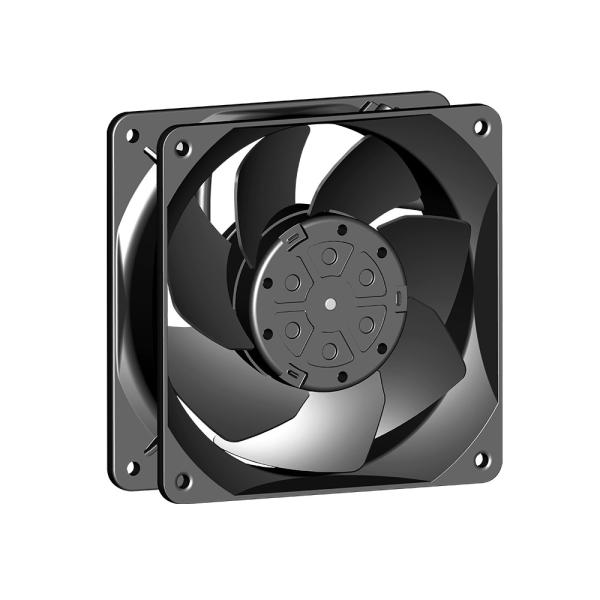

Fj12032mab Compact Axial Fan With Metal Blades 120mm

compact axial fan fj12032mab with metal blades 120mm

Technical Parameter

References are based on the frame dimension, which helps you to quickly select the best choice for your installation.

Example:

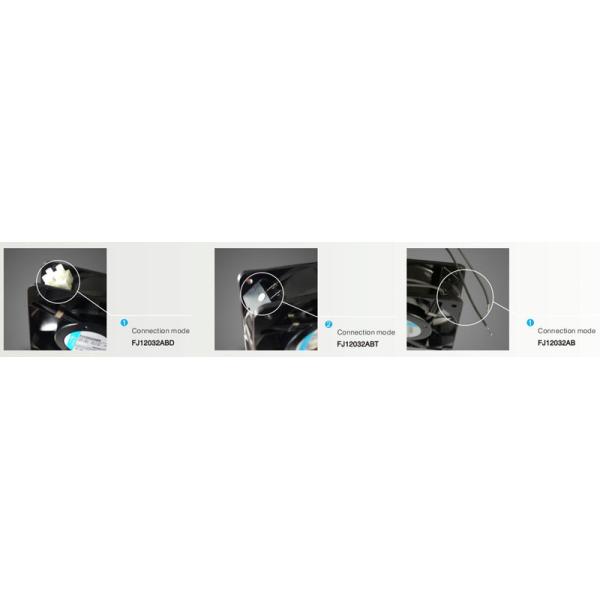

When your installation space is enough for dimention 120*120*38mm, please choose FJ1203

When you choose AC 220V, frame size 120x120x38mm, sleeve bearing, plug-in connection, please choose model FJ12032AST

We can customize your unconventional products.

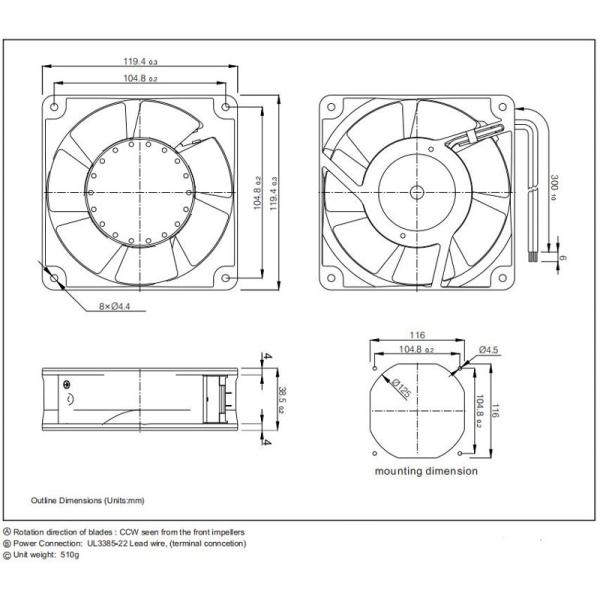

Frame
Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

Impeller
Black plastic PBT UL94V-0

Operation Temperature/Humidity Range: (under unconcretionary state)
-30℃ ~ +60℃ (temperature), 0% ~ 95% (himidity)

Protection
Impedance Protected

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation System
design according to IEC61858 Grade B,

Protection Grade
IP34

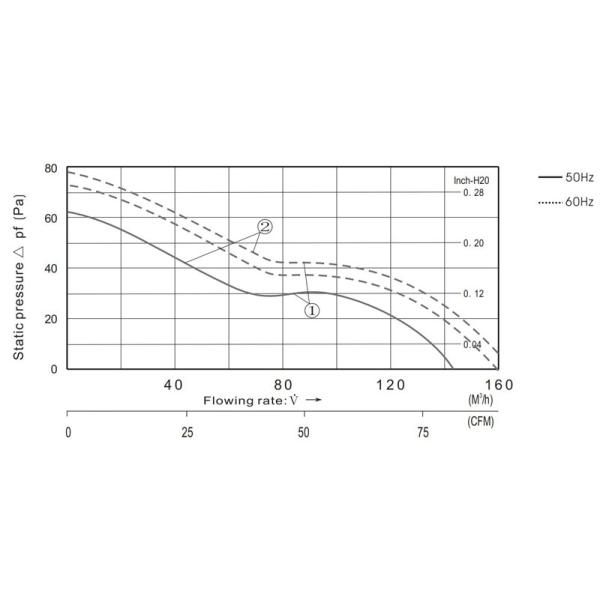

TypeMotorRated VoltageFrequencycurrentPowerSpeedMax Air FlowStatic PressureNoiseCurveCapacitor Motor
VHz(A)(W)+10%-20%(min-1)CFMm3/h(Pa)(dB)(μF)
FJ12031ASM2S6301-SB115500.24182500851455134-----
600.201528001001706337
FJ12031ABM2S6301-AB115500.24182500851455134-----
600.201528001001706337
FJ12032ASM2E6301-SB230500.12192500851455134-----
600.10142700951606337
FJ12032ABM2E6301-AB230500.12192500851455134-----
600.10142700951606337
FJ12033ABM2D6301-AB380500.07182500851455134-----
600.061628001001706337

Packaging & delivery

Selling Units:
Single item
Single package size:
25X25X20 cm
Single gross weight:
2.500 kg
Package Type:
 12PCS/CTN or 120pcs/pallet
Lead time:
Quantity(pieces)1 - 12 - 200201 - 1000>1000
Est. time (days)2712To be negotiated
