| Categories | Long Reach Excavator Booms |
|---|---|
| Brand Name: | ZHONGHE |
| Model Number: | 20-27T |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | 12600 |
| Payment Terms: | T/T |
| Supply Ability: | 50set one month |
| Delivery Time: | 15`20days |
| Packaging Details: | Plastic wrap and bubble wrap packing |
| Material: | Q355B |
| Size: | custom |
| Condition: | New long reach boom & arm |
| Warranty: | 1 Year |
| After-sales service provided: | Online support |
| Bucket capacity: | 0.4-0.5CBM |
| Company Info. |
| Kaiping Zhonghe Machinery Manufacturing Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

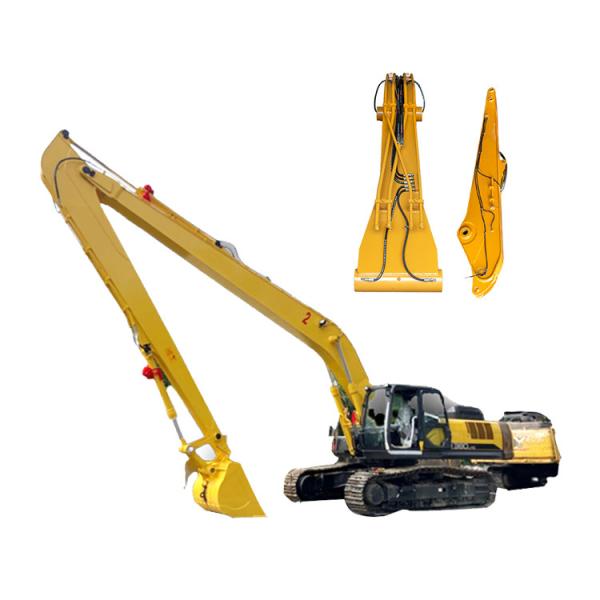

excavator long reach boom arm 8M 10M 15M 18M 20M 22M 24M 26M 28M for CAT SANY DOOSAN HYUNDAI KOMATSU KOBELCO
The video show of dipper arm extension
Product advantage of long excavator boom and arm:
01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°
The specification of excavator boom stick
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
The excavator boom and stick long introduce
The only disadvantage of the long reach excavator is the complex transportation process. Because it comes with long boom, the machine needs to be dismantled into smaller parts for more efficient transportation. The bigger parts are transported by separate commercial vehicles, while the excavator can travel by itself. The counterweight also needs to be transported separately, because it is very heavy. However, the long reach excavator is still a number one choice for many digging and demolition operations.
