10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear for Precision Machinery and Marine Industr

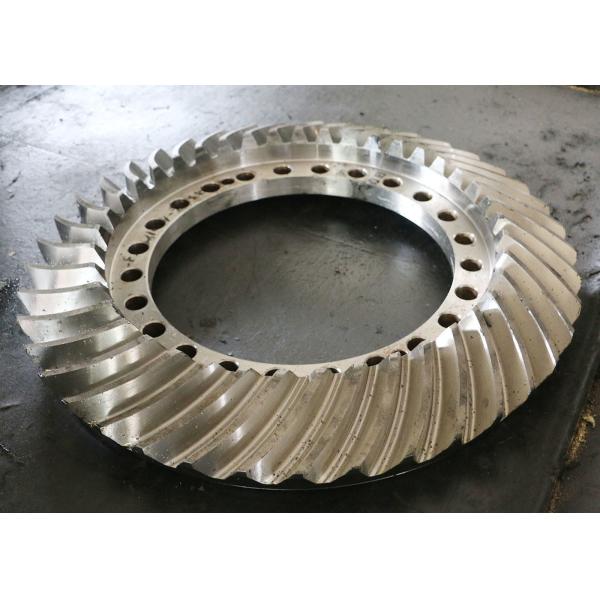

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear

1) Description of Spiral Bevel Gear

Spiral bevel gears are bevel gears with helical teeth positioned in a 90-degree angle. The teeth are designed with a slight curve to provide better flexibility and traction.
2) Feature of Spiral Bevel Gear

Spiral bevel gears are designed for applications that require high speed and high torque power. They can help cut consumer costs by providing long-lasting performance with minimal need for repairs or replacements. With spiral bevel gears, there is no need for offsets and a significantly reduced risk of overheating. Curved teeth and deeper traction between those teeth ensures greater asset availability to improve flexible performance and extend equipment life.

3) Working Principle of Spiral Bevel Gear

Based on the unique tooth profile parameters, during the transmission process, the teeth achieve a more uniform load distribution and better contact.

Through continuous tooth surface meshing, power is transmitted efficiently and smoothly, reducing energy loss and wear.

4) Application of Spiral Bevel Gear

In fields with high requirements for transmission smoothness and noise control, such as the transmission systems of high-end cars,

the main shaft drives of precision machine tools, and the propulsion systems of ships, spiral bevel gears play a crucial role with their excellent tooth profile design.

YIZHI MACHINERY which is equipped with a full range of machining capabilities to satisfy customer needs.

Our team has extensive experience in precision gearing systems for numerous industries. We have supplied gears for mining equipment, power tools, hydraulic pumps and the rail transit industry.

The feature products are double helical gear and precision spiral bevel gear, equipped with Hofler Rapid and helix grinding machines, Niles ZE and ZP grinding machines and Gleason Phoenix bevel gear grinding machines. This capability allows us to provide quality customs made gears to domestic and overseas markets.
