Die Casting Aluminum Housing Outdoor Led Garden Lights 30w 50w 100000 Lumen

Top quality Outdoor Led garden lights 50W Energy Saving High Brightness

Product Specification:

Product Description

Product Code	YAGD-01-50
Input Wattage	50W
Color Temperature	3000-6500K
Luminous Flux	5500-6500 lm
Input Voltage	AC90-305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
color rendering index	Ra≥70
Temperature of Working Condition	-40-50ºC
Humidity of Working Condition	20%-90%RH
LED Lifetime	50000h
Protection Grade	IP66
Installation Pipe Diameter	Ø50mm
Installation Height	6-8m
Net Weight	4.4kg
Gross Weight	5.2kg
Packing Size(mm)	390×390×150

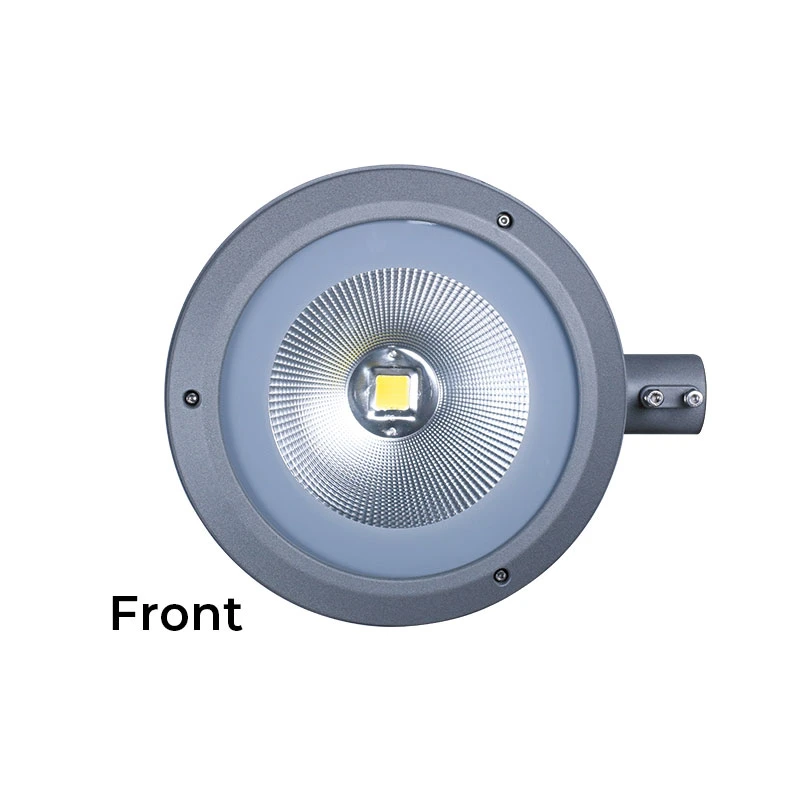

Detailed Photos

Streetlight Requirements - 5 years Warranty Product

S.No	Requirement	Requirement	Test Standard
Physical requirements
1	Housing type	Heavy-duty rugged pressure die-cast aluminium alloy	ISO 3522
2	Cover	Tempered Glass
3	Gasket	Silicon Rubber gasket
4	Housing wattage range	30W 40W 50W 60W 80W 100W 150W 200W 220W 240W
5	Socket Options	NEMA socket, Photocell, Smart controller, Shorting Cap
6	Stainless-steel components	Minimum 316L Grade 316L
7	IP Protection	IP66	IEC 60529
8	IK Protection	IK08	IEC 62262
9	Tool free opening	Tool-free access to gear compartment
10	Corrosion tests in artificial atmospheres - Salt spray tests	EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours	EN/ISO 9227
11	Vibration test	ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration	ANSI C136.31
LED and Optics
1	LED Make	Osram/CREE
2	LED Type	>2W High power LED with ceramic base (3V - Single chip die) >2w
3	LED driving current	<750mA
4	LED life	>100,000 hours @L95	LM80 and TM21
5	Optics Material	UV PC
6	Lighting distributions	Type I, II, III, IV
Thermal Requirements
1	Product ambient temperature range	-40°C to 55°C
2	Product Storage temperature range	up to 85°C
3	LED Case temperature (Tc)	<75°C @50°C ambient temperature	UL1598
4	Driver Case temperature range	<85°C @50°C ambient temperature	UL1598
Performance
1	Input Voltage Range	110V 120V 220V 270 305VAC - 50/60Hz	IEC 60598-2-3
2	Power Factor	>0.90	IEC 60598-2-3
3	THD	<20%	IEC 60598-2-3
4	Surge Protection	10KV
5	Dimming	1-10V or 1-10V+DALI
6	Appliance class	Class I or Class II	IEC 60598-2-3
7	CCT	3000K/4000K/5700K	ANSI C78.377A
8	CRI	>70Ra	ANSI C78.377A
9	MacAdam	<3 Step Binning	ANSI C78.377A
10	Product life	>100,000 hours @L80	TM28
11	Lumen efficacy As per LM-79	≥ 160lm/W (25°C ambient temperature)	LM-79
12	Lumen efficacy As per LM-82	Not more than 5% difference form LM79 result	LM-82
13	LED module connector and wire joint connectors	UL approved	IEC 60598-2-3
14	Electrical wires between Driver and LED modules and NEMA socket and driver	Must be UL approved	IEC 60598-2-3

Feature

.Die casting aluminum body with anti-corrosion treatment.

.Highly polished aluminum reflector.

.Toughened glass with good light transmition rate.

.IP66 Rated for external use

.Equipped with COB LED chip, generate high luminous flux

.LED emiiter brand can be varied according to requirement.

.High efficient and power factor LED power supply.

.Longlife span over 50000 Hours.

.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
