| Categories | Outdoor LED Street Lights |
|---|---|
| Brand Name: | Die Casting Man |
| Model Number: | YASL-19-80M |
| Certification: | CE, RoHs, ENEC, CB |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000PCS/Month. |
| Delivery Time: | 7-35 days base on order quantity |
| Packaging Details: | Carton box with foam |
| Power: | 80w 100w |
| Material: | Aluminum die casting body + tempered glass |
| CRI: | 70 80 |
| Color temperature: | 4000K 6500K 2700K |
| Installation pipe diameter: | 60mm |
| warranty: | 5years |
| Company Info. |
| NingBo Die-Casting Man Technology Co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
LED Street Light YASL-19
Product Specitication
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M | |||||||||
| Input Wattage | 50W | 60W | 100W | 200W | |||||||||
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | |||||||||
| Luminous Flux | 6500-7000lm | 13000-15000lm | 13000-15000lm | 26000-30000lm | |||||||||
| Input Voltage | AC90~305V | AC90~305V | AC90~305V | AC90~305V | |||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | |||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | |||||||||
| Temperature of Working Condition | -40~50ºC | -40~50ºC | -40~50ºC | -40~50ºC | |||||||||
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH | 20%~90%RH | |||||||||
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | |||||||||
| Protectin Grade | IP66 | IP66 | IP66 | IP66 | |||||||||
| Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | |||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60mm | |||||||||
| Installation Height | 4-6m | 5-8m | 6-10m | 8-14m | |||||||||
| Net Weight | 3.1kgs | 4.1kgs | 5.0kgs | 6.7kgs | |||||||||
| Gross Weight | 3.5kgs | 4.6kgs | 5.5kgs | 7.5kgs | |||||||||
| Packing Size(m m) | 580*250*165 | 630*280*155 | 670*310*155 | 820*340*155 | |||||||||

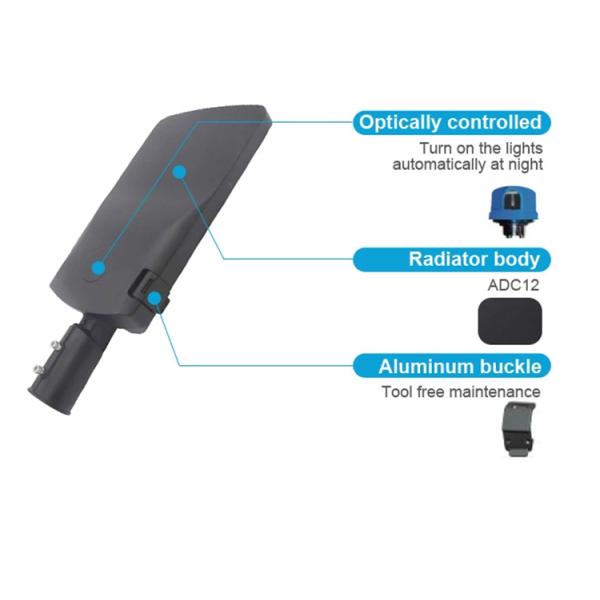

Detail picture
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M | |||||||||
| L(mm) | 459 | 577 | 627 | 768 | |||||||||
| W(mm) | 186 | 233 | 271 | 301 | |||||||||
| H(mm) | 119 | 103 | 103 | 104 | |||||||||
Streetlight Requirements - 5 Years Warranty Product
| S.No | Requirement | Requirement | Test Standard |
| Physical requirements | |||
| 1 | Housing type | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| 2 | Cover | Tempered Glass | |
| 3 | Gasket | Silicon Rubber gasket | |
| 4 | Housing wattage range | 30W 40W 50W 60W 80W 100W 150W 200W 220W 240W | |
| 5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | |
| 6 | Stainless-steel components | Minimum 316L Grade 316L | |
| 7 | IP Protection | IP66 | IEC 60529 |
| 8 | IK Protection | IK08 | IEC 62262 |
| 9 | Tool free opening | Tool-free access to gear compartment | |
| 10 | Corrosion tests in artificial atmospheres - Salt spray tests | EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours | EN/ISO 9227 |
| 11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration | ANSI C136.31 |
| LED and Optics | |||
| 1 | LED Make | Osram/CREE | |
| 2 | LED Type | >2W High power LED with ceramic base (3V - Single chip die) >2w | |
| 3 | LED driving current | <750mA | |
| 4 | LED life | >100,000 hours @L95 | LM80 and TM21 |
| 5 | Optics Material | UV PC | |
| 6 | Lighting distributions | Type I, II, III, IV | |
| Thermal Requirements | |||
| 1 | Product ambient temperature range | -40°C to 55°C | |
| 2 | Product Storage temperature range | up to 85°C | |
| 3 | LED Case temperature (Tc) | <75°C @50°C ambient temperature | UL1598 |
| 4 | Driver Case temperature range | <85°C @50°C ambient temperature | UL1598 |
| Performance | |||
| 1 | Input Voltage Range | 110V 120V 220V 270 305VAC - 50/60Hz | IEC 60598-2-3 |
| 2 | Power Factor | >0.90 | IEC 60598-2-3 |
| 3 | THD | <20% | IEC 60598-2-3 |
| 4 | Surge Protection | 10KV | |
| 5 | Dimming | 1-10V or 1-10V+DALI | |
| 6 | Appliance class | Class I or Class II | IEC 60598-2-3 |
| 7 | CCT | 3000K/4000K/5700K | ANSI C78.377A |
| 8 | CRI | >70Ra | ANSI C78.377A |
| 9 | MacAdam | <3 Step Binning | ANSI C78.377A |
| 10 | Product life | >100,000 hours @L80 | TM28 |
| 11 | Lumen efficacy As per LM-79 | ≥ 160lm/W (25°C ambient temperature) | LM-79 |
| 12 | Lumen efficacy As per LM-82 | Not more than 5% difference form LM79 result | LM-82 |
| 13 | LED module connector and wire joint connectors | UL approved | IEC 60598-2-3 |
| 14 | Electrical wires between Driver and LED modules and NEMA socket and driver | Must be UL approved | IEC 60598-2-3 |
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
Packing way
|
