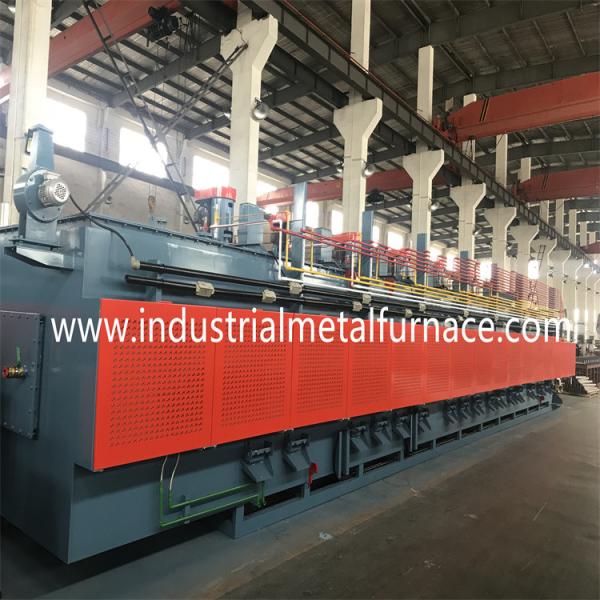

180kg/H Electric Mesh Belt Furnace For Melting Brass

High Quantity 40400 Electrical Heating Continuous Mesh Belt Furnace

1.The heat treatment furnace line is comprised of :

Quenching Furnace → Quenching Cooling Tank → Post Degreasing

and Cleaning Tank → Continuous Hot Air Tempering Furnace →

Automatic Temperature Control Panel.

(1) total power: about 170KW (including auxiliary power);

(2) total length: about 23 meters;

(3) total weight: about 22000kg;

2D. main technical parameters of conveyor mesh belt furnace

Capacity: quenching and tempering is about 130-180kg/h, carburizing is

about 60-120kg/h, and the output varies with the shape, size and stacking

of the workpiece. Work parts: hardware tools, standard parts, etc.

3. Technical Specification Per Unit

Quenching Furnace　　

3-1. Specification

4.Quenching Tank

4-1. Specification

4-1-1 mesh belt furnace: B=600mm Material:204, 1pc, ¢1.6*¢1.6*hem 30 05075-AL

4-1-2 Transmission: N=1.5KW, I=450, P=25.4 All, Nanfang motor + Xintao reducer

(including torque limiter);

4-1-3 Cooling pump: 5.5HP×3”, 1 set, Shanghai Jiajin;

4-1-4 Circulating pump: 5.5HP×3”, 1 set, Shanghai Jiajin;

4-1-5 Plate heat exchanger: (20m²) ,1 set, Yuanxiang heat exchange;

4-1-6 The lifting strip is made of aluminum alloy, 1 set, Wondery made;

6.Post degreasing and cleaning tank

6-1. Specification

6-1-1 Mesh belt: Material: W=400mm, 1PC, ¢1.6*¢ 2.0 hem 30 05075-AL;

6-1-2 Transmission: N=0.75KW, I=450, P=19.05 1 pc, Nanfang motor + Xintao reducer

(including torque limiter);

6-1-3 Spray pump: N＝2.2kw,1 pc, Jiajin;

6-1-4 Oil water separation motor: N=0.10KW, 1 set, customized;

6-1-5 Electric heating: N = 18.9KW, 3 pcs, Customized;

Tempering Furnace

7-1. Specification

7-1-1 Working temperature: ≤ 650 ℃;

7-1-2 Rated heating power: about 80-95KW;

7-1-3 Number of heaters: 81 sets;

7-1-4 Number of zones: 3 zones;

7-1-5 Heating furnace length: 6000mm;

7-1-6 Exit rack length: 1000 mm;

7-1-7 Mesh belt width: B＝600mm (SUS304 material);

7-1-8 Total weight of furnace body: about 7 tons;

7-1-9 Total width of furnace body: About 1825 mm;

7-1-10 Transmission: N= 0.75KW, I = 1800, P = 25.4;

7-1-11 Fan: N= 3－1.5kw;

7-1-12 Furnace temperature uniformity: ± 6 ℃;

7-1-13 Temperature control accuracy: ± 1 ℃;

7-1-14 Furnace wall temperature: ≤ 40 ℃ + room temperature (transmission side);

Electrical Control

8.Main components

9.Single point O2 carbon concentration automatic control system

Voltage 220-380v × one Ф× 50HZ;

1. C.P carbon potential controller, 1 pc;

2. Air pump: 2 sets; Reference air flow meter: 1; Carbon burning air flowmeter: 1.

3. Recorder: 1 set;

4. Flow control solenoid valve group: 1 group;

5. Oxygen probe Ф 27m/m × 600m/m: 1pc;

6. Air piping: 1 pc;

7. Electrical wiring: 1 pc;

10 On-site Work

1 pipes: the pipes for the continuous belt furnace are prepared by the buyer, but are arranged

according to the instruction of the seller.

wiring: The wires between the cabinet to each equipment section are provided by

the buyer, but are connected according to the instruction of the seller.

3 painting; the electrical resistance furnace is painted with deep color.

pipe connection: The exhaust pipes are prepared and self-designed by the buyer starting from the

point of connection flanges of the equipment.
