Precision High Voltage Power Resistor Non -Inductive With Low TC

Precision & Non-Inductive High Voltage Power Resistor With Low TC Precision High Power Resistors

Structure :

1.Screen printing,resistor film printed layer with thickness of tens of microns,sintered at temperature.

The matrix is 95% aluminum oxide ceramic,with good thermal conductivity and high mechanical strength.

The resistor film with precious metal ruthenium slurry,with stable electrical properties.

2.Technological Process:electrode printing electrode sintering resistor printing resistor sintering medium printing ,medium sintering,then resistance adjustment,welding,encapsulation and other processes.

Features:

1.Work under continuous high voltage environment .
2.Non-Inductive,Resistance-high voltage,small size,high power,moisture resistance,high stability .
3.Lead Material:screw end caps ;

Specifications :

Applications:

Widely used in high voltage power equipment,medical CT and X-ray machines,high voltage testing equipment,high voltage power supply,vacuum equipment,high voltage frequency converter,voltage divider,high voltage circuit,capacitor discharge circuit,high voltage buffer circuit,environmental protection equipment,electrostatic dust removal equipment,power system,high voltage instruments and meters,pulse modulator,imaging equipment,etc.

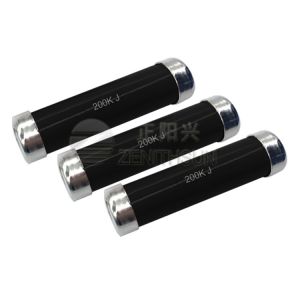

Product Image:
