SA179/192 Boilers Serpentine Tube Steam Superheater Tube Rustproof

SA179/192 Boilers Serpentine Tube Steam Superheater Rust-Proof

Superheater&Reheater, Custom Component For Boiler Superheater coil

Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.

Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.

From the thermal circulation in power station, the original parameters of pressure and temperature is higher, the thermal efficiency of circulation is better, or the steam humidity of the steam turbine rear is too high, influencing its safety. While the superheaer steam temperature is limited by metal materials, at present, due to limitation of metal materials, superheated temperature for most power station boilers are still within the range of 540-555 dgrees, and to avoid the steam humidity of blade of steam turbine rear too big, thus middle reheating system is applied.

ASME certificate boiler parts boiler superheater China factory direct sell:

1) Both Radiant-Convective and 100% Convective Available

2) Assemblies Completely Self-Supporting (No Intermediate Support Brick Required

3) All Elements of Equivalent Length Ensuring Balanced Flow

4) Conservative Velocities Inside Tubes Assure Positive Cooling at All Loads

5) Fully Drainable

Super heater types:
1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
Parameters that increases the convection

a. Increasing the fuel-and air flow (combustion gas flow)
b. Increasing the mass flow rate of the steam

Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.
Radiant super heater
They are placed exposed to the heat source whcih requires the improvement of metal temperatures.

Radiant and convetive super heaters and reheaters are used for high temperature steam.
The accessory of high temperature radiant steam super heater in boiler

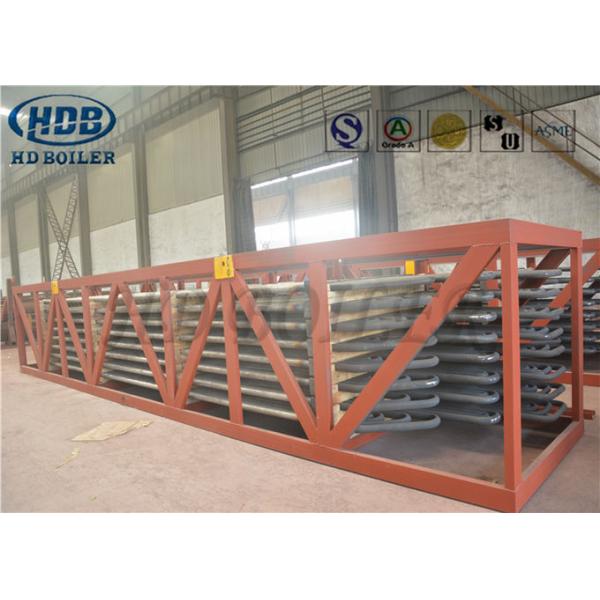

It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.

Reheaters
They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

Application:
Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.

What are the differences of Superheater And Reheater?

Details

Design structure

1. heating saturated steam, temperature up to 900 degree C.

2. high efficiency, >90%.

3. high speed heating.

4. design with stainless steel.

5. long design service life, 15 years.

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.

The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.

Location:

Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi.

The traffic is very convenient.

Staff:

About 600 employees, including 150 technicians.

Strategy:

We strive to provide the top grade quality products and best services to the customers. Keep developing the new products which are energy saving, environment protective and keep investing for the new equipments and new technologies.

Supplying ability:

10000MT per month for the tubes and pipes

5000MT per month for the steel plates

Global cooperation partners:

Covanta, Foster Wheeler, RCR Energy, ALSTOM, POSCO, Dongfang Electric, Shanghai Electric, China Huaneng, China Guodian, China Datang Corporation, Huaguang Boiler, Haerbin Boiler, Dongfang Boiler, Hangzhou Boiler, Bao Steel, Tisco, Shagang Steel......

Our products' quality is ensured by advanced, excellent facilities and manufacturing equipment. We have introduced many advanced processing and inspection equipments, including plasma cutting machine, NC drilling equipment, automatic welding system, welding equipment and real-time online imaging detection system, etc., which successfully ensure excellent quality of our products.
