RFID 4G WiFi AC EV Charger Wall Mount 7kw

RFID 4G WiFi AC EV Charger Wall Mount 7kw

RFID 4G WiFi AC EV Charger Wall Mount 7kw
RFID 4G WiFi AC EV Charger Wall Mount 7kw
Categories AC EV Charger
Brand Name: Hongshunjin
Model Number: GS7-AC-B01-NK
Certification: CE,ROHS.FCC
Place of Origin: Sichuan,China
MOQ: 1 pieces
Price: $268.35-$295.15
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 1000 Set/Sets per Week
Delivery Time: 3-30 work days
Packaging Details: L175xW80xH55mm
Impact Protection: K08
OCPP: OCPP 1.6 Json (OCPP 2.0 Optional)
Output Power: 7Kw
Warranty: 1 Year
RCD: 30mA Type A+6mA DC
Connector: Type2 Plug
Contact Now
Company Info.
Sichuan Hongshunjin Trading Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

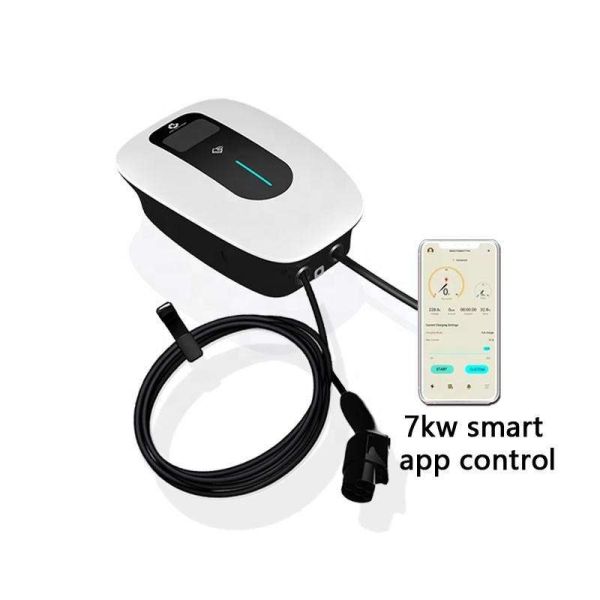

RFID 4G WiFi AC EV Charger Wall Mount 7kw

7kw Wall-mounted Charging Stations OCPP 1.6 Json RFID Wi-Fi 4G Type2 Plug


Aobut us


Our company now has a number of invention patents and general new patents, the company is committed to research and development production with independent property rights "and" EV "brand" and "when gb/Europe standard American standard ac and dc and surface charge gun, charger, charging pile, electric vehicles, such as high pressure, we have formed the service system, including product design, research and development of precision production structure, timely delivery and other domestic purchase products precision production , with strong product research and development ability, efficient control production ability and good customer cooperation ability, we cooperate with many well-known domestic automobile enterprises, social enterprises, operators.


1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications


product details

Data
Model
GS7-AC-BO1
GS11-AC-BO1
GS22-AC-BO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS



PEN Fault Detection


-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.



Packing & Delivery

FAQ


Q1. What is your terms of packing?
A: Generally, we pack our home used 7.2kw ev charger in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the 32A EV Charger in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: We always delivery our 1p ev charger 32A for EXW, FOB, CFR, CIF, DDP.

Q3. How about your delivery time?
A: Generally, it will take 10 to 14 days to arrange delivery wall mount 7.2kw ev charger after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?
A: We can supply the sample( home used 32A 7kw ev charger) if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. build the molds and fixtures.
