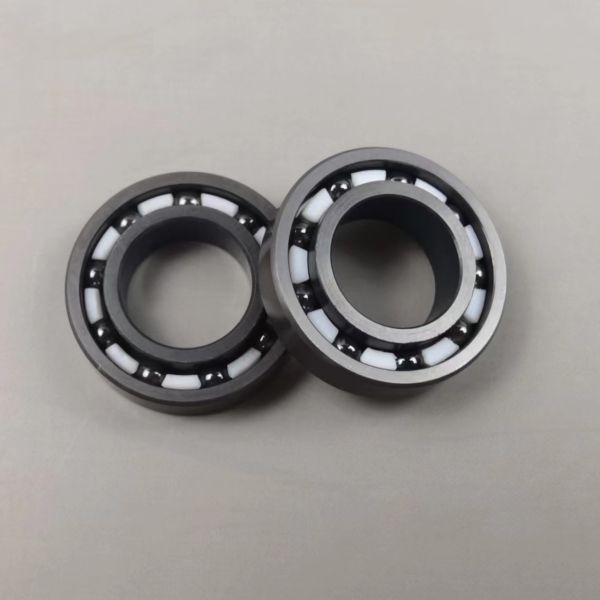

6902 Ssic / Si3n4 / Zro2 High Speed Ceramic Bearings P6

Ceramic Ball Bearing 6902 In Material Of SSiC/Si3N4/ZrO2

Description of Ceramic Bearing 6802:

1. SSiC races and balls are made of highly purified, sub-micron silicon carbide material. We sintered the silicon caibide with pressureless sintering method, so SSiC material have well corrosion resistance, high strengthm high hardness, wear resistance and small friction coefficient, antioxidant, small creep high temperature and good heat stability.

2. Si3N4 races and balls are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.Compared with GPS sintered silicon nitride material, the porosity, wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved, which is the preferred material for ultra-high speed and high precision ceramic bearings.

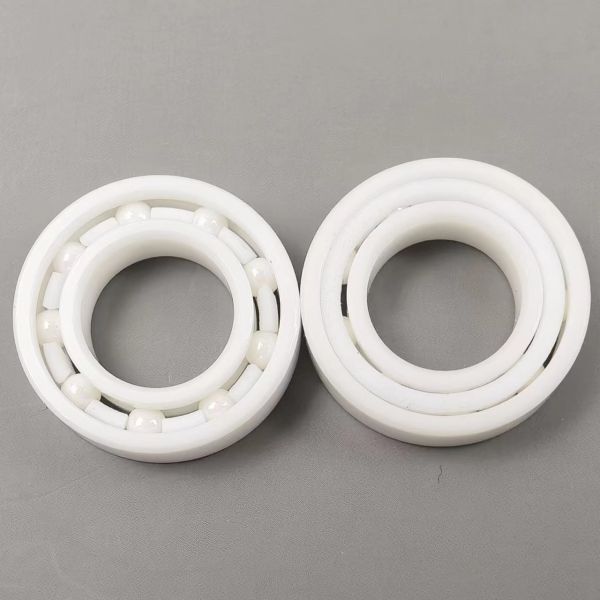

3. ZrO2 races and balls are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved. ZrO2 all ceramic bearings is a kind of special bearings through full grinding, with high precision and a variety of excellent performance and is one of the most widely used ceramic bearings.

4. The material of cages can be chosen among Peek, Teflon, PFA and other material you required. PEEK and Teflon material both have good chemical stability, are resistant to many kinds of acid and alkali corrosion and high temperature resistant.

Material properties of our ceramic material:

Performance reference data of 6902:

  Beijing Zhongxing Shiqiang Ceramic Bearing Co., Ltd., founded in 2005, situated in No. A38 Weishanzhuang Industry District, Daxing District ,Beijing, is the first company in China to invent and manufacture rare-earth ceramic bearings. The rare-earth ceramic bearings have characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, high temperature resistance, wear-resistant, dimensional stability at high temperature, etc. They can be used in worse lubrication working condition with a long operating life, thus it is a new kind of high-tech products material, with great social and economic value.

  Besides, the founder of the company started theoretical research and process development on ceramic bearings as early as 1982, and obtained two national invention patents in 1992/1994 (Patent No. ZL92114993X for rare-earth ceramic bearings and Patent No. ZL94106294.S for ceramic ball processing technology).

  At present, our company mainly produces ceramic bearings, sliding bearings, ceramic balls and ceramic industrial parts. The production materials are high performance ceramic materials, mainly SSIC, Si3N4, ZrO2, Al2O3.

  The advantage of our company is that we have specialized production line for high precision ceramic balls, and we can produce customized GPS (Gas Pressure Sintering) and HIP (Hot Temperature Isostatic Pressing) sintered Si3N4 balls and ZrO2 balls. The quality of our products is equivalent to ASTM F2094 F2094M-08 standard class I and II materials, and the precision grade reaches international standard G3, G5, G10 ceramic bearing balls, etc. Please note that the most of equipment used in our production and testing process are from Mitsutoyo Japan, and the hot isostatic sintering furnace is from ABB Sweden, therefore, the quality of our products is absolutely superior. And we are confident that you will be satisfied with our products.

  In 2017, Liaoning Zhongxing Shiqiang New Material Co.,Ltd., was founded, situated in 571 Jianshe Road, Jingkai District, Anshan City, Liaoning Province. The company mainly produces sliding bearings as well as pump accessories. And the pump accessories are mainly sold in domestic famous pump manufactures.

  In 2020, Zhongxing Shiqiang Technology (Tianjin) Co., Ltd., was founded, situated in No.41 Guangyuan Road, Wuqing District, Tianjin. The company mainly produces rolling bearings as well as ceramic balls, and its productions are competitive in the international market.

  Why choose us

  With years of development and improvement, the company has formed a professional team from research and development, production, technology, inspection and after-sales service. And in order to ensure that the interests of customers are maximized, all productions have to pass strict inspection before they go out.

  For more than ten years, our ceramic bearing products have been exported to all over the world, such as the Germany, Britain, Japan, Italy, Switzerland, and the Netherlands, and have won a good reputation from our customers. Our friends are all over the world. Our company welcomes customers at home and abroad to come to consult us.
